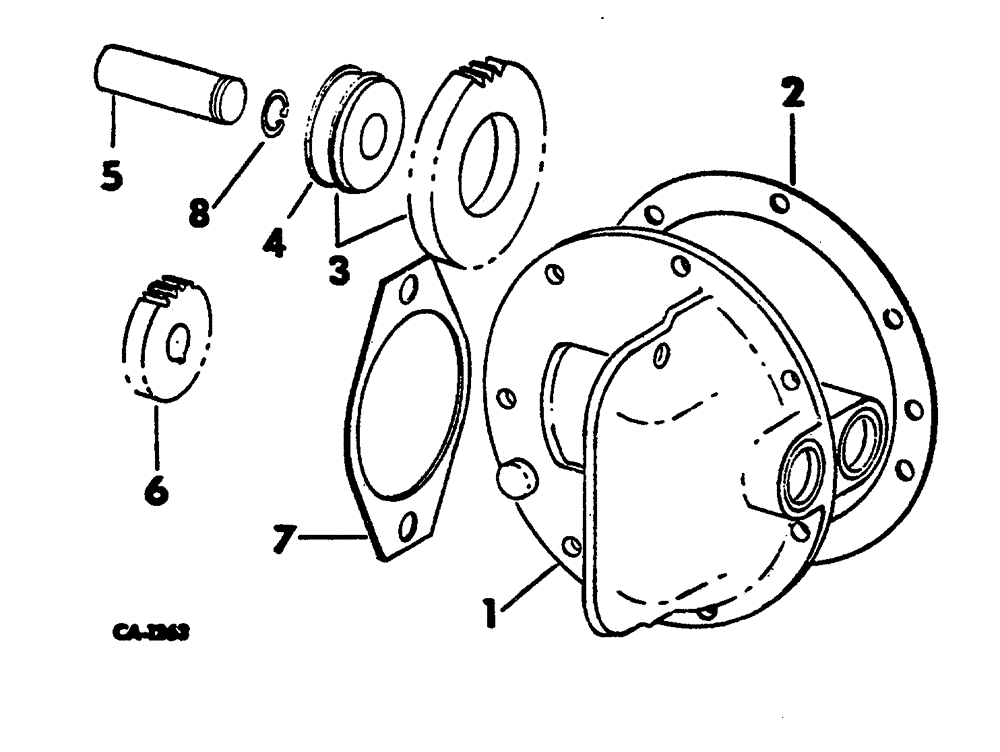

Запчасти Case 3400 (074) - SIDE MOUNTED HYDRAULIC PUMP DRIVE (35) - HYDRAULIC SYSTEMS

1

528644R1

HOUSING ASSY.

HYD pump mounting

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

2

528650R1

GASKET

HYD pump mounting housing

1шт.

3

528646R11

GEAR

ASSEMBLY, HYD pump idler

1шт.

4

528647R91

BALL BEARING

HYD pump idler gear OPT

1шт.

4

531795R91

BALL BEARING,25 mm ID x 62 mm OD x 1"

BEARING, HYD pump idler gear

1шт.

5

528648R1

SHAFT

HYD pump idler gear

1шт.

38-31632

PIN,1/4" x 2", Coiled

1/4" x 2", Type A

1шт.

6

528652R1

GEAR

side pump driven

1шт.

21121R1

LOCK NUT,1/2"-20, GB

nylon insert hex, 1/2-20

1шт.

7

538898R1

GASKET

HYD PUMP

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

hex HD CAP, 1/2-13 x 2

2шт.

103323

LOCK WASHER,1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

8

515440R1

SNAP RING,#98, Ext

Ring, Snap, , gear #98, Ext

2шт.
