Запчасти Case 33 (230) - D26842 BACKHOE STABILIZER SECTION

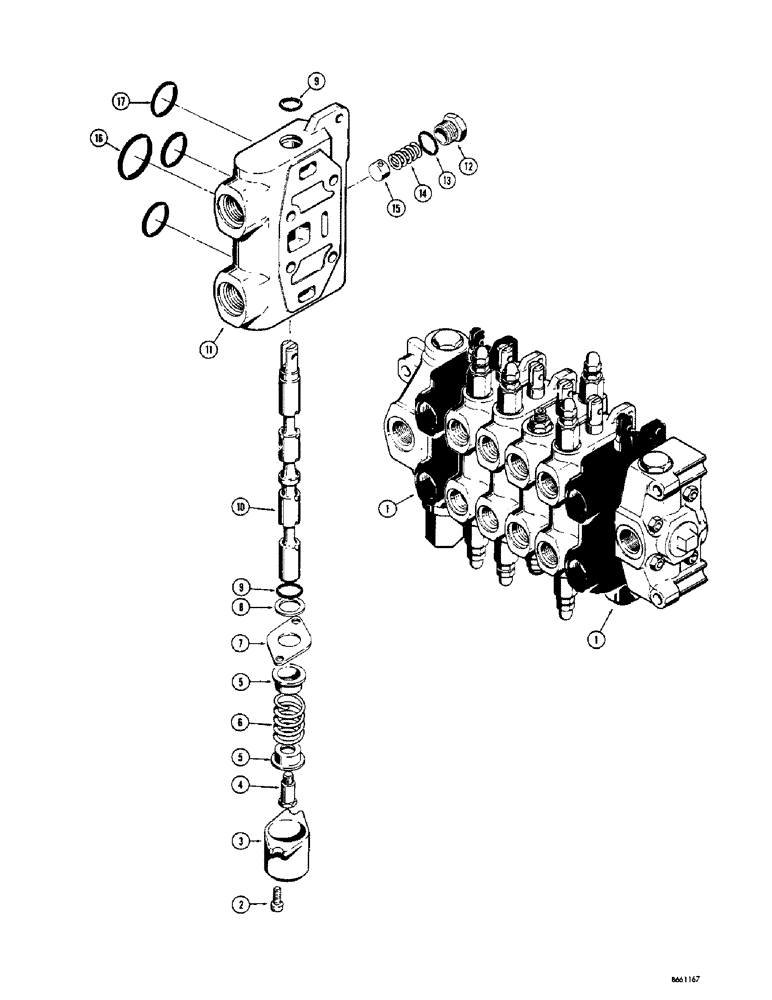

Схема запчастей Case 33 - (230) - D26842 BACKHOE STABILIZER SECTION

Артикул

Название

Примечание

Количество

1

D26842

ELEMENT

STABILIZER SECTION - backhoe control valve, Includes: Ref. 2 - 17

2шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHMS - 1/4" - 20 NC x 3/4"

2шт.

3

D26823

CAP

- stabilizer section

1шт.

4

D26833

BOLT

- stripper, special

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D40201

SPRING

- centering

1шт.

7

D26830

PLATE

- retaining

1шт.

8

D26829

RING

- backup

1шт.

9

D36830

RING

SEAL - quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - stabilizer section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - stabilizer section

1шт.

12

D30696

CYLINDER END CAP

CAP - check valve

1шт.

13

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

14

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

15

D26824

SPOOL

POPPET - check valve

1шт.

16

905952R1

COTTER PIN,M3.2 x 50

SEAL - "O"ring, 1-9/16" I.D. x 1-3/4" O.D.

1шт.

17

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

SEAL - "O"ring, 1-5/16" I.D. x 1-1/2" O.D.

3шт.

Выбрано товаров: 17
