Запчасти Case 33 (226) - D39047 AND D51303 BACKHOE CONTROL VALVES

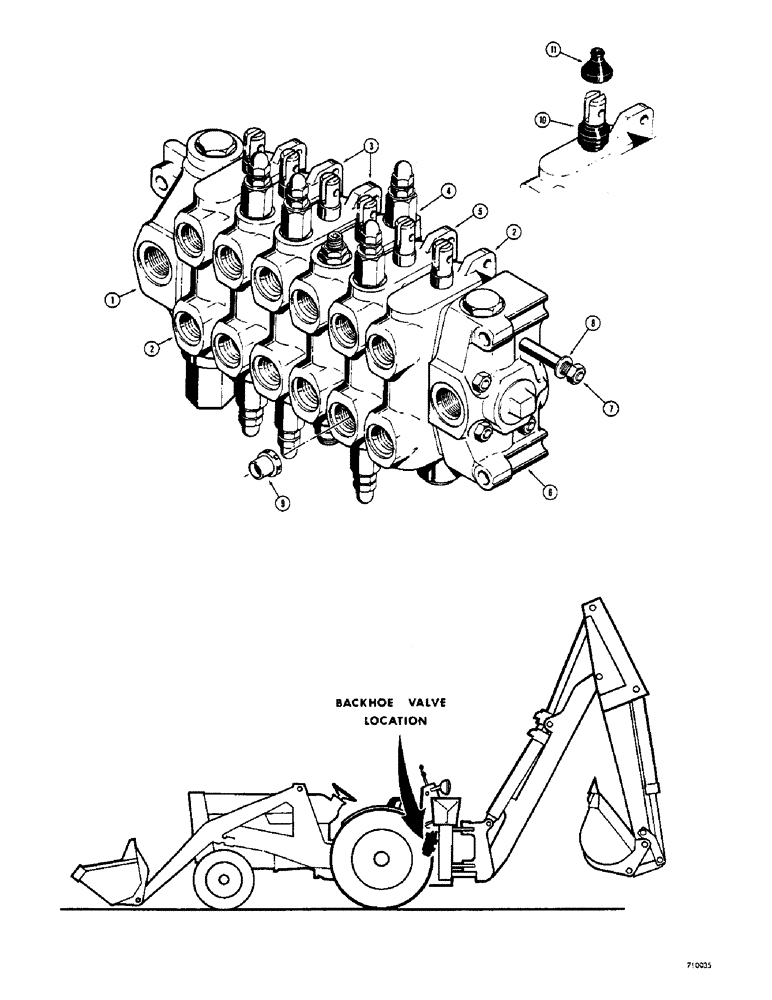

Схема запчастей Case 33 - (226) - D39047 AND D51303 BACKHOE CONTROL VALVES

Артикул

Название

Примечание

Количество

D39047

VALVE

- backhoe control (Used before backhoe SN 4176351), Includes: Ref. 1 - 8

1шт.

D51303

VALVE

- backhoe control (Used on backhoe SN 4176351 and after), Includes: Ref. 1 - 8

1шт.

1

D37146

KNIFE SECTION

OUTLET SECTION - backhoe control valve (Parts list Figure 228)

1шт.

2

D26842

ELEMENT

STABILIZER SECTION - backhoe control valve (Parts list Figure 230)

2шт.

3

D40750

SECTOR

BUCKET AND CROWD SECTION - backhoe control valve (Parts list Figure 232)

2шт.

4

D40749

SECTOR

SWING SECTION - backhoe control valve (Parts list Figure 234)

1шт.

5

D40748

SECTOR

BOOM SECTION - backhoe control valve (Parts list Figure 236) Used with D39047 control valve only

1шт.

D40748 is 1250 PSI

1шт.

5

D51508

ELEMENT

BOOM SECTION - backhoe control valve (Parts list Figure 236) Used with D51303 control valve only

1шт.

D51508 is 1000 PSI

1шт.

6

D37349

KNIFE SECTION

INLET SECTION - backhoe control valve (Parts list Figure 228)

1шт.

7

D26846

STUD

ASSEMBLY - backhoe control valve

4шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

9

D27565

VALVE

RESTRICTOR - boom drop, D40748 boom section only

1шт.

10

D42631

BELLOWS

- valve spool, service option

6шт.

11

D52811

SHIELD

- spool bellows

6шт.

Выбрано товаров: 16
