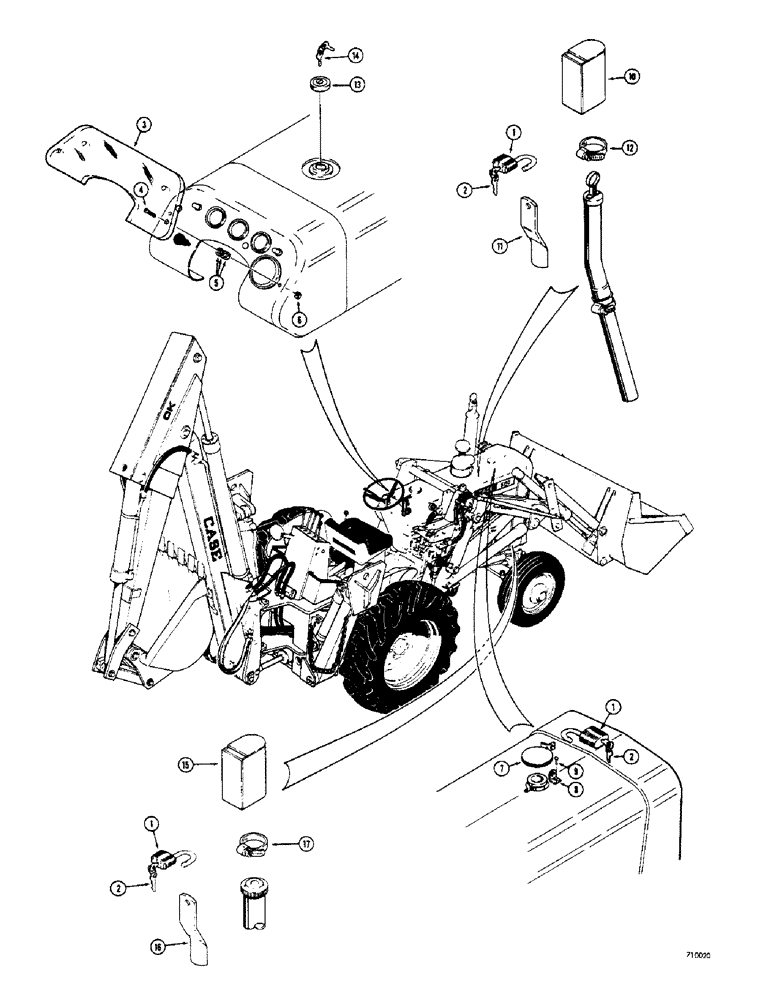

Запчасти Case 33 (162) - LOCK UP PARTS

D15626

KIT - lock up (Machinery item)

1шт.

1

D40678

LOCK

PADLOCK - tractor lockup (When stock is exhausted, supply R29554) & keys

3шт.

1

R29554

LOCK

PADLOCK - tractor, keys

3шт.

2

D40679

KEY

padlock (Used with D40678 lock)

3шт.

2

R29555

KEY

padlock (Used with R29554 lock)

3шт.

3

D50192

instrument panel lockup

1шт.

4

164-33

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1 1/4"

cap, hex, socket (1/4" - 20 NC x 1-1/4"), instrument panel lockup

2шт.

5

195-18

WASHER,1/4"

plain (), instrument panel lockup 1/4"

1шт.

6

131-650

NUT,1/4"-20, GB

hex., (1/4" - 20 NC), instrument panel lockup

2шт.

7

D50190

radiator lockup

1шт.

8

D50191

radiator lockup

1шт.

9

45-36

RIVET,But Hd, 3/16" x 3/8"

3/16" x 3/8", radiator lockup

2шт.

10

D41240

CAP

tube, eng filler lockup

1шт.

11

D41253

STRAP

eng filler lockup

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

strap, eng filler lockup

1шт.

A32120

CAP

KEY - fuel tank, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - fuel tank

1шт.

14

NSS

NOT SOLD SEPARAT

KEY - ca, fuel tank

2шт.

15

D52941

power steering reservoir lockup

1шт.

16

D41253

STRAP

power steering reservoir lockup

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

strap, power steering reservoir lockup

1шт.
