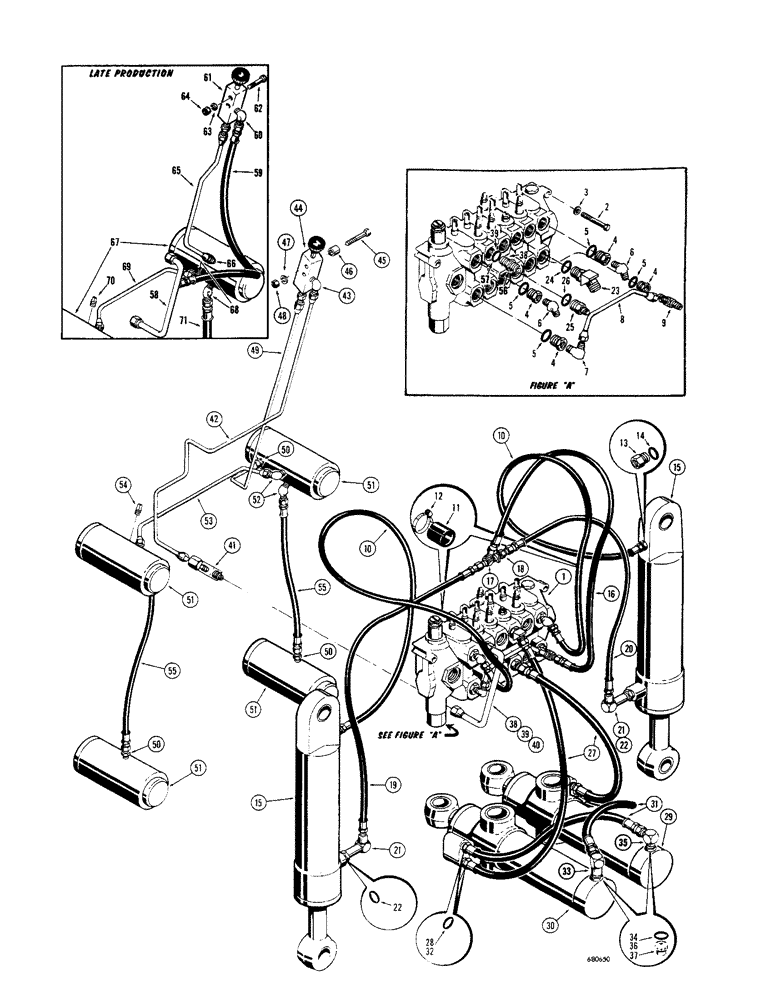

Запчасти Case 33 (134) - SWING, STABILIZER AND LOCKING, CYLINDER HYDRAULICS

1

REF

INSTRUCTION

VALVE - backhoe control (See Figure 226 for proper valve)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

D36928

ADAPTER

- special, straight, stabilizer cyl hyd, Includes: Ref. 5

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - stabilizer cyl hyd

1шт.

6

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

- male, 45, stabilizer cyl hyd

2шт.

7

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

- male, 90, stabilizer cyl hyd

1шт.

8

D36915

TUBE

crossover, stabilizer cyl hyd

1шт.

9

218-624

FITTING,1/2"-20, 37 Degree x 3/8"-18, NPTF Run

TEE - male, stabilizer cyl hyd

1шт.

10

D36910

HOSE

valve to stabilizer cylinders, closed end (57-1/2" long)

2шт.

11

D36954

hose, rubber, stabilizer cyl hyd

3шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

hose, stabilizer cyl hyd

3шт.

13

D36929

ADAPTER

- special, straight, stabilizer cyl hyd, Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - stabilizer cyl hyd

1шт.

15

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer (See Figure 288 for proper cylinder)

2шт.

16

D36912

HOSE

valve to stabilizer cylinder tee (43-3/4" long)

1шт.

17

D36931

TEE

male, special, stabilizer cyl hyd

1шт.

18

25-158

JAM NUT,Jam, 1/2"-20, G5

hex., lock (1/2" - 20 NF), stabilizer cyl hyd

1шт.

19

D36911

HOSE

tee to L.H. stabilizer cylinder, rod end (35" long)

1шт.

20

D36913

HOSE

tee to R.H. stabilizer cylinder, rod end (24-1/2" long)

1шт.

21

D36927

ELBOW UNION

special, 90, stabilizer cyl hyd, Includes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - , stabilizer cyl hyd

1шт.

23

D36932

FITTING

ELBOW - male, 45 degrees (If used), swing cyl hyd, Includes: Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - swing cyl hyd

1шт.

25

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

male, straight, swing cyl hyd, Includes: Ref. 26

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - swing cyl hyd

1шт.

27

D37219

HOSE

valve to swing cylinders (30" long), Includes: Ref. 28

2шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - swing cyl hyd

1шт.

29

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. swing (See Figures 300 and 302 for proper cylinder)

1шт.

30

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. swing (See Figures 300 and 302 for proper cylinder)

1шт.

31

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

crossover, (23-1/2" long), swing cyl hyd, Includes: Ref. 32

2шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - swing cyl hyd

1шт.

33

D36934

FITTING

ELBOW - adjustable, 90 (L.H. swing cylinder), Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - swing cyl hyd

1шт.

35

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees (R.H. swing cylinder), Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - swing cyl hyd

1шт.

37

D41462

FITTING

RESTRICTOR - flow control, swing cyl hyd

2шт.

38

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, straight, locking cyl hyd (early production), Incl. Ref. 39

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - , locking cyl hyd (early production)

1шт.

40

D30773

TUBE

valve , locking cyl hyd (early production)

1шт.

41

D36674

TEE

male, special, locking cyl hyd (early production)

1шт.

42

D36656

TUBE - valve to , locking cyl hyd (early production)

1шт.

43

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

- male, 90 degrees, locking cyl hyd (early production)

1шт.

44

D36662

PISTON

VALVE - locking, control (Parts list Figure 204), locking cyl hyd (early production)

1шт.

45

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Locking cyl hyd (early production) Hex, 1/4"-20 x 2 1/4", G5

2шт.

46

D37342

valve, locking cyl hyd (early production)

2шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Locking cylinder hydraulics (Early production) 1/4"

2шт.

48

25-104

NUT,1/4"-20, G5

Locking cyl hyd (Early production) 1/4"-20, G5

2шт.

49

D39044

TUBE

valve to upper R.H., locking cyl hyd (early production)

1шт.

50

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight, locking cyl hyd (early production)

3шт.

51

NSS

NOT SOLD SEPARAT

side shift frame (Parts list Figure 70), locking cyl hyd (early production)

4шт.

52

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

- male, 45 degrees, locking cyl hyd (early production)

4шт.

53

D36925

TUBE

R.H. to L.H. , locking cyl hyd (early production)

1шт.

54

221-12

PLUG,Sq Hd, 1/4"-18

pipe, square head (1/4" NPT), locking cyl hyd (early production)

1шт.

55

D36959

HOSE

upper to lower (21-1/2" long), locking cyl hyd (early production)

2шт.

56

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, locking cyl hyd (late production), Incl. Ref. 57

1шт.

57

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - locking cyl hyd (late production)

1шт.

58

D51309

valve to, locking cyl hyd (late production)

1шт.

59

D36912

HOSE

valve to (43-3/4" long), locking cyl hyd (late production)

1шт.

60

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

- male, 90 degrees, locking cyl hyd (late production)

1шт.

61

D36662

PISTON

VALVE - control (Parts list Figure 204), locking cyl hyd (late production)

1шт.

62

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Locking cyl hyd (late production) Hex, 1/4"-20 x 2", G5

2шт.

63

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Locking cylinder hydraulics (Late production) 1/4"

2шт.

64

25-104

NUT,1/4"-20, G5

Locking cyl hyd (Late production) 1/4"-20, G5

2шт.

65

D44380

TUBE

valve to upper R.H. , locking cyl hyd (late production)

1шт.

66

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight, locking cyl hyd (late production)

3шт.

67

NSS

NOT SOLD SEPARAT

side shift frame (Parts list Figure 70), locking cyl hyd (late production)

4шт.

68

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

- male, 45 degrees, locking cyl hyd (late production)

4шт.

69

D36925

TUBE

R.H. to L.H. locking cylinder, locking cyl hyd (late production)

1шт.

70

221-12

PLUG,Sq Hd, 1/4"-18

pipe, square head (1/4" NPT), locking cyl hyd (late production)

1шт.

71

D36959

HOSE

upper to (21-1/2" long), locking cyl hyd (late production)

2шт.
