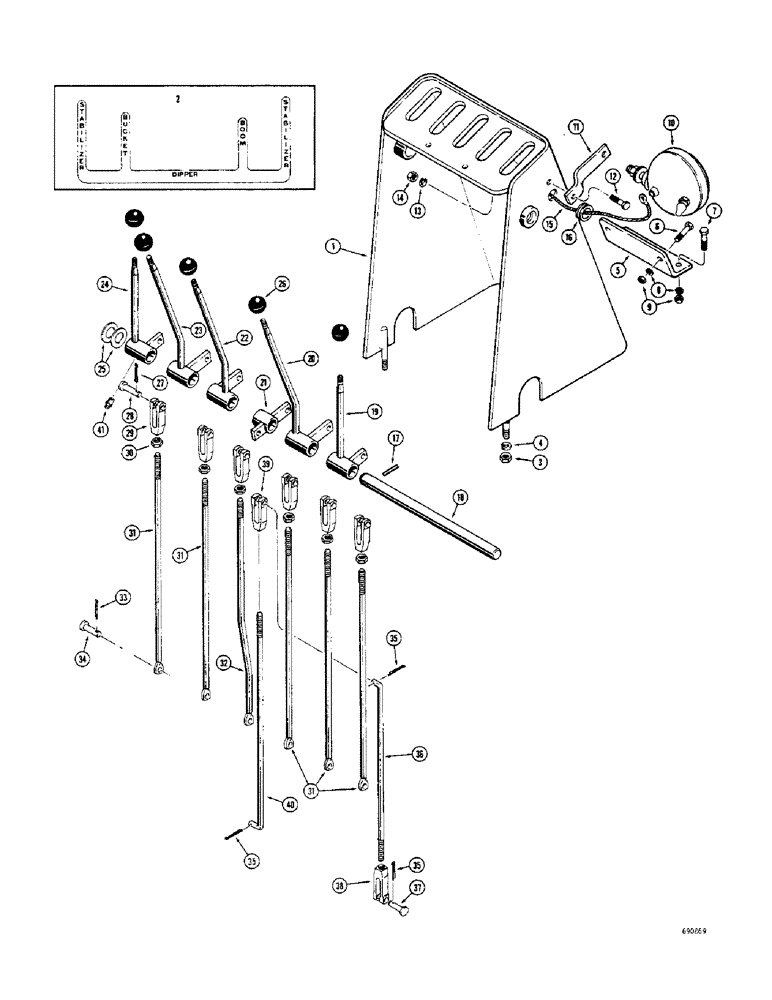

Запчасти Case 33 (116) - INDIVIDUAL LEVER BACKHOE CONTROL * (FOOT SWING)

1

D56529

BOOM

CONSOLE - backhoe control (See Figure 120 for swing down seat arrangement)

1шт.

2

321-921

DECAL

- control console

1шт.

3

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

4

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

5

D38292

COVER PLATE

BRACKET - console mounting

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

10

A20965

LAMP BASE

LIGHT - flood and tail (Parts listed Figure 120)

1шт.

11

D30662

LINK

- light mounting

1шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

15

D38477

ELECTRICAL WIRE

WIRE - light

1шт.

16

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

17

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

18

D30817

SHAFT

- control levers

1шт.

19

D48248

LEVER

- control, R.H. stabilizer (3/8" - 24 NF threaded end)

1шт.

19

D49984

HANDLE

LEVER - control, R.H. stabilizer (1/2" - 20 NF threaded end)

1шт.

20

D48107

LEVER

- control, boom (Bent) 3/8" - 24 NF threaded end (Used with jump seat)

1шт.

20

D49986

HANDLE

LEVER - control, boom (Bent) 1/2" - 20 NF threaded end (Used with jump seat)

1шт.

20

D48109

LEVER

- control, boom (Straight) 3/8" - 24 NF threaded end (Used with swing down seat)

1шт.

20

D49994

HANDLE

LEVER - control, boom (Straight) 1/2" - 20 NF threaded end (Used with swing down seat)

1шт.

21

D48252

ANCHOR

LEVER - pivot, swing

1шт.

22

D48249

LEVER

- control, dipper (Bent) 3/8" - 24 NF threaded end (Used with jump seat)

1шт.

22

D49988

HANDLE

LEVER - control, dipper (Bent) 1/2" - 20 NF threaded end (Used with jump seat)

1шт.

22

D48246

LEVER

- control, dipper (Straight) 3/8" - 24 NF threaded end (Used with swing down seat)

1шт.

22

D49995

HANDLE

LEVER - control, dipper (Straight) 1/2" - 20 NF threaded end (Used with swing down seat)

1шт.

23

D48106

LEVER

- control, bucket (Bent) 3/8" - 24 NF threaded end (Used with jump seat)

1шт.

23

D49987

HANDLE

LEVER - control, bucket (Bent) 1/2" - 20 NF threaded end (Used with jump seat)

1шт.

23

D48108

LEVER

- control, bucket (Straight) 3/8" - 24 NF threaded end (Used with swing down seat)

1шт.

23

D49993

HANDLE

LEVER - control bucket (Straight) 1/2" - 20 NF threaded end (Used with swing down seat)

1шт.

24

D48247

LEVER

- control, L.H. stabilizer (3/8" - 24 NF threaded end)

1шт.

24

D49983

HANDLE

LEVER - control, L.H. stabilizer (1/2" - 20 NF threaded end)

1шт.

24

D52509

LEVER - control, L.H. stabilizer (1/2" - 20 NF threaded end) Used with models equipped with four foot extendable dipper

1шт.

25

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16")

1шт.

26

70213

KNOB

- control lever (Used with 3/8" - 24 NF threaded levers)

5шт.

26

D49996

KNOB

- control lever (Used with 1/2" - 20 NF threaded levers)

5шт.

27

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

28

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

6шт.

29

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

6шт.

30

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

6шт.

31

D30821

ROD

- straight, connecting (R.H. and L.H. stabilizer, boom, bucket and swing control)

5шт.

32

D38314

ROD

- bent (Dipper control)

1шт.

33

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

34

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke mounting 5/16" x .940"

6шт.

35

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

36

D21762

ROD

- "L" bend, connecting (R.H. swing control)

1шт.

37

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

1шт.

38

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

1шт.

39

D37600

YOKE

- connecting rod

1шт.

40

D30819

ROD

- "L" bend, connecting (L.H. swing control)

1шт.

41

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, straight (5/16" drive type) Used with 3/8" - 24 NF threaded levers

6шт.

41

219-103

FITTING

- grease, straight (1/8" NPT) Used with 1/2" - 20 NF threaded levers

6шт.
