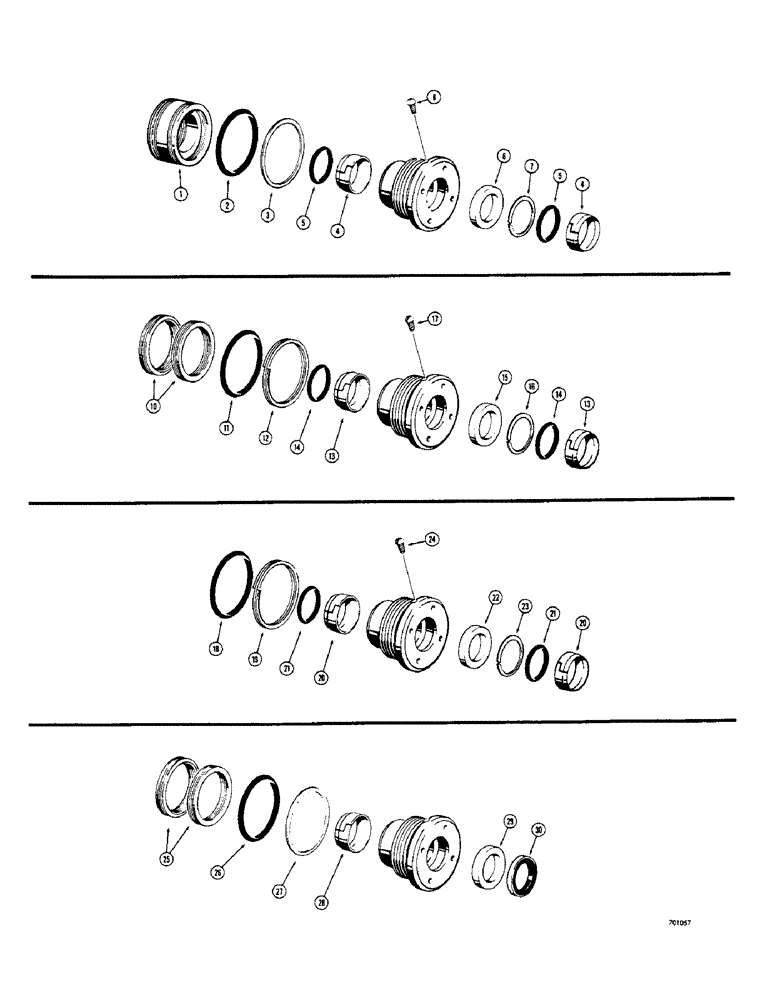

Запчасти Case 33 (350) - CYLPACKING KITS, W/3-1/2"ID TUBE&1-3/4"DIA. ROD ONLY D37356 CYL PACKING KIT

D37356

GLAND

KIT - cylinder packing (When stock is exhausted, order D41399 kit for service - plus 1 - D47208 metal ring), Includes: Ref. 1 - 9

1шт.

1

D36963

PACKING

- piston

1шт.

2

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

3

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

4

D27432

SHIM

- rod

2шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

6

D36970

CUP

SEAL - rod

1шт.

7

D28499

RING

- backup, rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF) not shown (Not required on this model)

1шт.

D41399

SEAL KIT

KIT - cylinder packing (When stock is exhausted, order D42873 kit - plus 2 - D47203 packings and 1 - D47208 metal ring if required), Includes: Ref. 10 - 17

1шт.

10

D41278

PACKING

piston, chevron, D41399 cyl packing kit

2шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, D41399 cyl packing kit

1шт.

12

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D41399 cyl packing kit

1шт.

13

D27432

SHIM

- rod, D41399 cyl packing kit

2шт.

14

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used), D41399 cyl packing kit

2шт.

15

D36970

CUP

SEAL - rod, D41399 cyl packing kit

1шт.

16

D28499

RING

- backup, rod seal, D41399 cyl packing kit

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D41399 cyl packing kit

1шт.

D42873

GASKET KIT

KIT - gland packing, Includes: Ref. 18 - 24

1шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, D42873 gland packing kit

1шт.

19

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, seal, D42873 gland packing kit

1шт.

20

D27432

SHIM

- rod, D42873 gland packing kit

2шт.

21

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If use), D42873 gland packing kit

2шт.

22

D36970

CUP

SEAL - rod, D42873 gland packing kit

1шт.

23

D28499

RING

- backup, rod seal, D42873 gland packing kit

1шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42873 gland packing kit

1шт.

G32298

SEAL

KIT - cylinder packing, Includes: Ref. 25 - 30

1шт.

G32291

CYLINDER

KIT - cylinder packing, Includes: Ref. 25 - 30

1шт.

25

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

piston, chevron (G32298 kit), G32298 & G32291 cyl packing kit

2шт.

25a

D36963

PACKING

piston (G32291 kit) not illustrated in this sequence of parts - see ref. no. 1, G32298 & G32291 cyl packing kit

1шт.

26

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, G32298 & G32291 cyl packing kit

1шт.

27

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, seal, G32298 & G32291 cyl packing kit

1шт.

28

D27432

SHIM

- rod, inner, G32298 & G32291 cyl packing kit

1шт.

29

D36970

CUP

SEAL - rod, G32298 & G32291 cyl packing kit

1шт.

30

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, G32298 & G32291 cyl packing kit

1шт.
