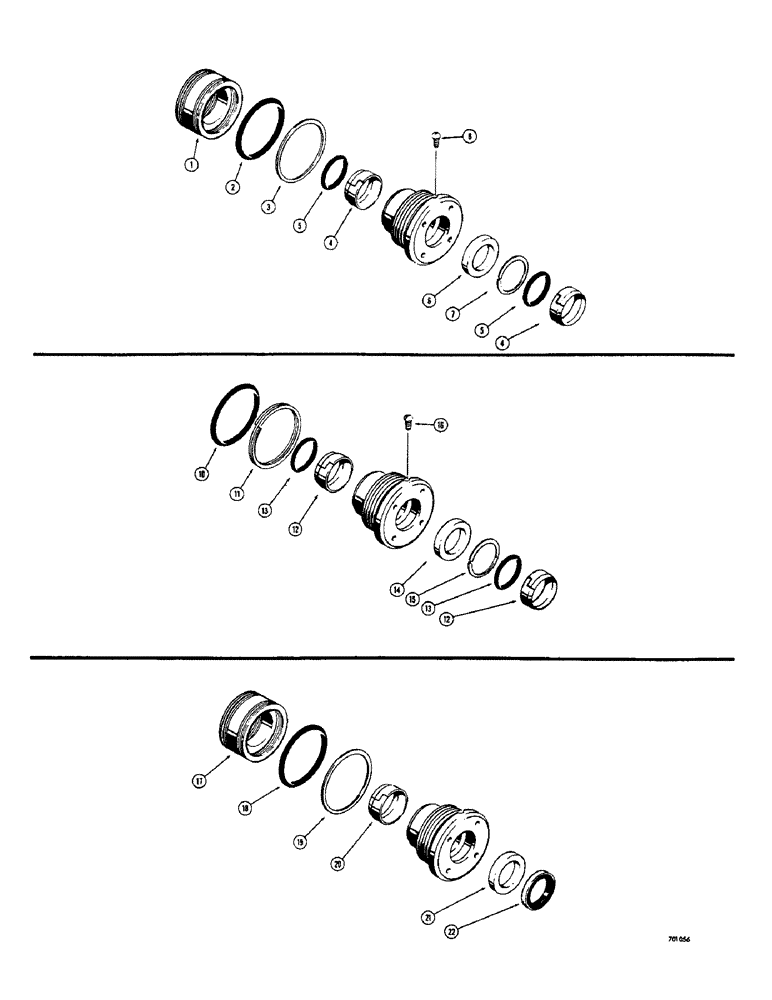

Запчасти Case 33 (346) - CYL PACKING KITS,USED IN LOADER&3 PT HITCH LIFT CYL 3"ID TUBE&1-1/2"DIA. ROD D37353 CYL PACKING KIT

D37353

X

KIT - cylinder packing (When stock is exhausted, order 1 - D42870 kit for service - plus 1 - D28374 packing if required), Includes: Ref. 1 - 9

1шт.

1

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

2

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

3

D28049

RING

- backup, gland seal

1шт.

4

D27706

WIPER SEAL

WIPER - rod

2шт.

5

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (If used)

2шт.

6

D36969

CUP

SEAL - rod

1шт.

7

D28498

RING

- backup, rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

9

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, , Not shown (Not required on this model) 3/4"-16, GB

1шт.

D42870

GASKET KIT

KIT - gland packing, Includes: Ref. 10 - 16

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O"ring,, D42870 gland packing kit

1шт.

11

D28049

RING

- backup, seal, D42870 gland packing kit

1шт.

12

D27706

WIPER SEAL

WIPER - rod, D42870 gland packing kit

2шт.

13

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (If used), D42870 gland packing kit

2шт.

14

D36969

CUP

SEAL - rod, D42870 gland packing kit

1шт.

15

D28498

RING

- backup, rod seal, D42870 gland packing kit

1шт.

16

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42870 gland packing kit

1шт.

G32292

KIT

- cylinder packing, Includes: Ref. 17 - 22

1шт.

17

D28374

PACKAGE,SERVICE

PACKING - piston, G32292 cyl packing kit

1шт.

18

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL -"O" ring, gland, G32292 cyl packing kit

1шт.

19

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland seal, G32292 cyl packing kit

1шт.

20

D27706

WIPER SEAL

WIPER - rod, inner, G32292 cyl packing kit

1шт.

21

D36969

CUP

SEAL - rod, G32292 cyl packing kit

1шт.

22

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer, G32292 cyl packing kit

1шт.
