Запчасти Case 33 (308) - G32594 BOOM CYL,4"DIA CYL W/39-3/16"STROKE,W/SOLID OUTER WIPER&SPLIT INNER WIPER W/RING WELD STYLE S

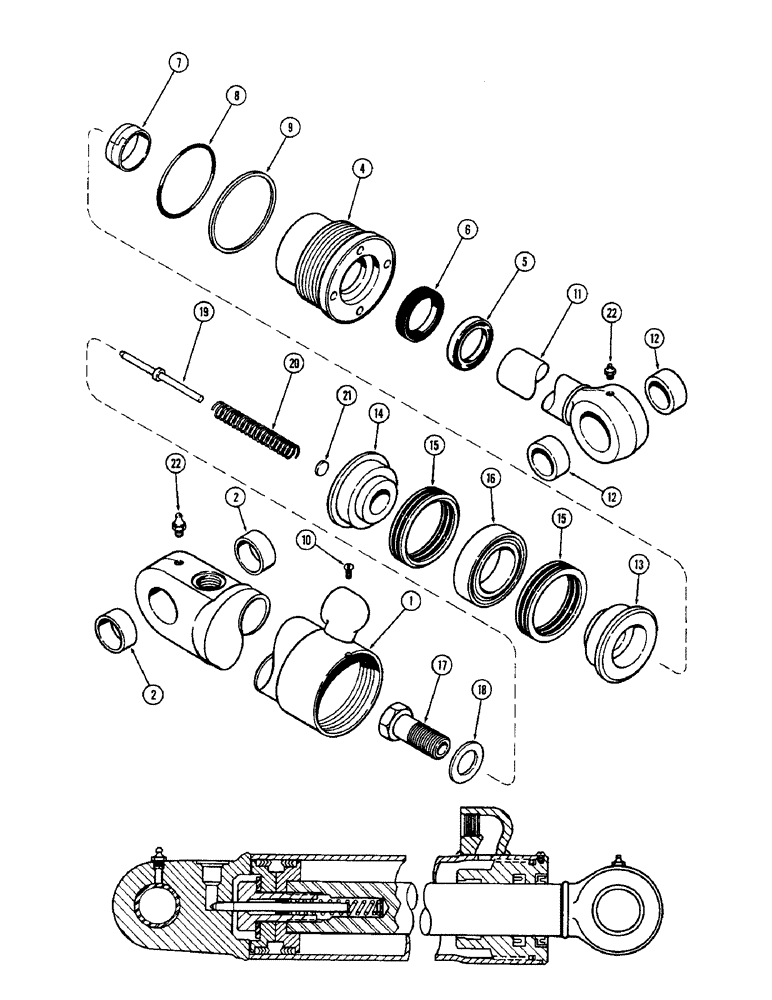

Схема запчастей Case 33 - (308) - G32594 BOOM CYL,4"DIA CYL W/39-3/16"STROKE,W/SOLID OUTER WIPER&SPLIT INNER WIPER W/RING WELD STYLE S

Артикул

Название

Примечание

Количество

G32594

CYLINDER

ASSY., Includes: Ref. 1 - 22

1шт.

1

D43299

CYLINDER

TUBE ASSY. - (Ring weld), Includes: Ref. 2

1шт.

2

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G32737

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit P/N G32299

1шт.

6

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of seal kit P/N G32299

1шт.

7

D27380

SCRAPER RING

WIPER - piston rod, inner (Split type)

1шт.

Part of seal kit P/N G32299

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of seal kit P/N G32299

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of seal kit P/N G32299

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

D40410

PISTON

ROD ASSY. - piston (2" dia.), Includes: Ref. 12

1шт.

12

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

D46424

PISTON

- split (Rod end)

1шт.

14

D46930

PISTON

- split (Bolt end)

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of seal kit P/N G32299

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston & restrictor pin

1шт.

18

G32351

WASHER

- bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

19

D38679

PIN

- restrictor

1шт.

20

D38683

SPRING

- restrictor pin (5" free length)

1шт.

21

D38684

SPACER

SEAT - spring (3/4" dia. x 1/8")

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

G32299

KIT

SEAL KIT - cylinder repair, Includes Refs. 5, 6, 7, 8, 9 and 15

1шт.

Выбрано товаров: 30
