Запчасти Case 33 (284) - G32588&G32589 STABILIZER CYL,W/SOLID TYPE INNER & OUTER WIPERS W/O GLAND ID RING

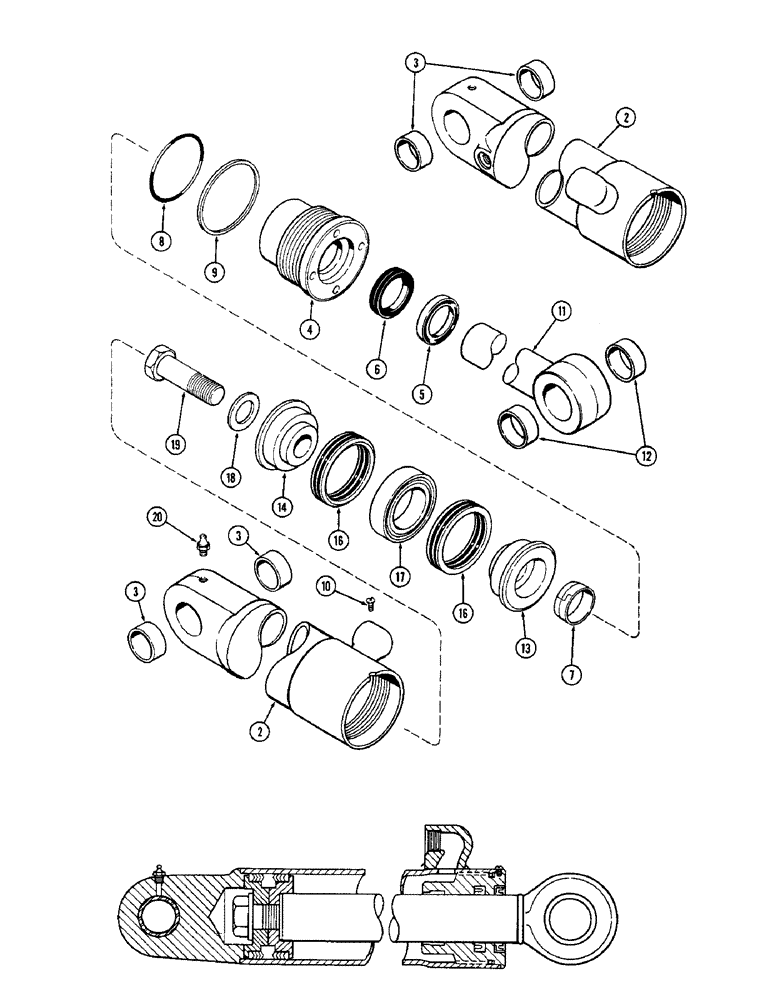

Схема запчастей Case 33 - (284) - G32588&G32589 STABILIZER CYL,W/SOLID TYPE INNER & OUTER WIPERS W/O GLAND ID RING

Артикул

Название

Примечание

Количество

1

G32588

CYLINDER

ASSY. - right hand

1шт.

1

G32589

CYLINDER

ASSY. - left hand

1шт.

2

D38693

TUBE

ASSY. - right hand (Incl. ref. 3)

1шт.

D38693 Tube Assy - RH 7/16 port offset 45 degrees

1шт.

2

D38692

TUBE ASSY. - left hand

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G32743

GLAND

ASSY

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring)

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit P/N G32291

1шт.

6

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 3/8")

1шт.

Part of seal kit P/N G32291

1шт.

7

D27432

SHIM

- piston rod, inner (Split type)

1шт.

Part of seal kit P/N G32291

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit P/N G32291

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32291

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

D37789

ROD

ASSY. - piston (1-3/4" dia.) (w/o identification ring)

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

D28369

PISTON

- split (Rod end) (w/o identification ring)

1шт.

14

D28367

PISTON

- split (Bolt end)

1шт.

G33237

PACKING

ASSY. - piston

1шт.

Part of seal kit P/N G32291

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - piston ("V" type)

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1 x 1-7/8 x 3/64")

1шт.

19

D32861

BOLT

- piston (1 x 2-1/2" N.F. hex)

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32291

CYLINDER

SEAL KIT - cylinder repair, Includes Refs. 5, 6, 7, 8, 9 and G33237

1шт.

Выбрано товаров: 31
