Запчасти Case 33 (282) - D38694,D38695&D40794 STABILIZER CYL,3-1/2"DIA CYL W/16-3/8"STROKE W/SPLIT TYPE INNER &OUTER WIPERS W

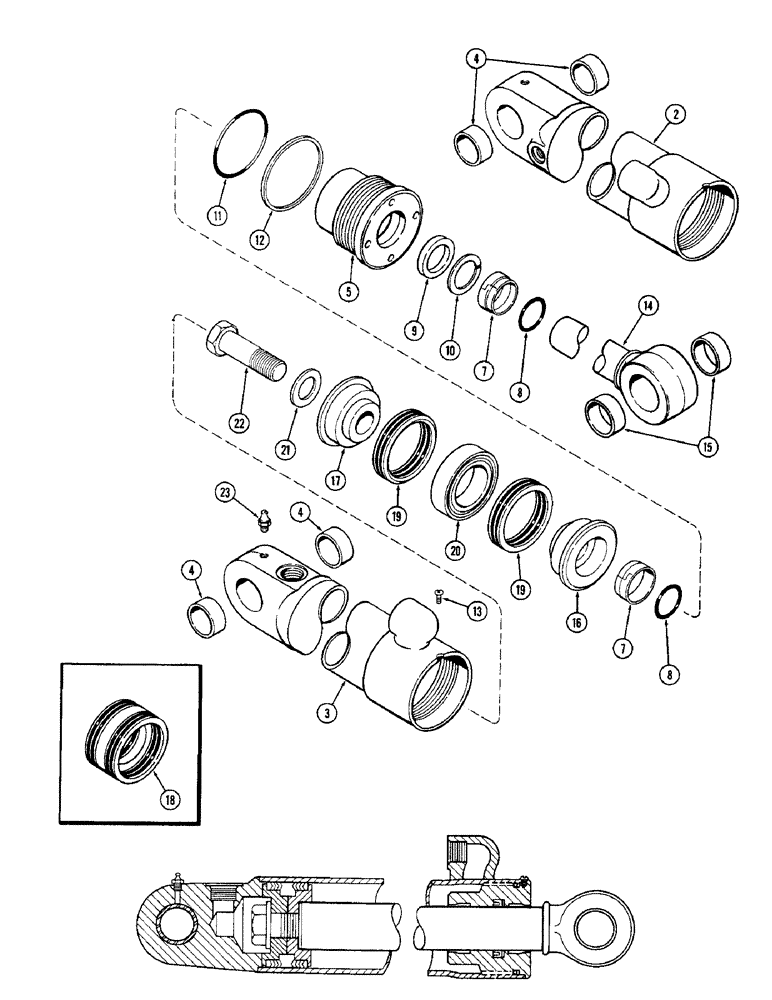

Схема запчастей Case 33 - (282) - D38694,D38695&D40794 STABILIZER CYL,3-1/2"DIA CYL W/16-3/8"STROKE W/SPLIT TYPE INNER &OUTER WIPERS W

Артикул

Название

Примечание

Количество

D38695

CYLINDER ASSY.

- right hand (w/45 degrees front port angle) (Order G32588) (See Figure 284), Includes: Ref. 2 - 23

1шт.

D38695 Cylinder Assy - Early Units Only 5-June-96

1шт.

D38694

CYLINDER

ASSY. - left hand (w/45 degrees front port angle) (Order G32589) (See Figure 284), Includes: Ref. 2 - 23

1шт.

D38694 Cylinder Assy - Early Units Only 5-June-96

1шт.

D40794

CYLINDER

ASSY. - (w/front port on top) (Order G32136) (See Figure 286), Includes: Ref. 2 - 23

2шт.

D40794 Cylinder Assy - Later Models

1шт.

2

D38693

TUBE

ASSY. - right hand (Used w/D38695 cyl.) (w/45 degrees front port angle), Includes: Ref. 4

1шт.

D38693 Tube Assy - RH 7/16 port offset 45 degrees

1шт.

2

D38692

TUBE ASSY. - left hand (Used w/D38694 cyl.) (w/45 degrees front port angle), Includes: Ref. 4

1шт.

D38692 - Tube Assy L.H. 7/16" port, offset 45 degrees

1шт.

3

D37792

TUBE

ASSY. - (Used w/D40794 cyl.) (w/front port on top)

1шт.

D37792 - Tube Assy 7/8 port, not offset

1шт.

4

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

1шт.

5

D45069

GLAND

- (w/o identification ring) (Order G32743 gland) (See Figure 284)

1шт.

D42873

GASKET KIT

PACKING KIT - gland (Replaces D37356 & D41399), Includes: Ref. 7 - 13

1шт.

7

D27432

SHIM

- piston rod, inner & outer (Split type)

2шт.

8

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O"RING - wiper (1-7/8 x 2-1/8 x 1/8")

2шт.

9

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 3/8")

1шт.

10

D28499

RING

- rod seal back-up

1шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

12

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O" ring back-up

1шт.

13

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

14

D37789

ROD

ASSY. - piston (1-3/4" dia.) (w/o identification ring), Includes: Ref. 15

1шт.

15

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

16

D28369

PISTON

- split (Rod end) (w/o identification ring)

1шт.

17

D28367

PISTON

- split (Bolt end)

1шт.

18

D36963

PACKING

ASSY. - piston ("V" type) (Used w/D38694 & D38695 cylinders)

1шт.

19

D42808

PACKAGE,SERVICE

PACKING - piston ("V" type) (Used w/D40794 cyl.)

2шт.

20

D43545

RING

- center bearing (Used w/D40794 cyl.)

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1 x 1-7/8 x 3/64")

1шт.

22

D32861

BOLT

- piston (1 x 2-1/2" N.F. hex.)

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

Выбрано товаров: 32
