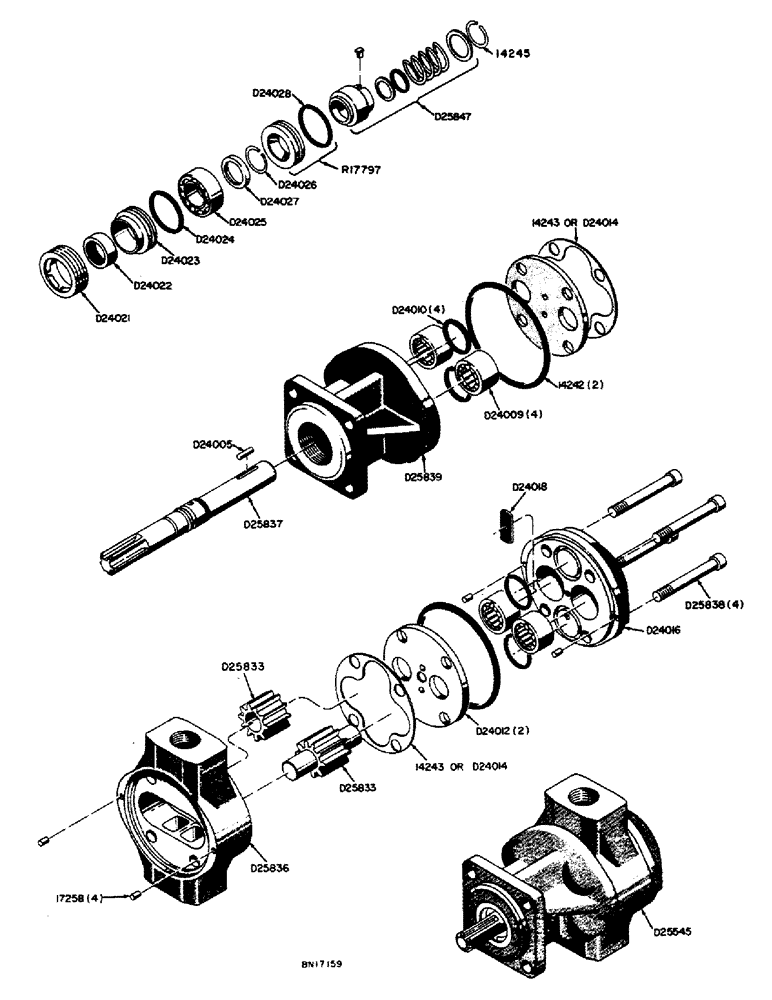

Запчасти Case 31 (024) - D25545 HYDRAULIC PUMP

NLS

NO LONGER SERVICED

SEAL - "O" ring, covers and gear housing

2шт.

14243

SHIM

- gear housing and wear plates (.001" thick) (See D24014)

1шт.

14245

RING, SNAP

SNAP RING - sleeve (See D25848)

1шт.

17258

AXLE PIN

PIN - dowel, covers to gear housing

4шт.

D24005

PIN

KEY - drive gear (Dowel pin type)

1шт.

D24009

BEARING

- needle, front and rear covers

4шт.

D24010

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wear plate

4шт.

D24012

PLATE - wear

2шт.

D24014

SHIM,.002" Thk

Gear hsg and wear plates (See 14243) .002" Thk

1шт.

D24016

COVER

- front (Includes 2 - D24009 bearings and 1 - D24018 thrust washer)

1шт.

D24018

WASHER

- thrust

1шт.

D24021

RETAINER - wiper seal

1шт.

D24022

SEAL ASSY.

SEAL - wiper, oil

1шт.

D24023

SLEEVE CYLINDER

SLEEVE - wiper seal

1шт.

D24024

O-RING

SEAL - "O" ring, sleeve

1шт.

D24025

BEARING

- ball thrust

1шт.

D24026

RING, SNAP

SNAP RING - bearing

1шт.

D24027

RETAINER

- snap ring

1шт.

D24028

O-RING

SEAL - "O" ring, seat

1шт.

D24029

SEAL

SEAT - "O" ring (Use R17797)

1шт.

D25545

PUMP - hydraulic loader (Hydreco #2012A4A1AL) (19 G.P.M.)

1шт.

G.P.M. is rated at 1900 R.P.M. and 2000 P.S.I.

1шт.

D25833

KIT - gear set, drive and driven

1шт.

D25836

HOUSING - gear

1шт.

D25837

SHAFT - pump drive

1шт.

D25838

SCREW - cap, special

4шт.

D25839

COVER - rear (Includes 2 - D24009 bearings)

1шт.

D25847

SEAL ASSY.

SEAL ASSEMBLY - drive shaft

1шт.

D25848

SNAP RING - sleeve (Use 14245)

1шт.

R17797

X

SEAT - "O" ring (See D24029)

1шт.
