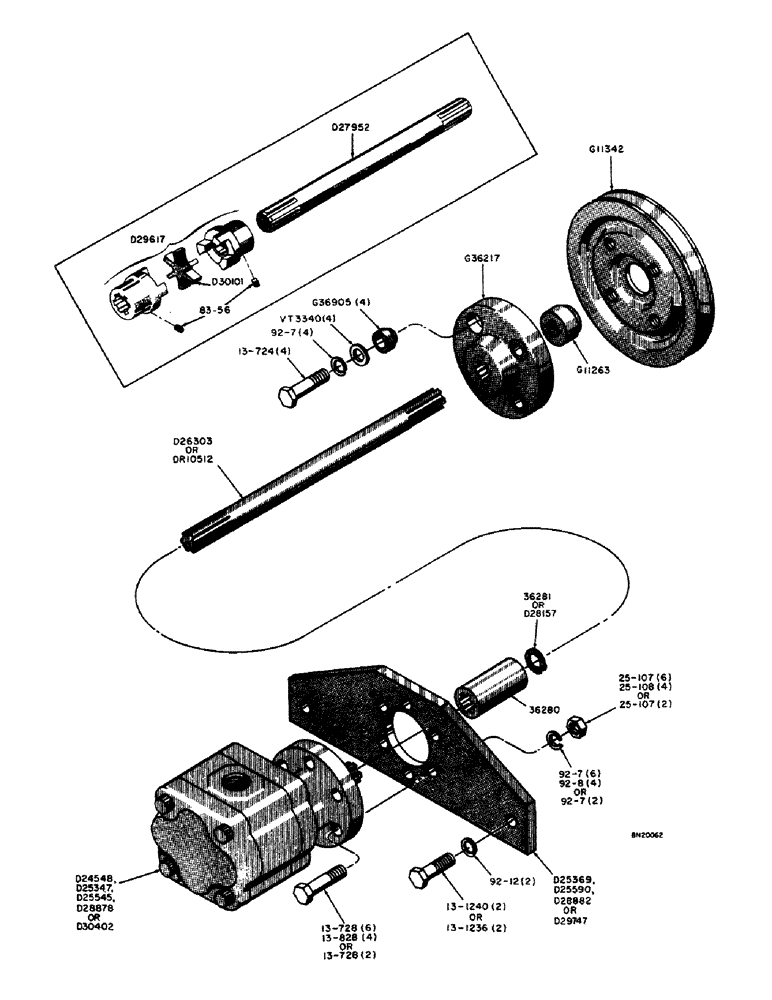

Запчасти Case 31 (018) - PUMP DRIVE

A35673

NUT

- fan drive pulley

1шт.

G11263

NUT

- fan drive pulley (When stock is exhausted use A35673)

1шт.

G11342

X

PULLEY - fan and generator drive

1шт.

G36217

HUB ASSY.

COUPLING - flexible, pump drive to pulley (Includes 4 - G36905 blocks and bushings)

1шт.

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

7/16" - 14 NC x 1-1/2" hex. head cap screw (13-724)

4шт.

7/16" lockwasher (92-7)

4шт.

VT3340

X

WASHER - coupling bolt (29/64" I.D. x 3/4" O.D.)

4шт.

NLS

NO LONGER SERVICED

- shaft to pump, used with D26303 and DR10512 shafts (For service 1 - D29617 coupling and 1 - D27952 shaft may be used)

1шт.

36281

X

SNAP RING - coupling (Use D28157)

1шт.

D24548

PUMP - hydraulic loader (Hydreco - 16 G.P.M.) (See Figure 22 for breakdown)

1шт.

1/2" - 13 NC x 1-3/4" hex. head cap screw (13-828)

4шт.

1/2" lockwasher (92-8)

4шт.

1/2" - 13 NC hex. nut (25-108)

4шт.

D25347

PUMP, HYDRAULIC

PUMP - hydraulic loader (Commercial - 19 G.P.M.) (See Figure 26 for breakdown)

1шт.

7/16" - 14 NC x 1-3/4" hex. head cap screw (13-728)

6шт.

7/16" lockwasher (92-7)

6шт.

7/16" - 14 NC hex. nut (25-107)

6шт.

D25369

BRACKET - pump mounting, D24548 and D25545 pumps only (See D25590, D28882, and D29747)

1шт.

3/4" - 10 NC x 2-1/2" hex. head cap screw (13-1240)

2шт.

3/4" lockwasher (92-12)

2шт.

D25545

PUMP - hydraulic loader (Hydreco - 19 G.P.M.) (See Figure 24 for breakdown)

1шт.

1/2" - 13 NC x 1-3/4" hex. head cap screw (13-828)

4шт.

1/2" lockwasher (92-8)

4шт.

1/2" - 13 NC hex. nut (25-108)

4шт.

D25590

BRACKET - pump mounting, D25347 pump only (See D25369 and D28882) (Use D29747)

1шт.

3/4" - 10 NC x 2-1/4" hex. head cap screw (13-1236)

2шт.

3/4" lockwasher (92-12)

2шт.

D26303

X

SHAFT - hydraulic pump drive, D25347 pump only (See DR10512) (14-3/4" long) (For service 1 - D27952 shaft and 1 - D29617 coupling may be used)

1шт.

D27952

SHAFT

- hydraulic pump drive, late production (For use with D29617 coupling only)

1шт.

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , 36280 coupling 0.875", Int, #87

1шт.

D28878

PUMP - hydraulic loader (Webster - 14 G.P.M.) (See Figure 28 for breakdown)

1шт.

7/16" - 14 NC x 1-3/4" hex. head cap screw (13-728)

2шт.

7/16" lockwasher (92-7)

2шт.

7/16" - 14 NC hex. nut (25-107)

2шт.

D28882

BRACKET - pump mounting, D28878 pump only (See D25369, D25590, and D29747)

1шт.

3/4" - 16 NC x 2-1/4" hex. head cap screw (13-1236)

2шт.

3/4" lockwasher (92-12)

2шт.

D29123

SHIM - pump (Not shown)

1шт.

D29617

COUPLING

- shaft to pump, late production (Flexible type) (For use with D27952 shaft only) (Includes 1 - D30101 wear plate, 2 - 83-56 screws, and 2 - NSS jaws)

1шт.

5/16" - 18 NC x 3/8" set screw (83-56)

2шт.

D29747

BRACKET - pump mounting, D25347 and D30402 pumps only (See D25369, D25590, and D28882)

1шт.

3/4" - 16 NC x 2-1/4" hex. head cap screw (13-1236)

2шт.

3/4" lockwasher (92-12)

2шт.

D30101

PLATE ASSY.

WEAR PLATE - bronze, D29617 coupling

1шт.

D30402

PUMP - hydraulic loader (Commercial - 16 G.P.M.) (See Figure 30 for breakdown) Use D28878 pump and D28882 bracket

1шт.

7/16" - 14 NC x 1-3/4" hex. head cap screw (13-728)

2шт.

7/16" lockwasher (92-7)

2шт.

7/16" - 14 NC hex. nut (25-107)

2шт.

DR10512

X

SHAFT - hydraulic pump drive, D24548 and D25545 pump only (See D26303) (15-1/16" long) (For service 1 - D27952 shaft and 1 - D29617 coupling may be used)

1шт.
