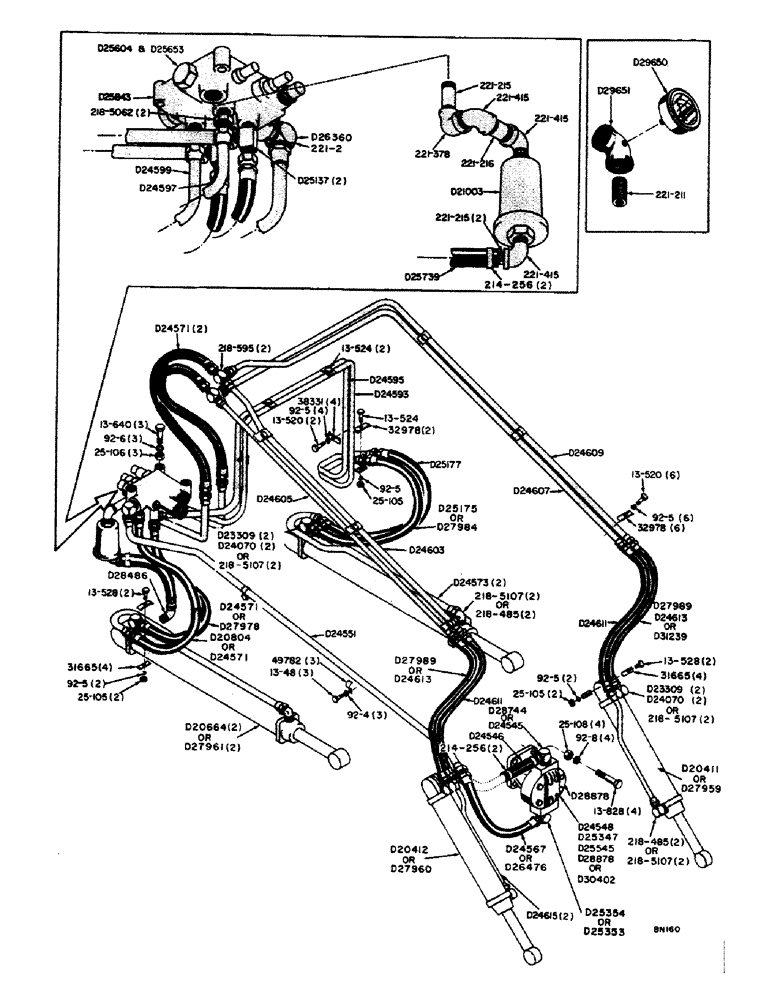

Запчасти Case 31 (010) - LOADER HYDRAULICS

49782

CLAMP - D24551 tube

3шт.

1/4" - 20 NC x 1/2" hex. head cap screw (13-48)

3шт.

1/4" lockwasher (92-4)

3шт.

D21003

FILTER

- hydraulic oil (See Figure 34 for breakdown)

1шт.

3/4" NPT 90 degree street elbow (221-415)

2-3шт.

3/4" NPT x 2-1/2" long pipe nipple (221-216)

1шт.

3/4" NPT x 2" long pipe nipple (221-215)

1шт.

3/4" NPT 90 degree female elbow (221-378)

1шт.

D24545

ELBOW - special 90 degree adjustable (On top pump - see D28744)

1шт.

"O" RING SEAL, D24545 elbow (218-5010)

1шт.

D24546

HOSE - suction (1" I.D. x 1-1/2" O.D. x 5-1/2" long)

1шт.

clamp for D24546 hose (214-256)

2шт.

D24548

PUMP - hydraulic (See D25347, D25545, D30402, and D28878 pumps) (See Figure 22 for breakdown)

1шт.

1/2" - 13 NC x 1-3/4" hex. head cap screw (13-828)

4шт.

1/2" lockwasher (92-8)

4шт.

1/2" - 13 NC hex. nut (25-108)

4шт.

D24551

TUBE - high pressure

1шт.

D24567

HOSE ASSY.

HOSE - pressure, D24548 and D25545 pumps to high pressure tube (3/4" I.D. x 1-5/32" O.D. x 14-1/2" long) (See D26476)

1шт.

D25137

TEE

- male, adjustable (5/8" JIC) (Bottom of loader control valves)

2шт.

D25347

PUMP, HYDRAULIC

PUMP - hydraulic (See D24548, D28878, D30402, and D25545 pumps) (See Figure 26 for breakdown)

1шт.

7/16" - 14 NC x 1-3/4" hex. head cap screw (13-728)

6шт.

7/16" lockwasher (92-7)

6шт.

7/16" - 14 NC hex. nut (25-107)

6шт.

D25353

ELBOW - 90 degree adjustable bottom of D25347 and D28878 pumps (3/4" NPT x 7/8" JIC) (See D25354)

1шт.

"O" RING SEAL, D25353 elbow (218-5009) (Not shown)

1шт.

D25354

ELBOW

- 90 degree adjustable bottom of D24548 and D25545 pumps (3/4" NPT x 3/4" JIC) (See D25353)

1шт.

"O" RING SEAL, D25354 elbow (218-5008) (Not shown)

1шт.

D25545

PUMP - hydraulic (See D24548, D25347, D30402, and D28878 pumps) (See Figure 24 for breakdown)

1шт.

1/2" - 13 NC x 1-3/4" hex. head cap screw (13-828)

4шт.

1/2" lockwasher (92-8)

4шт.

1/2" - 13 NC hex. nut (25-108)

4шт.

D25604

PLUG

- hex. head, loader control valve

1шт.

D25653

GASKET

- loader control valve plug

1шт.

D25739

LARGE HOSE

HOSE - low pressure, filter to reservoir (1" I.D. x 1-1/2" O.D. x 16" long)

1шт.

clamp for D25739 hose (214-256)

2шт.

3/4" NPT x 2" long pipe nipple (221-215)

2шт.

3/4" NPT 90 degree street elbow (221-415)

1шт.

D25843

VALVE - hydraulic loader control (See Figure 32 for breakdown)

1шт.

D26360

ELBOW - 90 degree adjustable, R.H. side loader control valve

1шт.

"O" RING SEAL (218-5009) (Not shown)

1шт.

1/4" NPT square head pipe plug (221-2)

1шт.

D26476

SUPPORT

HOSE - pressure, D25347 and D28878 pump to high pressure tube (3/4" I.D. x 1-5/32" O.D. x 12-1/2" long) (See D24567)

1шт.

D28486

ELBOW - 90 degree street, at reservoir (3/4" NPT)

1шт.

1/2" NPT square head pipe plug, D28486 elbow (221-4)

1шт.

D28744

ELBOW - top of D28878 pump, extra long (1" JIC)

1шт.

"O" RING SEAL, D28744 elbow (218-5010) (Not shown)

1шт.

D28878

PUMP - hydraulic (See D24548, D25347, D30402, and D25545 pumps) (See Figure 28 for breakdown)

1шт.

7/16" - 14 NC x 1-3/4" hex. head cap screw (13-728)

2шт.

7/16" lockwasher (92-7) (Not shown)

2шт.

7/16" - 14 NC hex. nut (25-107) (Not shown)

2шт.

D29650

ELECTRICAL GAUGE

GAUGE - hydraulic oil pressure (If used)

1шт.

D29651

ELBOW - special, filter gauge (If used) (3/4" NPT)

1шт.

3/4" NPT x 1-1/8" pipe nipple (221-211)

1шт.

D30402

PUMP - hydraulic, used on all "31" loaders without a backhoe from serial no. 4069987 through 4070370 only (See D24548, D25347, D25545, and D28878 pumps) (See Figure 30 for breakdown) Use D28878 pump and D28882 bracket

1шт.

31665

COLLAR CLAMP

CLAMP - hoses at lift cylinders

4шт.

5/16" - 18 NC x 1-3/4" hex. head cap screw (13-528)

2шт.

5/16" lockwasher (92-5)

2шт.

5/16" - 18 NC hex. nut (25-105)

2шт.

32978

PLATE ASSY.

CLAMP - on tubes to L.H. lift cylinder

2шт.

5/16" - 18 NC x 1-1/2" hex. head cap screw (13-524)

1шт.

5/16" lockwasher (92-5)

1шт.

5/16" - 18 NC hex. nut (25-105)

1шт.

38331

PLATE

CLAMP - on tubes to L.H. lift cylinder

4шт.

5/16" - 18 NC x 1-1/4" hex. head cap screw (13-520)

2шт.

5/16" - 18 NC x 1-1/2" hex. head cap screw (13-524)

2шт.

5/16" lockwasher (92-5)

4шт.

D20664

CYLINDER - hydraulic lift, with tie rods (Use D27961 cylinder, 218-5107 elbow, and D24070 elbow) (See Figure 35 for breakdown)

2шт.

D20804

HOSE

- valve to front port of D20664 R.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 30-1/2" long) (See D24571)

1шт.

D23309

ELBOW - 90 degree street, rear port of D20664 lift cylinder (1/2" NPT x 1/2" NPT) (See 218-5107 elbow under D27961 cylinder)

2шт.

D24070

ELBOW

- 90 degree adjustable street, rear port of D27961 lift cylinder when replacing D20664 lift cylinder with D27961 lift cylinder only (5/8" JIC x 1/2" NPT) (See 218-5107 under D27961)

2шт.

D24571

HOSE

- valve to rear port of D20664 R.H. lift cylinder and valve to front port of D27961 R.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 30-1/4" long) (See D27978)

1шт.

D24576

TUBE - hose to front port of lift cylinders

2шт.

1/2" NPT x 5/8" JIC 90 degree male elbow front port of D20664 lift cylinder (See 218-5107 under D27961) (218-485)

2шт.

D24593

TUBE - valve to hose, front port of L.H. lift cylinder

1шт.

D24595

TUBE - valve to hose, rear port of L.H. lift cylinder

1шт.

D25175

HOSE - tube to rear port D20664 L.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 26" long) (See D27984)

1шт.

D25177

HOSE ASSY.

HOSE - tube to front port L.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 26" long)

1шт.

D27961

CYLINDER - hydraulic lift, without tie rods (See D20664) (See Figure 36 for breakdown)

2шт.

5/8" JIC x 5/8" JIC 90 degree male elbow front and rear ports D27961 lift cylinder (See D24070 and D23309) (218-5107)

4шт.

"O" RING SEAL, 218-5107 elbow (218-5007) (Not shown)

1шт.

D27978

HOSE

- valve to rear port of D27961 R.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 30-3/4" long) (See D24571)

1шт.

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- tube to rear port D27961 L.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 26" long) (See D25175)

1шт.

31665

COLLAR CLAMP

CLAMP - hose at dump cylinders

4шт.

5/16" - 18 NC x 1-3/4" hex. head cap screw (13-528)

2шт.

5/16" lockwasher (92-5)

2шт.

5/16" - 18 NC hex. nut (25-105)

2шт.

32978

PLATE ASSY.

CLAMP - mounting tubes to dump, Serial Range: cylinder-frame

6шт.

5/16" - 18 NC x 1-1/4" hex. head cap screw (13-520)

6шт.

5/16" lockwasher (92-5)

6шт.

D20411

CYLINDER - hydraulic dump, L.H. (With tie rods) (Use D27959 cylinder, 218-5107 elbow, and D24070 elbow) (See Figure 37 for breakdown)

1шт.

D20412

CYLINDER - hydraulic dump, R.H. (With tie rods) (Use D27960 cylinder, 218-5107 elbow, and D24070 elbow) (See Figure 37 for breakdown)

1шт.

D23309

ELBOW - 90 degree street, rear port of D20411 and D20412 dump cylinders (1/2" NPT x 1/2" NPT) (See 218-5107 elbow under D27959 and D27960 cylinders)

2шт.

D24070

ELBOW

- 90 degree adjustable street, rear port of D27959 and D27960 dump cylinders when replacing D20411 and D20412 cylinders only) (See 218-5107 under D27959 and D27960)

2шт.

D24571

HOSE

- tube at loader control valve to tube on loader arm (1/2" I.D. x 7/8" O.D x 30-1/4" long)

2шт.

D24597

TUBE - rear port of loader control valve to rear port of dump cylinders

1шт.

5/8" JIC straight connector (218-5062)

1шт.

"O" RING SEAL, 218-5062 connector (218-5007) (Not shown)

1шт.

D24599

TUBE - front port of loader control valve to front port of dump cylinders

1шт.

5/8" JIC straight connector (218-5062)

1шт.

"O" RING SEAL, 218-5062 connector (218-5007) (Not shown)

1шт.

D24601

X

HOSE - tube at loader control valve to tube on loader arm (1/2" I.D. x 7/8" O.D. x 30" long) (When stock is exhausted use D24571)

2шт.

5/8" JIC tube tee (218-595)

2шт.

D24603

TUBE - loader arm to front port of R.H. dump cylinder

1шт.

D24605

TUBE - loader arm to rear port of R.H. dump cylinder

1шт.

D24607

TUBE - loader arm to front port of L.H. dump cylinder

1шт.

D24609

TUBE - loader arm to rear port of L.H. dump cylinder

1шт.

D24611

HOSE - loader arm tube to front port of dump cylinder (1/2" I.D. x 7/8" O.D. x 15" long)

2шт.

D24613

HOSE - loader arm tube to rear port of D20411 and D20412 dump cylinders (1/2" I.D. x 7/8" O.D. x 15" long) (See D27989) (For service use D31239)

2шт.

D24615

TUBE - hose to front port of dump cylinders

2шт.

1/2" NPT x 5/8" JIC 90 degree male elbow front port of D20411 and D20412 dump cylinders (See 318-5107 under D27959 and D27960) (218-485)

2шт.

D27959

CYLINDER - hydraulic dump, L.H. (Without tie rod) (See D20411) (See Figure 38 for breakdown)

1шт.

5/8" JIC x 5/8" JIC 90 degree male elbow front and rear ports of D27959 dump cylinder (See D23309, D24070, and 218-485 under D24615) (218-5107)

2шт.

"O" RING SEAL, 218-5107 elbow (218-5007) (Not shown)

1шт.

D27960

CYLINDER ASSY.

CYLINDER - hydraulic dump, R.H. (Without tie rods) (See D20412) (See Figure 38 for breakdown)

1шт.

5/8" JIC x 5/8" JIC 90 degree male elbow front and rear ports of D27960 dump cylinder (See D23309, D24070, and 218-485 under D24615) (218-5107)

2шт.

"O" RING SEAL, 218-5107 elbow (218-5007) (Not shown)

1шт.

D27989

HOSE

- loader arm tube to rear port of D27959 and D27960 dump cylinders (1/2" I.D. x 7/8" O.D. x 15" long) (See D24613)

2шт.

D31239

HOSE - to dump cylinder rear ports (1/2" I.D. x 7/8" O.D. x 15" long) (Use in place of D24613)

2шт.
