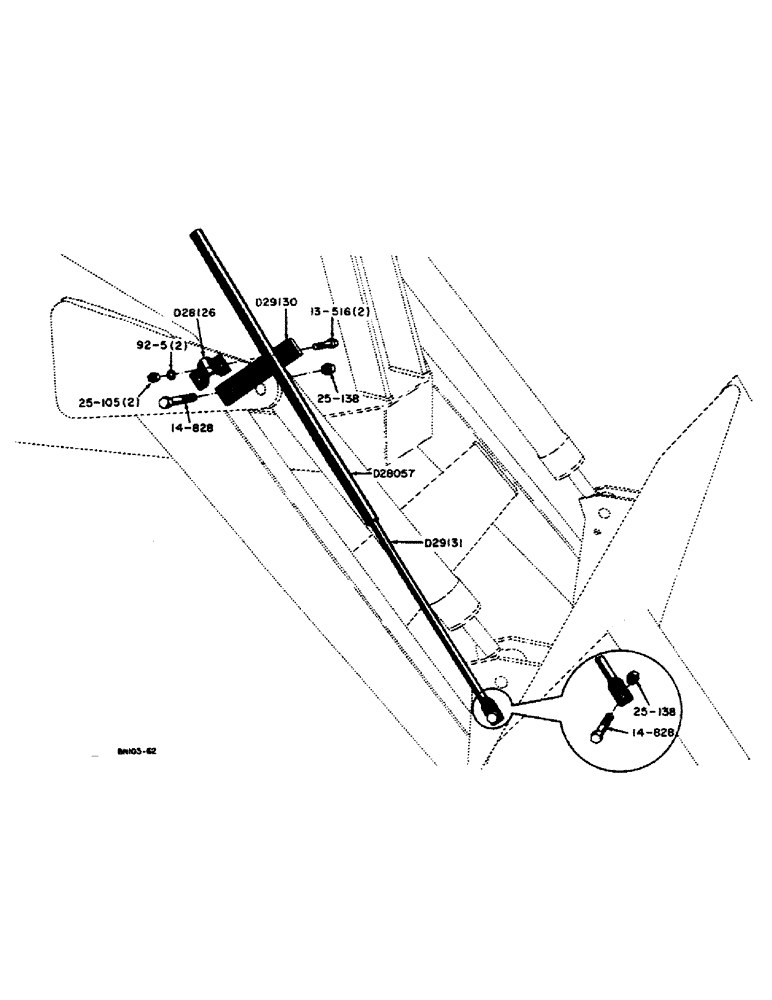

Запчасти Case 31 (008) - BUCKET LEVELING GAUGE ATTACHMENT

D11587

ATTACHMENT - bucket leveling gauge (Includes the following parts - the following parts are also standard equipment on model 31 loaders serial #4065701 and after) (Machinery item)

1шт.

D28057

TUBE - leveling gauge

1шт.

D28126

CLAMP - leveling gauge tube

1шт.

5/16" - 18 NC x 1" hex. head cap screw (13-516)

2шт.

5/16" lockwasher (92-5)

2шт.

5/16" - 18 NC hex. nut (25-105)

2шт.

D29130

BRACKET - leveling gauge

1шт.

1/2" - 20 NF x 1-3/4" hex. head cap screw (14-828)

1шт.

1/2" - 20 NF slotted hex. nut (25-138)

1шт.

D29131

ROD - leveling gauge

1шт.

1/2" - 20 NF x 1-3/4" hex. head cap screw (14-828)

1шт.

1/2" - 20 NF slotted hex. nut (25-138)

1шт.
