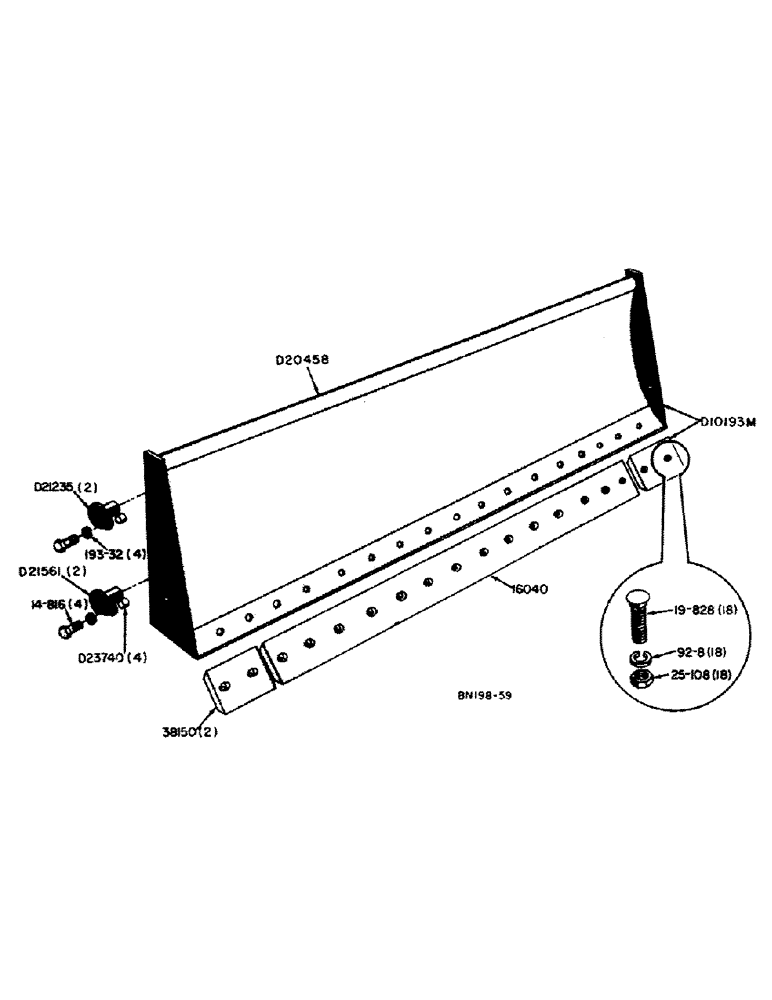

Запчасти Case 31 (057) - BULL DOZER BLADE ATTACHMENT

NLS

NO LONGER SERVICED

BLADE - center

1шт.

1/2" - 13 NC x 1-3/4" plow bolt (19-828)

14шт.

1/2" lockwasher (92-8)

14шт.

1/2" - 13 NC hex. nut (25-108)

14шт.

38150

EDGE

BLADE - end

2шт.

1/2" - 13 NC x 1-3/4" plow bolt (19-828)

4шт.

1/2" lockwasher (92-8)

4шт.

1/2" - 13 NC hex. nut (25-108)

4шт.

D10193

BLADE - bulldozer (Machinery item) (Includes moldboard and blade)

1шт.

D20458

MOLDBOARD - dozer

1шт.

D21235

PIN - blade bucket cylinders

2шт.

1/2" - 20 NF x 1" hex. head cap screw (14-816)

2шт.

1/2" lockwasher, Shakeproof (193-32)

2шт.

D21561

AXLE PIN

PIN - blade to bucket cylinders

2шт.

1/2" - 20 NF x 1" hex. head cap screw (14-816)

2шт.

1/2" lockwasher, Shakeproof (193-32)

2шт.

D23740

BUSHING

- lockhead pin bolt

4шт.
