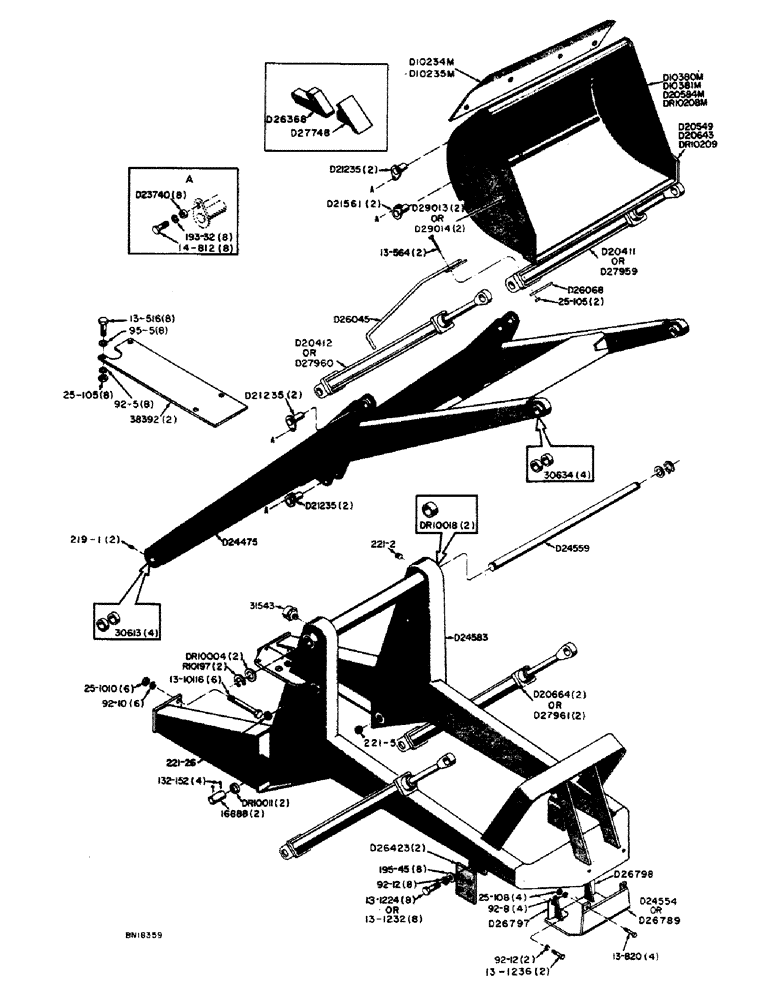

Запчасти Case 31 (004) - FRAME, LIFT ARM, BUCKETS, AND CYLINDERS

T14011

ELEMENT

- breather 31543 breather (Two used on backhoe models)

1шт.

16888

PIN - lift, Serial Range: cylinder-frame

2шт.

1/4" x 1-3/4" cotter pin (132-152)

4шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- arm at frame

4шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- arm at bucket

4шт.

31543

BREATHER

- reservoir (Includes 1 - T14011 element) Two used on backhoe models

1шт.

38392

SPACER - floor plate

2шт.

5/16" - 18 NC x 1" hex. head cap screw (13-516)

8шт.

5/16" plain washer (95-5)

8шт.

5/16" lockwasher (92-5)

8шт.

5/16" - 18 NC hex. nut (25-105)

8шт.

D20411

CYLINDER - hydraulic dump, L.H. (With tie rods) Use D27959 cylinder, D24070 elbow, and 218-5107 elbow when stock is exhausted (See Figure 37 for breakdown)

1шт.

D20412

CYLINDER - hydraulic dump, R.H. (With tie rods) Use D27960 cylinder, D24070 elbow, and 218-5107 elbow when stock is exhausted (See Figure 37 for breakdown)

1шт.

D20664

CYLINDER - hydraulic lift (With tie rods) Use D27961 cylinder, D24070 elbow, and 218-5107 elbow when stock is exhausted (See Figure 35 for breakdown)

2шт.

D21235

PIN - pivot lift cylinder to loader arm, dump cylinder to loader arm, and dump, Serial Range: cylinder-bucket

6шт.

1/2" - 20 NF x 3/4" hex. head cap screw (14-812)

6шт.

1/2" lockwasher (193-32)

6шт.

D21331

PIN - pivot, dump cylinder to loader arm (Use D21235)

2шт.

1/2" - 20 NF x 3/4" hex. head cap screw (14-812)

2шт.

1/2" lockwasher (193-32)

2шт.

D21561

AXLE PIN

PIN - pivot, bucket to loader arms

2шт.

1/2" - 20 NF x 3/4" hex. head cap screw (14-812)

2шт.

1/2" lockwasher (193-32)

2шт.

D23740

BUSHING

- lockhead pin bolt

8шт.

D24070

ELBOW

- 90 degree adjustable street, rear port of D27961 lift cylinder, D27959 and D27960 dump cylinders when replacing D20664, D20411, and D20412 cylinders only (See 218-5107 under D27959, D27960, nad D27961) (Not shown)

4шт.

"O" RING SEAL, D24070 elbow (218-5007)

1шт.

D24475

ARM - loader (Includes 4 - 30613 bushings and 4 - 30634 bushings)

1шт.

D24554

GUARD - pump (Use D26789 guard, D26797 bracket, and D26798 bracket)

1шт.

3/4" - 10 NC x 2-1/4" hex. head cap screw (13-1236)

2шт.

3/4" lockwasher (92-12)

2шт.

1/2" - 13 NC x 1-1/4" hex. head cap screw (13-820)

4шт.

1/2" lockwasher (92-8)

4шт.

1/2" - 13 NC hex. nut (25-108)

4шт.

D24559

SHAFT - cross

1шт.

D24583

FRAME - loader (Includes 2 - DR10011 and 2 - DR10018 bushings)

1шт.

3/4" NPT square head pipe plug (Replaces 1 - 221-26 in later production) (221-5)

1шт.

1" NPT socket head pipe plug (221-26)

1-2шт.

1/4" NPT square head pipe plug (221-2)

1шт.

5/8" - 11 NC x 7-1/4" hex. head cap screw (13-10116)

6шт.

5/8" lockwasher (92-10)

6шт.

5/8" - 11 NC hex. nut (25-1010)

6шт.

3/4" - 10 NC x 2" hex. head cap screw (Used with D26423 plate) (13-1232)

8шт.

3/4" - 10 NC x 1-1/2" hex. head cap screw (Used with 195-45 washer) (13-1224)

8шт.

3/4" lockwasher (92-12)

8шт.

3/4" plain washer (195-45) (See D26423)

8шт.

D26045

TUBE - level (Early production) (See Figure 8 for late production and attachment)

1шт.

D26068

BRACKET - clamp

1шт.

5/16" - 18 NC x 4" hex. head cap screw (13-564)

2шт.

516" - 18 NC hex. nut (25-105)

2шт.

D26423

PLATE - spacer, loader frame (See 195-45 under D24583)

2шт.

D26789

GUARD ASSY.

GUARD - pump

1шт.

D26797

BRACKET - pump guard, R.H.

1шт.

D26798

BRACKET

- pump guard, L.H.

1шт.

D27959

CYLINDER - hydraulic dump, L.H. (Without tie rods) See D20411 (See Figure 38 for breakdown)

1шт.

5/8" JIC x 5/8" JIC 90 degree male elbow front and rear port of D27959 dump cylinder (See D24070) (218-5107) (Not shown)

2шт.

"O" RING SEAL, 218-5107 elbow (218-5007) (Not shown)

1шт.

D27960

CYLINDER ASSY.

CYLINDER - hydraulic dump, R.H. (Without tie rods) See D24012 (See Figure 38 for breakdown)

1шт.

5/8" JIC x 5/8" JIC 90 degree male elbow front and rear ports D27960 dump cylinder (See D24070) (218-5107)

2шт.

"O" RING SEAL, 218-5107 elbow (218-5007)

1шт.

D27961

CYLINDER - hydraulic lift (Without tie rods) See D20664 (See Figure 36 for breakdown)

2шт.

5/8" JIC x 5/8" JIC 90 degree male elbow front and rear ports of D27961 lift cylinder (See D24070) (218-5107)

4шт.

"O" RING SEAL, 218-5107 elbow (218-5007)

1шт.

DR10004

WASHER

- cross shaft (1-17/32" I.D. x 2-1/2" O.D. x 1/8" thick)

2шт.

DR10011

BUSHING

- frame at lift cylinder mounting

2шт.

DR10018

BUSHING - frame upright to loader arm

2шт.

R10197

RING

SNAP RING - retaining, cross shaft

2шт.

D10380

BUCKET - loader, 79-3/8" wide (Snow) (1 cu. yd.) (Includes blade), machinery items (listed by width)

1шт.

D20549

EDGE

BLADE - cutting, D10380 bucket, machinery items (listed by width)

1шт.

D10381

BUCKET - loader, 63-3/8" wide (Dry material) (2/3 cu. yd.) (Includes blade), machinery items (listed by width)

1шт.

DR10209

EDGE

BLADE - cutting, D10381 bucket, machinery items (listed by width)

1шт.

D20584

BUCKET - loader, 56-1/8" wide (13 cu. ft.) (Includes blade), machinery items (listed by width)

1шт.

D20643

BLADE - cutting, D20584 bucket, machinery items (listed by width)

1шт.

DR10208

BUCKET - loader, 63-1/8" wide (15 cu. ft.) (Includes blade), machinery items (listed by width)

1шт.

DR10209

EDGE

BLADE - cutting, DR10208 bucket, machinery items (listed by width)

1шт.

D10234

GUARD - spill (D20584 bucket) (Machinery item), parts

1шт.

D10235

GUARD - spill (D10381 and DR10208 buckets) (Machinery item), parts

1шт.

D26368

SUPPORT

SHANK - digging tooth (Optional) (D20584 uses 7 and DR10208 uses 8), parts for buckets

1шт.

D27748

TOOTH

- digging (Optional) (D20584 uses 7 and DR10208 uses 8), parts for buckets

1шт.

D29013

PLATE - reinforcing, DR10208 and D10381 buckets (Not shown), parts

2шт.

D29014

PLATE - reinforcing, D10380 and D20584 buckets (Not shown), parts

2шт.
