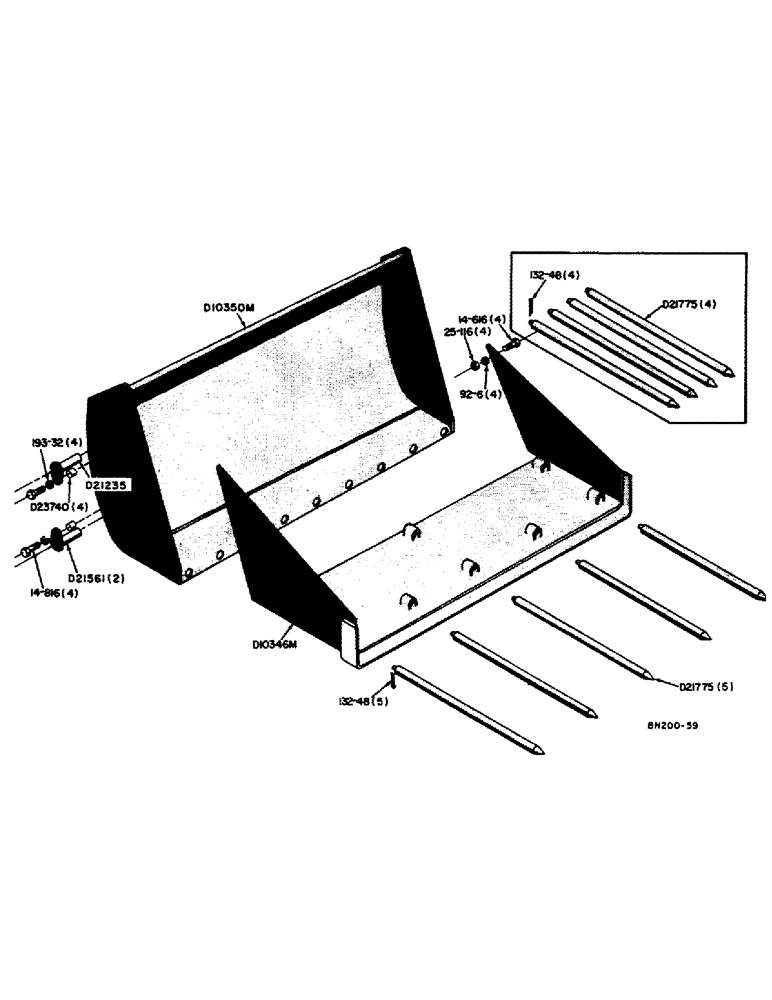

Запчасти Case 31 (054) - MANURE FORK ATTACHMENT, TINES, AND DIRT PLATE

D10346

PLATE - dirt (Machinery item)

1шт.

3/8" - 24 NF x 1" hex. head cap screw (14-616)

4шт.

3/8" lockwasher (92-6)

4шт.

3/8" - 24 NF hex. nut (25-116)

4шт.

D10350

FORK - manure (Includes 5 - D21775 tines) (Use D11482 on Figure 55) (Machinery item)

1шт.

D21235

PIN - bucket to dump cylinder

2шт.

1/2" - 20 NF x 1" hex. head cap screw (14-816)

2шт.

1/2" lockwasher, Shakeproof (193-32)

2шт.

D21561

AXLE PIN

PIN - bucket to loader arm

2шт.

1/2" - 20 NF x 1" hex. head cap screw (14-816)

2шт.

1/2" lockwasher, Shakeproof (193-32)

2шт.

D21775

TINE - manure

5-9шт.

1/8" cotter pin (132-48)

5-9шт.

D23740

BUSHING

- lockhead pin bolt

4шт.
