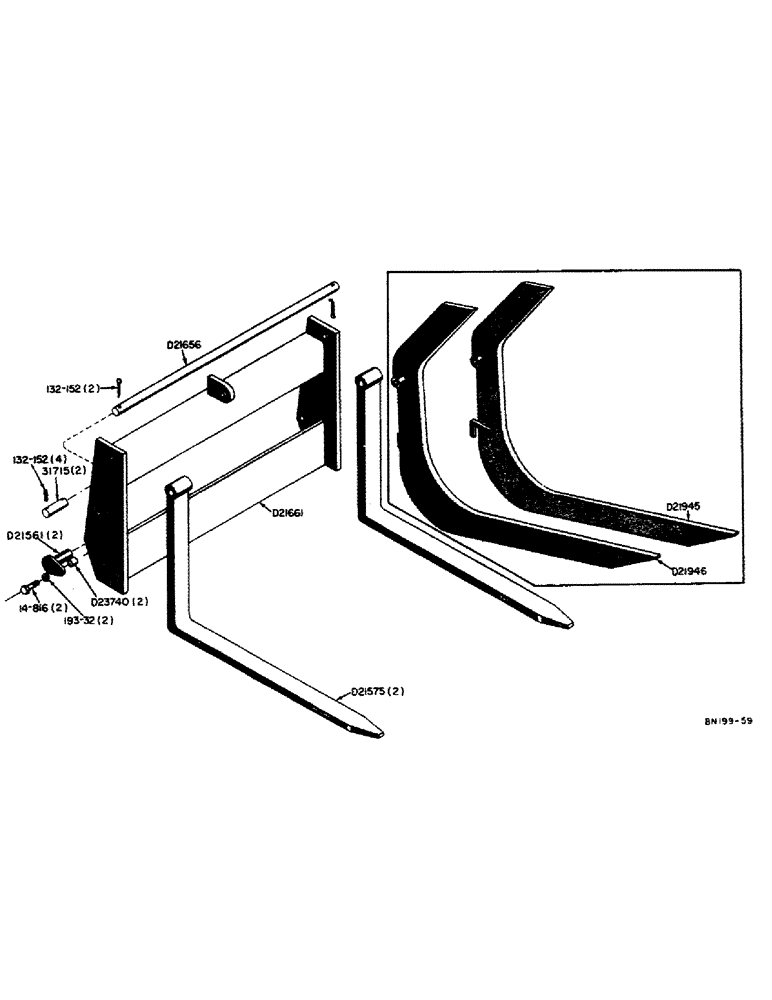

Запчасти Case 31 (053) - LOGGING AND PALLET FORKS ATTACHMENTS

31715

PIN

- support to dump cylinder

2шт.

1/4" x 1-3/4" cotter pin (132-152)

4шт.

D10348

ATTACHMENT - logging forks (Machinery item)

1шт.

D10351

ATTACHMENT - pallet lift forks (Machinery item)

1шт.

D21561

AXLE PIN

PIN - support to loader arm

2шт.

1/2" - 20 NF x 1" hex. head cap screw (14-816)

2шт.

1/2" lockwasher, Shakeproof (193-32)

2шт.

D21575

FORK TEDDER

FORK - pallet lift

2шт.

D21656

SHAFT

- fork support

1шт.

1/4" x 1-3/4" cotter pin (132-152)

2шт.

D21661

SUPPORT - fork

1шт.

D21945

FORK - logging, L.H.

1шт.

D21946

FORK - logging, R.H.

1шт.

D23740

BUSHING

- lockhead pin bolt

2шт.
