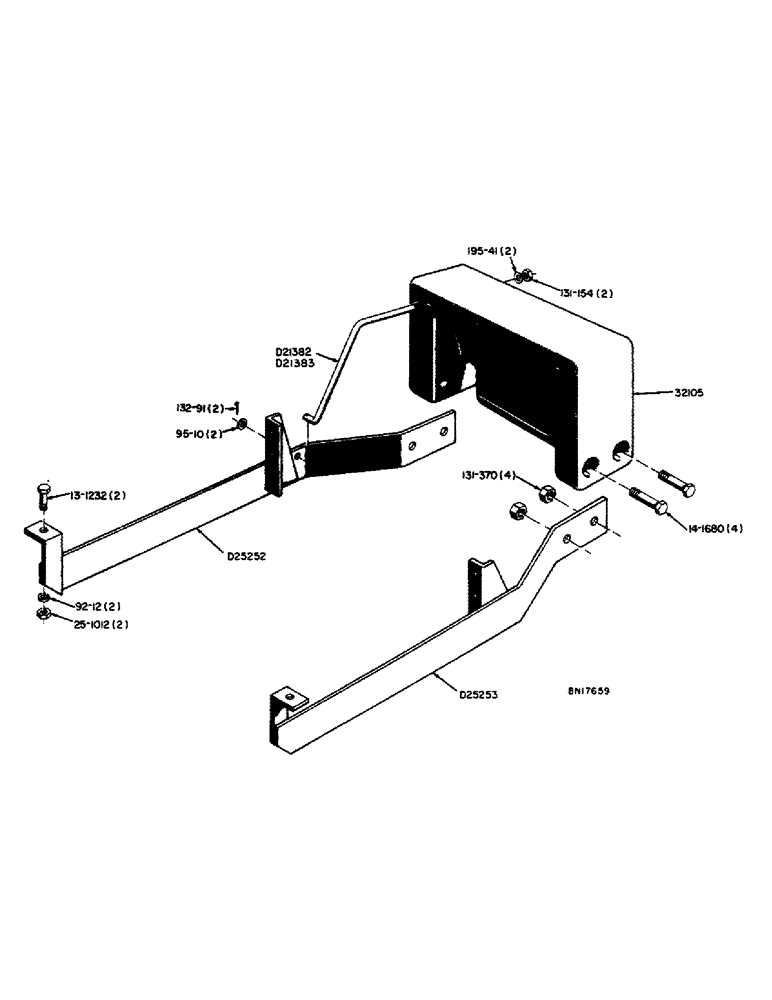

Запчасти Case 31 (052) - 900 LB. REAR COUNTER WEIGHT

32105

COUNTERWEIGHT - 900 lb. rear

1шт.

1" - 14 NF x 5" hex. head cap screw (14-1680)

4шт.

1" - 14 NF hex. nut (131-370)

4шт.

D21382

ROD - stabilizer, R.H.

1шт.

D21383

ROD - stabilizer, L.H.

1шт.

5/8" plain washer (195-41)

2шт.

5/8" plain washer (95-10)

2шт.

5/8" - 18 NF hex. lock nut (131-154)

2шт.

3/16" x 1" cotter pin (132-91)

2шт.

D25252

ARM - support, R.H.

1шт.

D25253

ARM - support, L.H.

1шт.

3/4" - 10 NC x 2" hex. head cap screw (13-1232)

2шт.

3/4" lockwasher (92-12)

2шт.

3/4" - 10 NC hex. nut (25-1012)

2шт.
