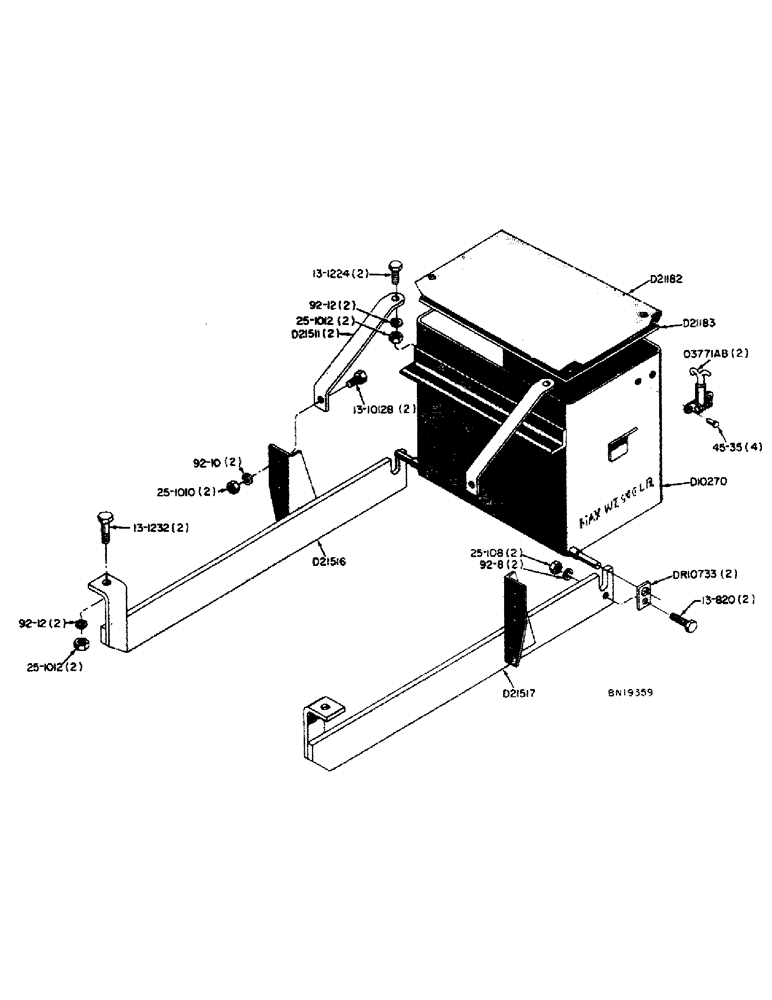

Запчасти Case 31 (051) - 900 LB. REAR WEIGHT BOX (WITHOUT EAGLE HITCH)

O3771AB

X

CATCH - lid

2шт.

3/16" x 5/16" button head rivet (45-35)

4шт.

D10270

BOX - weight, 900 lb. (Includes latches, lid and shelf)

1шт.

D21182

LID - weight box

1шт.

D21183

SHELF - tool, weight box

1шт.

D21511

BRACE - weight box

2шт.

3/4" - 10 NC x 1-1/2" hex. head cap screw (13-1224)

2шт.

3/4" - lockwasher (92-12)

2шт.

3/4" - 10 NC hex. nut (25-1012)

2шт.

D21516

ARM - support, R.H.

1шт.

D21517

ARM - support, L.H.

1шт.

3/4" - 10 NC x 2" hex. head cap screw (13-1232)

2шт.

3/4" lockwasher (92-12)

2шт.

3/4" - 10 NC hex. nut (25-1012)

2шт.

5/8" - 11 NC x 8" hex. head cap screw (13-10128)

2шт.

5/8" lockwasher (92-10)

2шт.

5/8" - 11 NC hex. nut (25-1010)

2шт.

DR10733

STRAP - mounting

2шт.

1/2" - 13 NC x 1-1/4" hex. head cap screw (13-820)

2шт.

1/2" lockwasher (92-8)

2шт.

1/2" - 13 NC hex. nut (25-108)

2шт.
