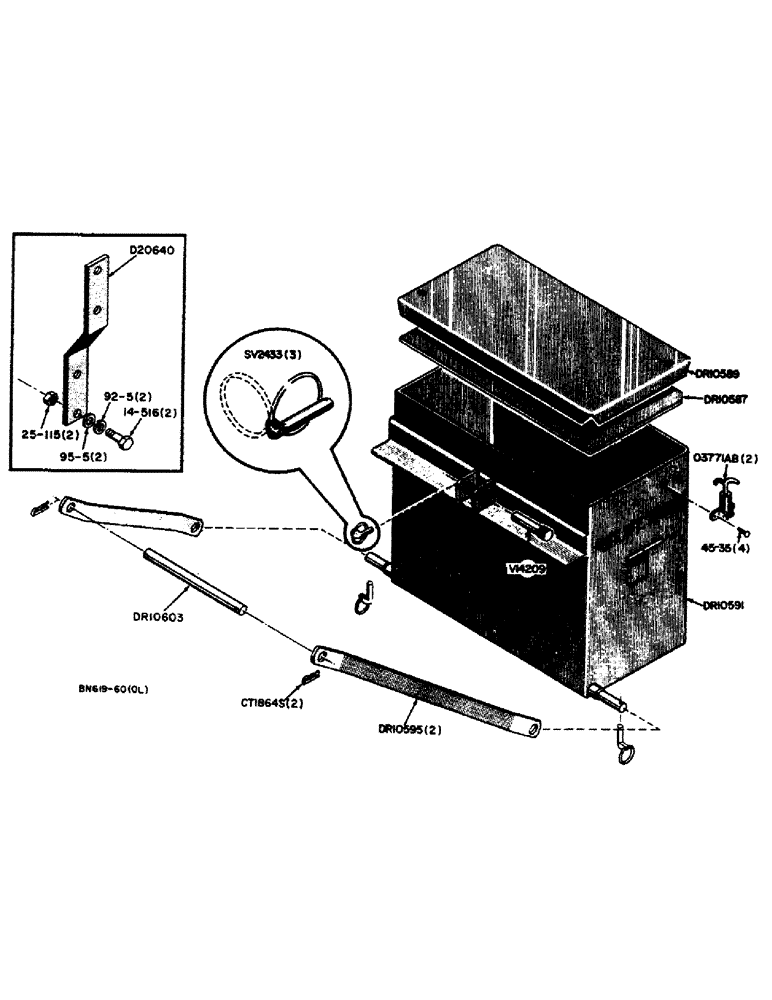

Запчасти Case 31 (050) - 700 LB. REAR WEIGHT BOX (WITH EAGLE HITCH)

O3771AB

X

CATCH - lid

2шт.

3/16" x 5/16" button head rivet (45-35)

4шт.

CT1864S

X

PIN - spring, shaft retaining

2шт.

SV2433

X

KLIK PIN - retaining, support straps and mast pin

3шт.

V14209

X

PIN - hitch, mast

1шт.

D20640

BRACKET - taillight mounting

1шт.

5/16" - 14 NF x 1" hex. head cap screw (14-516)

2шт.

5/16" lockwasher (92-5)

2шт.

5/16" plain washer (95-5)

2шт.

5/16" - 14 NF hex. nut (25-115)

2шт.

DR10587

SHELF - tool, weight box

1шт.

DR10589

LID - weight box

1шт.

DR10591

BOX - weight, 700 lb. (Includes latches, lid and shelf)

1шт.

DR10595

STRAP - support

2шт.

DR10603

SHAFT - turnbuckle pivot

1шт.
