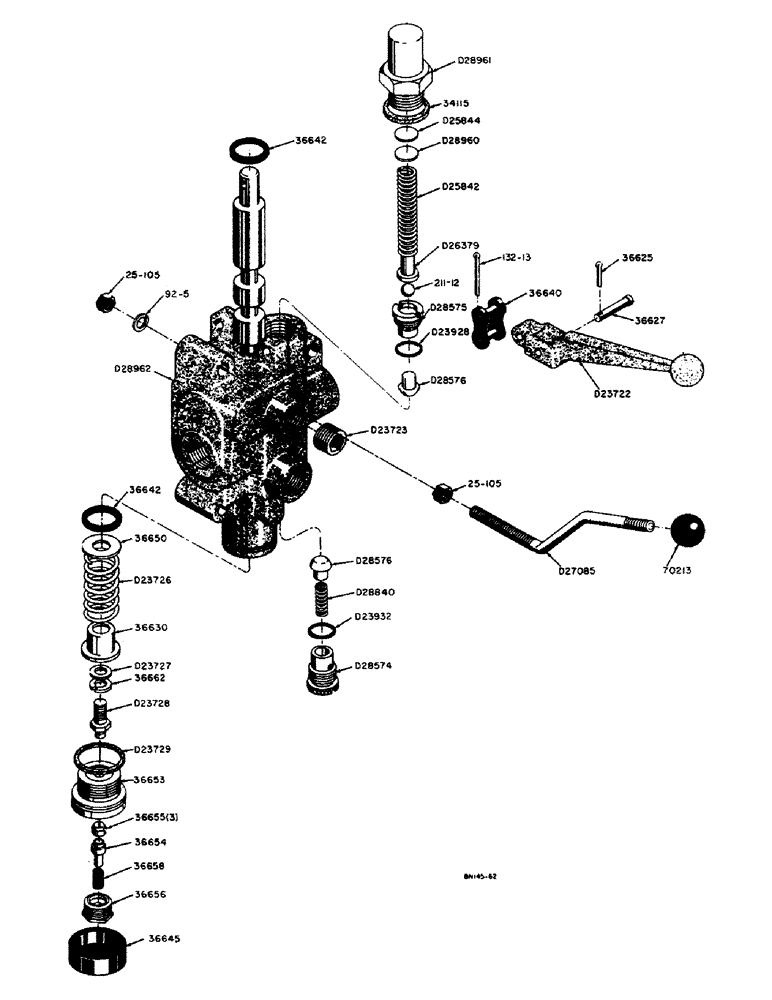

Запчасти Case 31 (046) - LANDSCAPERS CONTROL FOR EAGLE HITCH

A7450

X

BALL - relief valve (Use 211-12)

1шт.

7/16" dia. steel ball (211-12)

1шт.

34115

GASKET

- relief valve body

1шт.

CAS36630

COLLAR

- stop

1шт.

36642

SEAL

- spool

2шт.

36645

CAP

- rubber, spool end

1шт.

36650

WASHER

- stop

1шт.

NLS

NO LONGER SERVICED

- float detent

1шт.

NLS

NO LONGER SERVICED

HOLDER - float detent fingers

1шт.

36655

- float detent

3шт.

36656

CLIP

CAP - float detent spring

1шт.

36658

ROD

SPRING - float detent

1шт.

36662

GEAR

WASHER - lock, float spool

1шт.

D23723

PLUG

- port

1шт.

D23726

SPRING - centering

1шт.

D23727

WASHER - float

1шт.

D23728

ADAPTER - float detent

1шт.

D23729

GASKET - float detent cap

1шт.

D23928

O-RING

SEAL - "O" ring, relief valve seat

1шт.

D23932

X

SEAL - "O" ring, rear check plug

1шт.

D25842

SPRING

- relief valve

1шт.

D25844

SHIM,.0097" Thk

Relief valve .0097" Thk

1шт.

D26379

GUIDE - relief valve spring

1шт.

D28574

PLUG

- lower check

1шт.

D28575

SEAT

- relief valve

1шт.

D28576

VALVE POPPET

POPPET - check

2шт.

D28840

SPRING

- lower check poppet

1шт.

D28960

SHIN

SHIM - relief valve (.006" thick)

1шт.

D28961

BODY - relief valve

1шт.

D28962

VALVE - hydraulic landscaper's control (Complete)

1шт.

36625

X

PIN - cotter (5/64" x 1/2"), levers and associated parts (not included with D28962 valve)

1шт.

36627

SEAT

PIN - control valve lever, associated parts (not included with D28962)

1шт.

36640

DRAG LINK

LINK - valve lever, associated parts (not included with D28962)

1шт.

1/16" x 1-1/2" cotter pin (132-13), levers and associated parts (not included with D28962 valve)

1шт.

70213

KNOB

- hand rest, levers and associated parts (not included with D28962 valve)

1шт.

D23722

HANDLE

LEVER - valve, associated parts (not included with D28962)

1шт.

D27085

SEAL ASSY.

REST - hand, levers and associated parts (not included with D28962 valve)

1шт.

3/8" lockwasher (92-5), levers and associated parts (not included with D28962 valve)

1шт.

3/8" - 16 NC hex. nut (25-105), levers and associated parts (not included with D28962 valve)

2шт.
