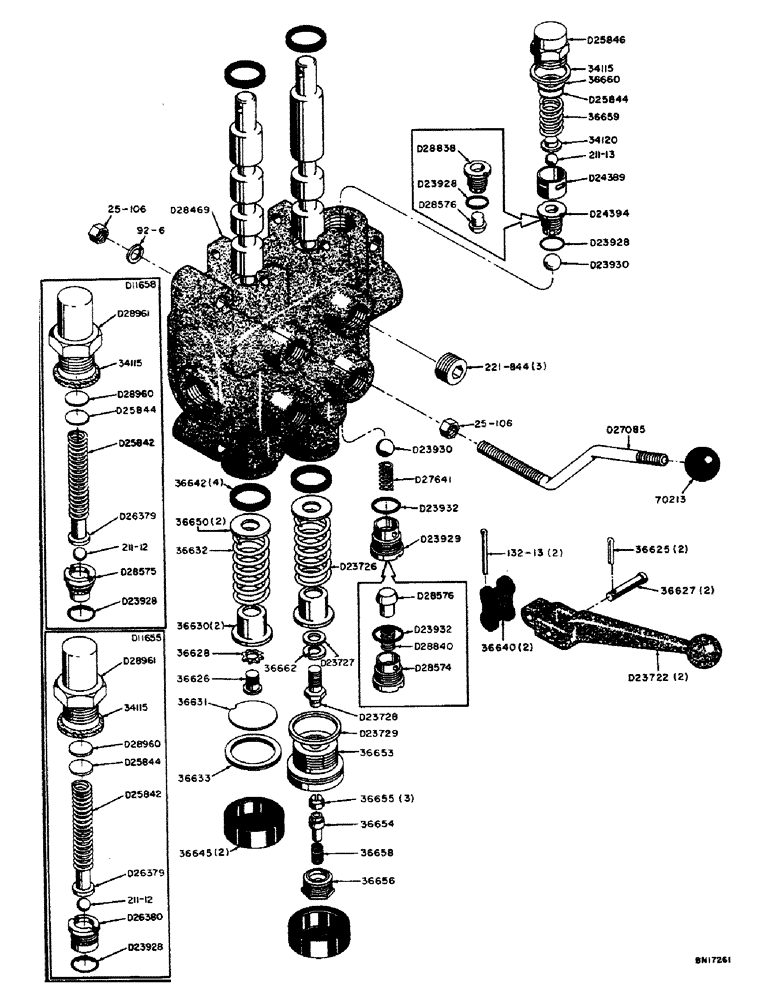

Запчасти Case 31 (042) - LANDSCAPERS CONTROL FOR EAGLE HITCH

O7210AB

X

BALL - relief valve (Use 211-13)

1шт.

1/2" dia. steel ball (211-13)

1шт.

34115

GASKET

- relief valve body

1шт.

CAS34120

BUSHING

SPACER - relief valve

1шт.

36626

HOSE CLIP

BOLT - centering spring

1шт.

36628

LOCK WASHER

- lock, centering spring

1шт.

36630

DRAWBAR SUPPORT

- stop

2шт.

663023R1

CAP

- stop

1шт.

36632

SPRING

- centering (3 position spool)

1шт.

36633

LID

SNAP RING - stop disc

1шт.

36642

SEAL

RING - wedge, spool seal

4шт.

36645

CAP

- rubber, spool end

2шт.

36650

WASHER

- spool stop

2шт.

36653

- float detent

1шт.

NLS

NO LONGER SERVICED

HOLDER - finger, float detent

1шт.

NLS

NO LONGER SERVICED

- float detent

3шт.

36656

CLIP

CAP - float detent spring

1шт.

36658

ROD

SPRING - float detent

1шт.

36659

SPRING

- relief valve

1шт.

36660

WASHER

- relief valve spring

1шт.

36662

GEAR

WASHER - lock, float spool

1шт.

D23726

SPRING - centering (4 postition spool)

1шт.

D23727

WASHER - float

1шт.

D23728

ADAPTER - float detent

1шт.

D23729

GASKET - float detent cap

1шт.

D23928

O-RING

SEAL - "O" ring, relief valve seat

1шт.

D23929

PLUG

- front check ball (Used with D23930 ball) (See D28574 plug)

1шт.

D23930

BALL

- check (Used with D23929 plug) (See D28576)

2шт.

D23932

X

SEAL - "O" ring, D23929 or D28574 plug

1шт.

D24389

COLLAR - jam (Not required - no longer furnished)

1шт.

D24394

SEAT - relief valve

1шт.

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

D25846

BODY

- relief valve

1шт.

D27641

SPRING - lower check ball (Used with D23930 ball) (See D28840)

1шт.

D28469

VALVE - hydraulic, landscaper's control (Complete)

1шт.

1/2" hex. socket head pipe plug (221-844)

3шт.

D28574

PLUG

- front check poppet (Used with D28576 poppet) (See D23929)

1шт.

D28576

VALVE POPPET

POPPET - check (Used with D28574 plug) (See D23930)

2шт.

D28838

SEAT - relief valve (Used with D28576 poppet) (See D24394)

1шт.

D28840

SPRING

- check (Used with D28576 poppet) (See D27641)

1шт.

A7450

X

BALL - main relief valve (Use 211-12), D11655 kit (optional)

1шт.

7/16" dia. steel ball (211-12), D11655 main relief valve kit (optional)

1шт.

34115

GASKET

- main relief valve, D11655 kit (optional)

1шт.

D23928

O-RING

SEAL - main relief valve seat, D11655 kit (optional)

1шт.

D25842

SPRING

- main relief valve, D11655 kit (optional)

1шт.

D25844

SHIM,.0097" Thk

Main relief valve, D11655 kit (optional) .0097" Thk

1шт.

D26379

GUIDE - main relief valve spring, D11655 kit (optional)

1шт.

D26380

SEAT

- main relief valve, D11655 kit (optional)

1шт.

D28960

SHIN

SHIM - main relief valve (.006" thick), D11655 kit (optional)

1шт.

D28961

CAP - main relief valve, D11658kit (optional)

1шт.

A7450

X

BALL - main relief valve (Use 211-12), D11658(optional)

1шт.

7/16" dia. steel ball (211-12), D11658 main relief valve kit (optional)

1шт.

34115

GASKET

- main relief valve, D11658 kit (optional)

1шт.

D23928

O-RING

SEAL - main relief valve seat, D11658 kit (optional)

1шт.

D25842

SPRING

- main relief valve, D11658 kit (optional)

1шт.

D25844

SHIM,.0097" Thk

Main relief valve, D11658 kit (optional) .0097" Thk

1шт.

D26379

GUIDE - main relief valve spring, D11658 kit (optional)

1шт.

D28575

SEAT

- main relief valve, D11658 kit (optional)

1шт.

D28960

SHIN

SHIM - main relief valve (.006" thick), D11658 kit (optional)

1шт.

D28961

CAP - main relief valve, D11658 kit (optional)

1шт.

36625

X

PIN - cotter (5/64" x 1/2") Handle, levers and associated parts (not included with D28469 valve)

2шт.

36627

SEAT

PIN - control valve lever, associated parts ( not included with D28469)

2шт.

36640

DRAG LINK

LINK - valve lever, associated parts (not included with D28469)

2шт.

1/16" x 1-1/2" cotter pin (132-13), levers and associated parts (not included with D28469 valve)

2шт.

70213

KNOB

- hand rest, levers and associated parts (not included with D28469 valve)

1шт.

D23722

HANDLE

LEVER - valve, associated parts (not included with D28469)

2шт.

D27085

SEAL ASSY.

REST - hand, levers and associated parts (not included with D28469 valve)

1шт.

3/8" lockwasher (92-6), levers and associated parts (not included with D28469 valve)

1шт.

3/8" - 16 NC hex. nut (25-106), levers and associated parts (not included with D28469 valve)

2шт.
