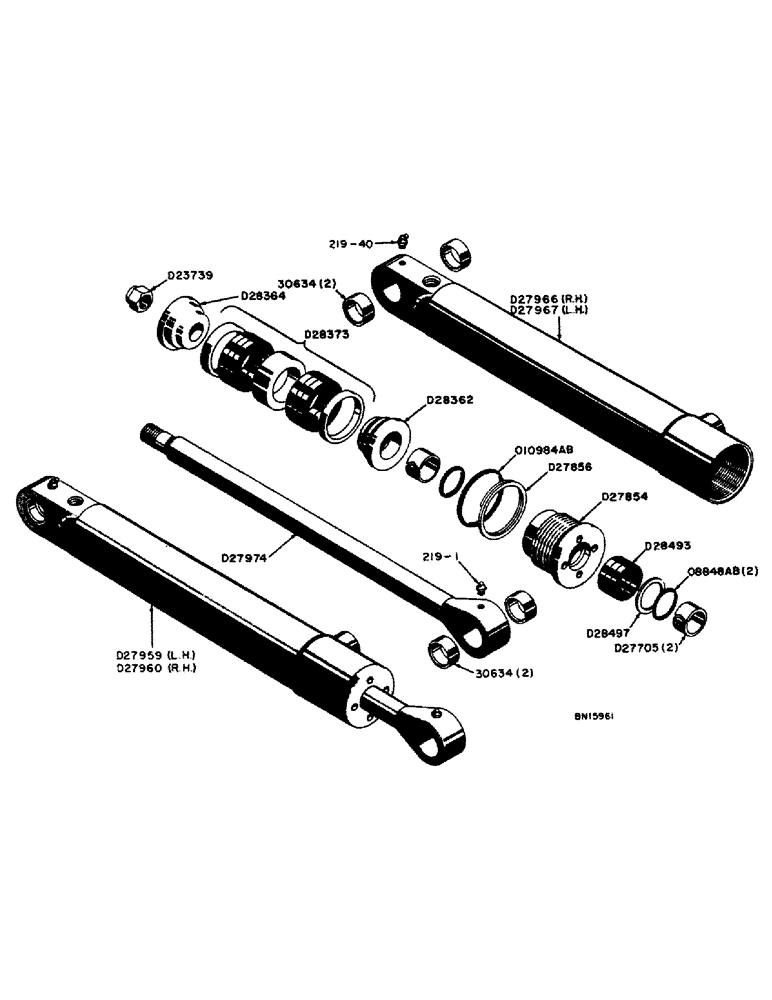

Запчасти Case 31 (038) - D27959 AND D27960 HYDRAULIC DUMP CYLINDERS

O8848AB

X

SEAL - "O" ring, gland packing

2шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

O10984AB

X

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod and cylinder ends

4шт.

D23739

LOCK NUT

NUT - hex. lock (3/4" - 16 NF)

1шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

D27705

WIPER

- piston rod

2шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

D27854

GLAND

- packing

1шт.

D27856

RING

- backup, gland seal

1шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

D27959

CYLINDER - hydraulic dump (L.H.) (2-1/2" I.D. x 20-11/16" stroke)

1шт.

D27960

CYLINDER ASSY.

CYLINDER - hydraulic dump (R.H.) (2-1/2" I.D. x 20-11/16" stroke)

1шт.

D27966

TUBE - cylinder, R.H. (Includes 2 - 30634 bushings)

1шт.

D27967

TUBE - cylinder, L.H. (Includes 2 - 30634 bushings)

1шт.

1/8" NPT 67-1/2 degree grease fitting (219-40)

1шт.

D27974

ROD

- piston (Includes 2 - 30634 bushings) (1-1/4" dia.)

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

NLS

NO LONGER SERVICED

PISTON - half, front

1шт.

D28364

PISTON

- half, rear

1шт.

D28373

PACKING

- kit, piston (Includes chevrons and spacers)

1шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

D28493

X

SEAL - rod

1шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

D28497

RING

- backup, rod seal

1-3шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

3/16" x 5/8" roll pin (138-90) (If used)

1шт.

Part of Cylinder Packing Kit P/N D30126

1шт.

D30126

X

KIT - cylinder packing, Includes: P/N O8848AB, O10984AB, D23739, D27705, D27856, D28373, D28493, D28497 and the roll pin shown below P/N D28497

1шт.
