Запчасти Case 31 (037) - D20411 AND D20412 HYDRAULIC BUCKET CYLINDERS

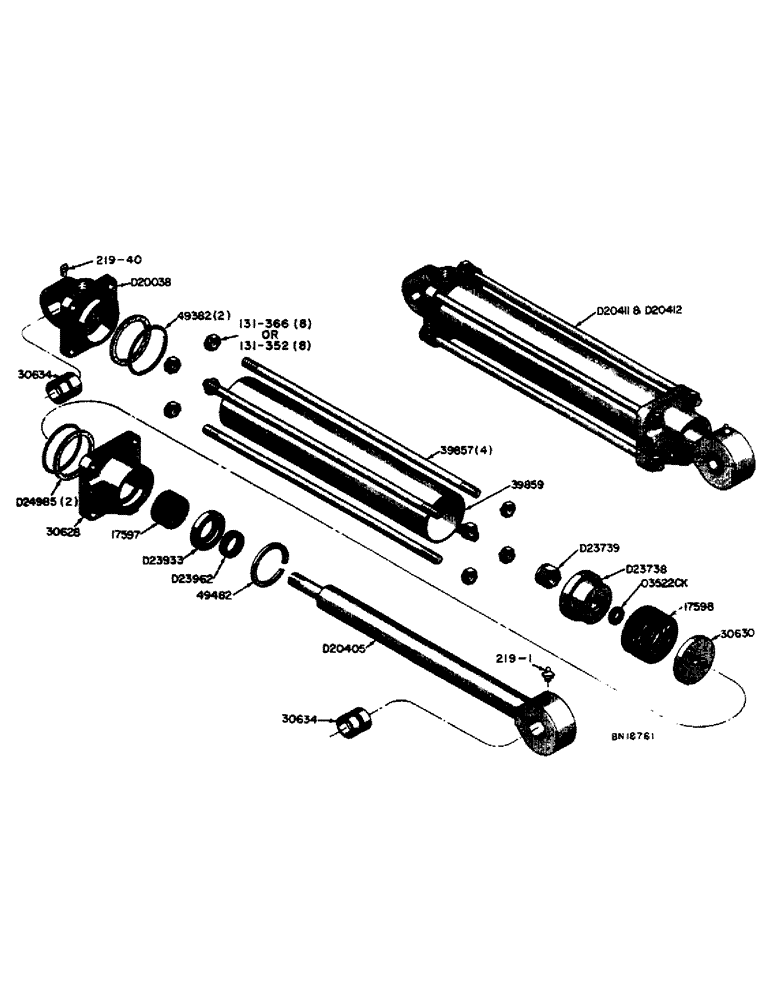

Схема запчастей Case 31 - (037) - D20411 AND D20412 HYDRAULIC BUCKET CYLINDERS

Артикул

Название

Примечание

Количество

O3522CK

X

SEAL - "O" ring, piston

1шт.

Part of Cylinder Packing Kit P/N D30135

1шт.

17597

PACKING

- piston rod

1шт.

Part of Cylinder Packing Kit P/N D30135

1шт.

17598

PACKING

- piston

1шт.

Part of Cylinder Packing Kit P/N D30135

1шт.

30628

CAP - end, cylinder

1шт.

30630

CARTRIDGE

WASHER - piston packing

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod and cylinder end

4шт.

39857

GASKET

ROD - tie

4шт.

3/8" - 24 NF lock nut, tie rod with NF thread (131-366)

8шт.

3/8" - 16 NC lock nut, tie rod with NC thread (131-352)

8шт.

NLS

NO LONGER SERVICED

TUBE - cylinder (39859)

1шт.

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends

2шт.

Part of Cylinder Packing Kit P/N D30135

1шт.

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , piston rod packing 2.125", Int, #212

1шт.

Part of Cylinder Packing Kit P/N D30135

1шт.

D20038

END - cylinder (Includes 2 - 30634 bushings)

1шт.

1/8" NPT 67-1/2 degree grease fitting (219-40)

1шт.

D20405

ROD - piston (Includes 2 - 30634 bushings) (1-1/4" dia.)

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D20411

CYLINDER - hydraulic bucket, L.H. (2-1/2" I.D. x 20-11/16" stroke)

1шт.

D20412

CYLINDER - hydraulic bucket, R.H. (2-1/2" I.D. x 20-11/16" stroke)

1шт.

D23738

BLOCK

PISTON - cylinder

1шт.

D23739

LOCK NUT

NUT - lock, 3/4" - 16 NF

1шт.

D23933

GLAND

WASHER - piston rod packing

1шт.

Part of Cylinder Packing Kit P/N D30135

1шт.

D23962

SEAL

- oil, wiper

1шт.

Part of Cylinder Packing Kit P/N D30135

1шт.

D24985

RING

- leather backup

2шт.

Part of Cylinder Packing Kit P/N D30135

1шт.

D30135

PACKAGE, REPAIR

KIT - cylinder packing, Includes: P/N O3522CK, 17597, 17598, 49382, 49482, D23933, D23962 and D24985

1шт.

Выбрано товаров: 32
