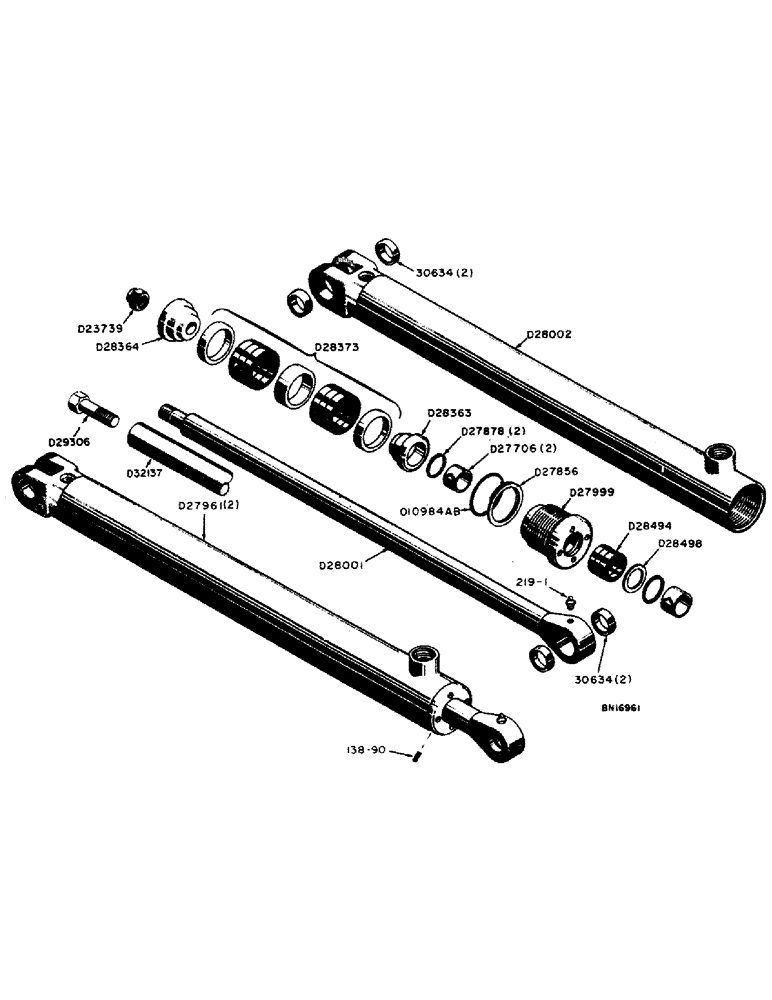

Запчасти Case 31 (036) - D27961 HYDRAULIC LIFT CYLINDERS

O10984AB

X

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder and rod ends

4шт.

D23739

LOCK NUT

NUT - hex. lock (3/4" - 16 NF) (If used)

1шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

D27706

WIPER SEAL

WIPER - piston rod

2шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

D27856

RING

- backup, gland seal

1шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, gland packing

2шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

D27961

CYLINDER - hydraulic lift, complete (2-1/2" dia. x 31-7/16" stroke)

2шт.

D27999

GLAND

- packing

1шт.

D28001

ROD - piston, 1-1/2" dia. (Includes 2 - 30634 bushings) (When stock is exhausted use 1 - D32137 rod and 1 - D29306 capscrew)

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D28002

TUBE - cylinder (Includes 2 - 30634 bushings)

1шт.

D28363

PISTON

- half, front

1шт.

D28364

PISTON

- half, rear

1шт.

D28373

PACKING

- kit, piston (Includes chevrons and spacers)

1шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

D28494

SEAL

- rod

1шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

D28498

RING

- backup, rod seal

1-3шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

D29306

BOLT

SCREW - cap, special (3/4" - 16 NF x 2-1/2") (If used)

1шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

3/16" x 5/8" roll pin (138-90) (If used)

1шт.

Part of Cylinder Packing Kit P/N D30128

1шт.

D30128

KIT

- cylinder packing, Includes: P/N O10984AB, D23739, D27706, D27856, D27878, D28373, D28494, D28498, D29306 and the roll pin shown below P/N D29306

1шт.

D32137

ROD ASSY.

ROD - piston, 1-1/2" dia. (Includes 2 - 30634 bushings) (When replacing D28001 rod also order 1 - D29306 capscrew)

1шт.
