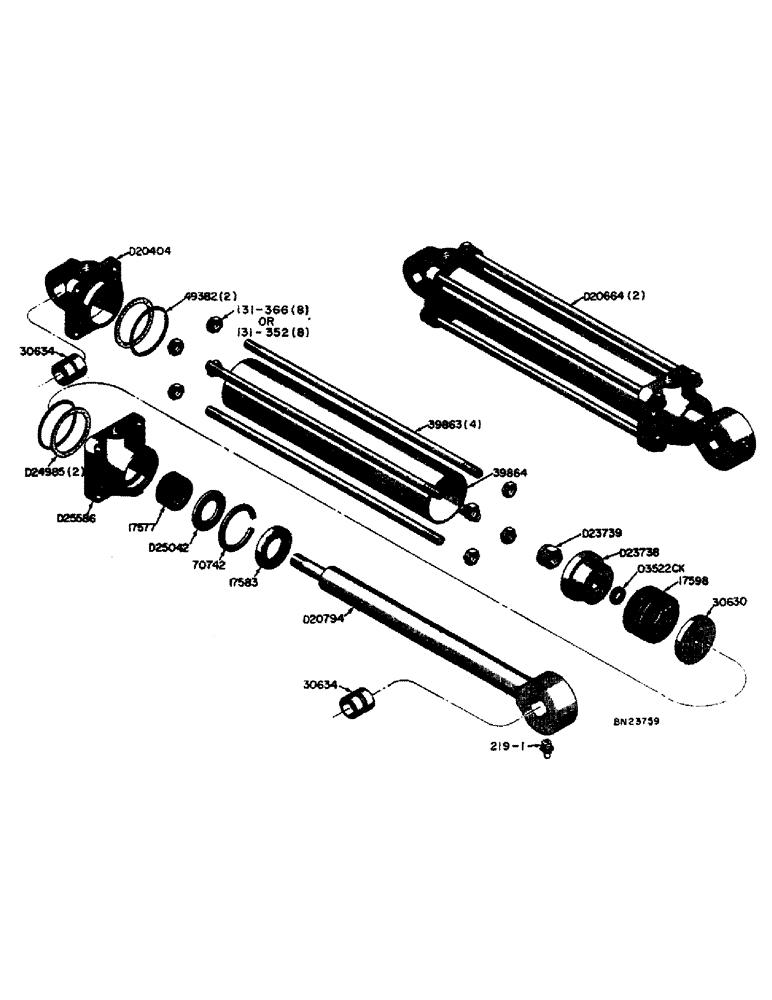

Запчасти Case 31 (035) - D20664 HYDRAULIC LIFT CYLINDERS

O3522CK

X

SEAL - "O" ring, piston

1шт.

Part of Cylinder Packing Kit P/N D30136

1шт.

17577

PACKING

- piston rod

1шт.

Part of Cylinder Packing Kit P/N D30136

1шт.

17583

WIPER SEAL

- oil, wiper

1шт.

Part of Cylinder Packing Kit P/N D30136

1шт.

17598

PACKING

- piston

1шт.

Part of Cylinder Packing Kit P/N D30136

1шт.

30630

CARTRIDGE

WASHER - piston packing

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod and cylinder end

4шт.

39863

TAPERED BEARING

ROD - tie

4шт.

3/8" - 24 NF locknut, tie rod with NF thread (131-366)

8шт.

3/8" - 16 NC locknut, tie rod with NC thread (131-352)

8шт.

39864

SPACER

TUBE - cylinder

1шт.

49832

CLAMP

SEAL - "O" ring, cylinder ends

2шт.

Part of Cylinder Packing Kit P/N D30136

1шт.

70742

WASHER

2.50", Int, #250, piston rod packing

1шт.

Part of Cylinder Packing Kit P/N D30136

1шт.

D20404

END - cylinder (Includes 2 - 30634 bushings)

1шт.

D20664

CYLINDER - hydraulic lift, complete (2-1/2" dia. x 31-7/16" stroke)

2шт.

D20794

ROD ASSY.

ROD - piston (Includes 2 - 30634 bushings) (1-1/2" dia.)

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D23738

BLOCK

PISTON - cylinder

1шт.

D23739

LOCK NUT

NUT - lock, 3/4" - 16 NF

1шт.

D24985

RING

- leather backup

2шт.

Part of Cylinder Packing Kit P/N D30136

1шт.

D25042

WASHER

- piston rod packing

1шт.

D25586

CAP

- end, cylinder

1шт.

D30136

PACKAGE, REPAIR

KIT - cylinder packing, Includes: P/N O3522CK, 17577, 17583, 17598, 49832, 70742 and D24985

1шт.
