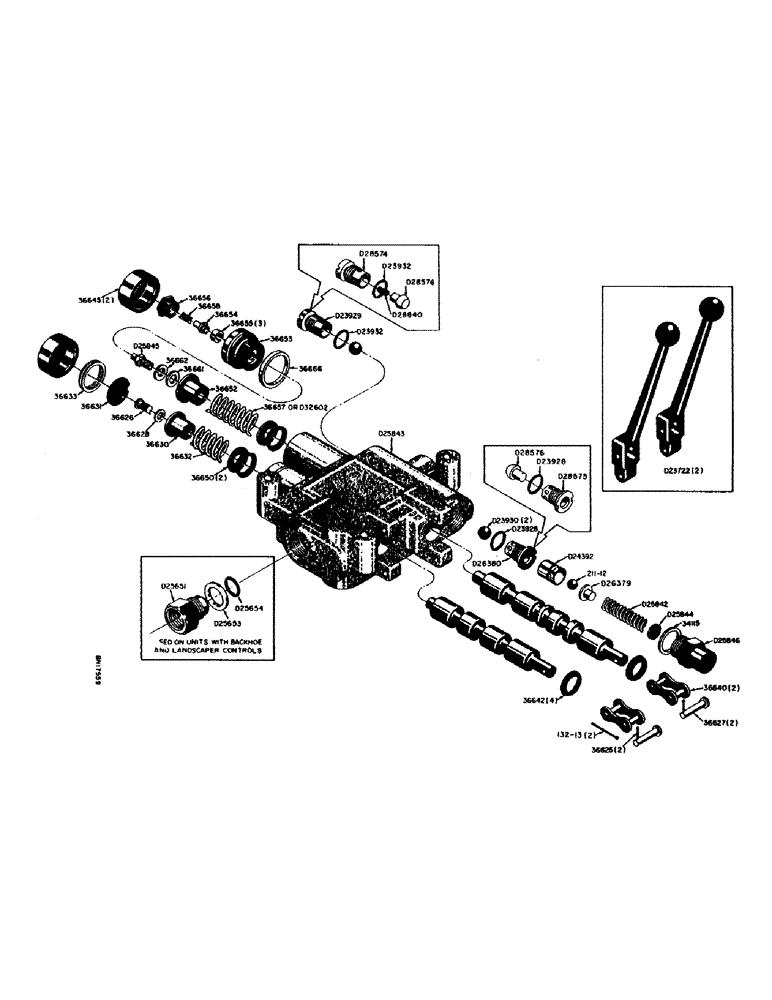

Запчасти Case 31 (032) - D25843 LOADER HYDRAULIC CONTROL VALVE

A7450

X

BALL - relief valve (7/16" steel) (Used 211-12)

1шт.

7/16" dia. steel ball (211-12)

1шт.

34115

GASKET

- seal, relief valve body

1шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - spring

1шт.

36628

LOCK WASHER

- lock, centering spring

1шт.

CAS36630

COLLAR

- stop

1шт.

36631

HOUSING

- stop

1шт.

36632

SPRING

- centering

1шт.

36633

LID

SNAP RING - stop disc

1шт.

36642

SEAL

RING - wedge, spool seal

4шт.

36645

CAP

- rubber, spool end

2шт.

36650

WASHER

- spool stop

2шт.

36652

COLLAR

- float spring

1шт.

NLS

NO LONGER SERVICED

- float detent

1шт.

36654

PLUG

HOLDER - finger, float detent

1шт.

NLS

NO LONGER SERVICED

- float detent

3шт.

36656

CLIP

CAP - float detent spring

1шт.

D32602

VALVE SPRING

- float centering (When stock is exhausted use D32602)

1шт.

36658

ROD

SPRING - float detent

1шт.

36661

SHAFT

WASHER - plain, float

1шт.

36662

GEAR

WASHER - lock, float spool

1шт.

36666

WASHER

- float detent cap

1шт.

D23928

O-RING

SEAL - "O" ring, relief valve seat

1шт.

D23929

PLUG

- front check ball (Used with D23930 ball) See D28574 plug

1шт.

D23930

BALL

- check (Used with D23929 plug and D24392 collar) See D28576 poppet

2шт.

D23932

X

SEAL - "O" ring, D23929 or D28574 plug

1шт.

D24392

COLLAR - jam, seat (Used with D23930 ball) See D28575 seat

1шт.

D25842

SPRING

- relief valve (1950 P.S.I.)

1шт.

D25843

VALVE - hydraulic, loader (Complete)

1шт.

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

D25845

ADAPTER - float detent

1шт.

D25846

BODY

- relief valve

1шт.

D26379

SPACER - ball seat spring

1шт.

D26380

SEAT

- relief valve (Used with D23930 ball) See D28575 seat

1шт.

D28574

PLUG

- check poppet (Used with D28576 poppet) See D23929 plug

1шт.

D28575

SEAT

- relief valve (Used with D28576 poppet) See D24392 collar and D26380 seat

1шт.

D28576

VALVE POPPET

POPPET - check (Used with D28574 plug and D28575 seat) See D23930 ball

2шт.

D28840

SPRING

- rear check poppet

1шт.

D32602

VALVE SPRING

SPRING - float centering

1шт.

36625

X

PIN - cotter (5/64" x 1/2") Handle, levers and associated parts (not included with D25843 valve)

2шт.

36627

SEAT

PIN - control valve lever, associated parts (not included with D25843)

2шт.

36640

DRAG LINK

LINK - valve lever, associated parts (not included with D25843)

2шт.

1/16" x 1-1/2" cotter pin (132-13), levers and associated parts (not included with D25843 valve)

2шт.

D23722

HANDLE

LEVER - valve, associated parts (not included with D25843)

2шт.

D25651

SLEEVE

- valve, power beyond type, levers and associated parts (not included with (25843)

1шт.

D25653

GASKET

- sleeve, levers and associated parts (not included with D25843 valve)

1шт.

D25654

RING

- quad, sleeve, levers and associated parts (not included with D25843 valve)

1шт.
