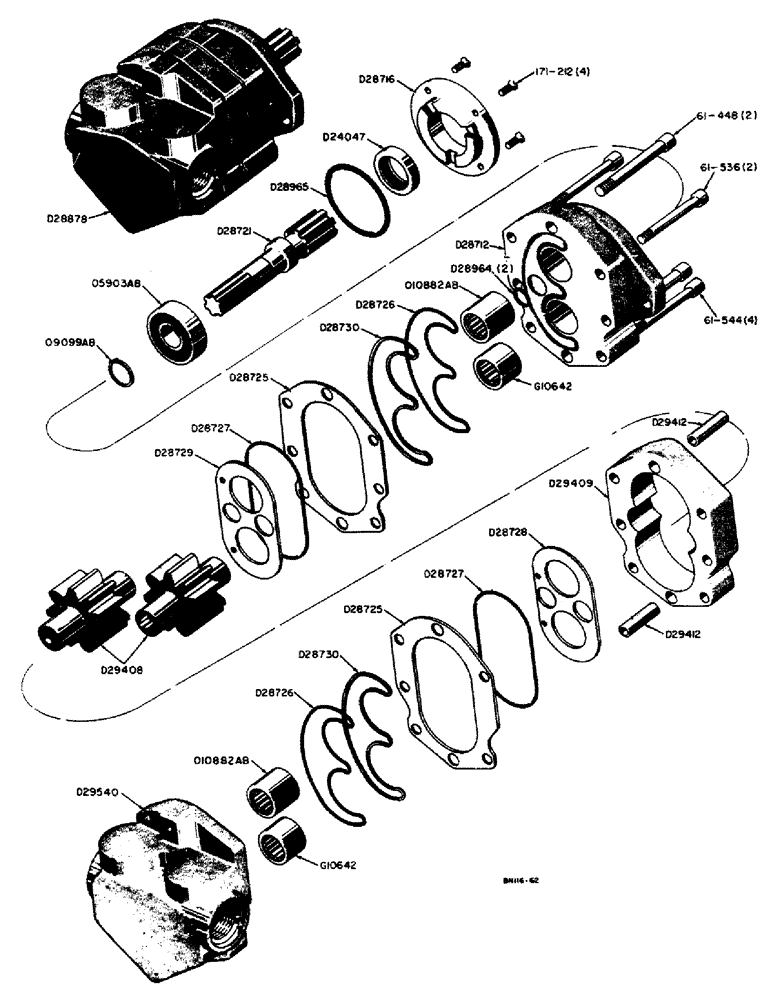

Запчасти Case 31 (028) - D28878 HYDRAULIC PUMP

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - needle, drive shaft

2шт.

O5903AB

BEARING, BALL

BEARING - ball (Fafnir #204K)

1шт.

O9099AB

X

RING - retaining, drive shaft

1шт.

O10882AB

X

BEARING - needle, driven shaft

2шт.

D24047

SEAL

- oil

1шт.

D28712

BODY - pump (Includes 1 - O10882AB and 1 - G10642 needle bearing)

1шт.

1/4" - 20 NC x 3" socket head cap screw (61-448)

2шт.

5/16" - 18 NC x 2-1/4" socket head cap screw (61-536)

2шт.

5/16" - 18 NC x 2-3/4" socket head cap screw (61-544)

4шт.

D28716

PLATE - pilot (Includes 1 - D24047 oil seal)

1шт.

#10 - 24 NC x 5/8" flat head machine screw (171-212)

4шт.

D28721

SHAFT - drive

1шт.

D28725

PLATE - retaining

2шт.

D28726

SEAL - retaining plate

2шт.

D28727

RING - sealing

2шт.

D28728

WEAR PLATE

PLATE - wear

1шт.

D28729

WEAR PLATE

PLATE - wear

1шт.

D28730

- backup

2шт.

D28878

PUMP hydraulic (Webster #3JDS-4LT) (14 G.P.M.)

1шт.

G.P.M. is rated at 1900 R.P.M. and 2000 P.S.I.

1шт.

D28964

O-RING

SEAL - "O" ring

2шт.

D28965

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

D29408

GEARS - matched set

1шт.

D29409

PLATE - gear

1шт.

D29412

PIN - dowel

2шт.

D29540

COVER - pump (Includes 1 - O10882AB and 1 - G10642 needle bearing)

1шт.
