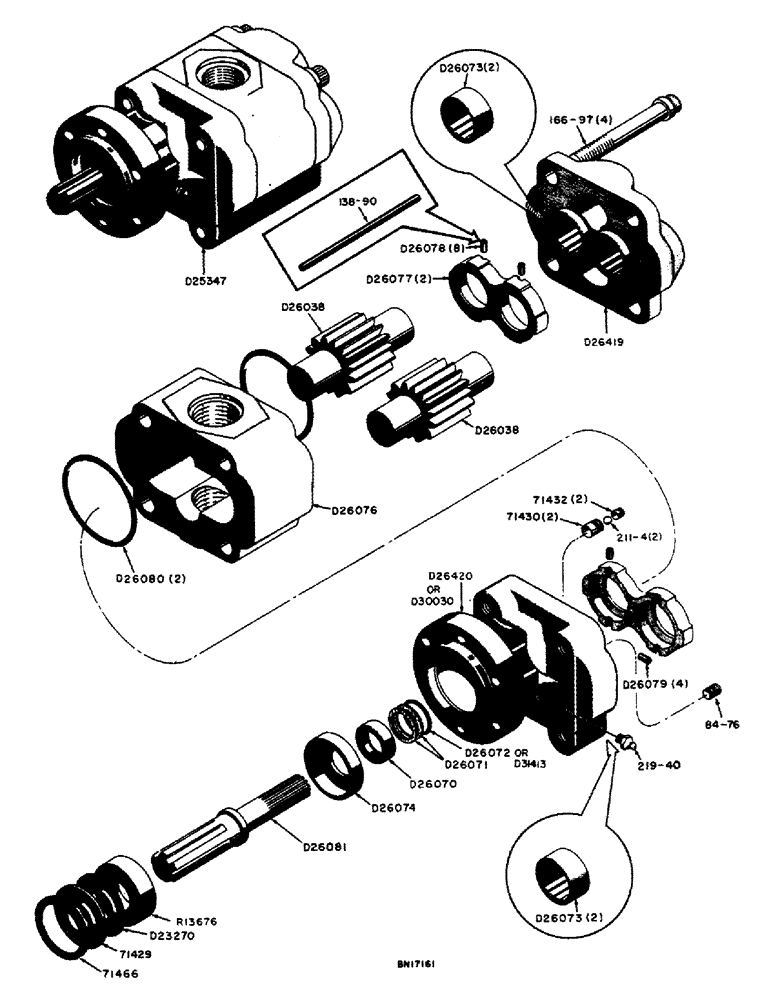

Запчасти Case 31 (026) - D25347 HYDRAULIC PUMP

VT4852

X

BALL - check (1/4" dia.) (Use 211-4)

2шт.

71429

BEARING COVER

SHIELD - bearing

1шт.

71430

TOOL

SEAT - check valve

2шт.

71432

TOOL

RETAINER - check ball

2шт.

71466

SNAP RING,#206, 2.190", Int, Spiral

- bearing shield retaining

1шт.

18-970

BALL BEARING

BEARING - ball, drive shaft (Use R13676)

1шт.

D23270

X

SEAL - bearing

1шт.

D25347

PUMP, HYDRAULIC

PUMP - hydraulic (Commercial #P15H302BEVC17-9) (19 G.P.M.)

1шт.

G.P.M. is rated at 1900 R.P.M. and 2000 P.S.I.

1шт.

D26038

KIT - gear, drive and driven

1шт.

D26069

COVER - shaft end (Use D26420)

1шт.

1/8" NPT 67-1/2 degree grease fitting (219-40)

1шт.

D26070

OIL RESERVOIR

SEAL - oil

1шт.

D26071

RING

- backup

2шт.

D26072

X

SEAL - "O" ring, drive shaft (Use D31413)

1шт.

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller, front and rear cover

4шт.

D26074

SPACER

- ball bearing

1шт.

D26075

COVER - port end (Use D26419)

1шт.

1/2" - 13 NC x 4-1/2" ferry head cap screw (166-97)

4шт.

D26076

HOUSING - gear

1шт.

D26077

LARGE PLATE

PLATE - thrust

2шт.

D26078

X

SEAL - pocket (Short) (Use D30031)

8шт.

D26079

X

SEAL - pocket (Long) (Use D30031)

4шт.

D26080

O-RING

SEAL - "O" ring

2шт.

D26081

SHAFT - pump drive

1шт.

D26419

COVER - port end (Includes 2 - D26073 bearings and 1 - D26075 cover)

1шт.

D26420

COVER - shaft end (Includes 2 - 211-4 balls, 2 - 71430 check valve seats, 2 - 71432 retainers, 1 - D26069 cover, 2 - D26073 bearings) (When stock is exhausted use D30030)

1шт.

1/4" dia. check ball (211-4)

1шт.

D30030

COVER - shaft end (Includes 2 - D26073 bearings and 1 - 84-76 screw) (See D26420)

1шт.

7/16" - 20 NF x 3/8" socket head set screw (High pressure side) (84-76)

1шт.

D30031

SEAL

- pocket (5" long x .103" dia.)

1шт.

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring, drive shaft

1шт.

R13676

BALL BEARING

BEARING - ball, drive shaft

1шт.
