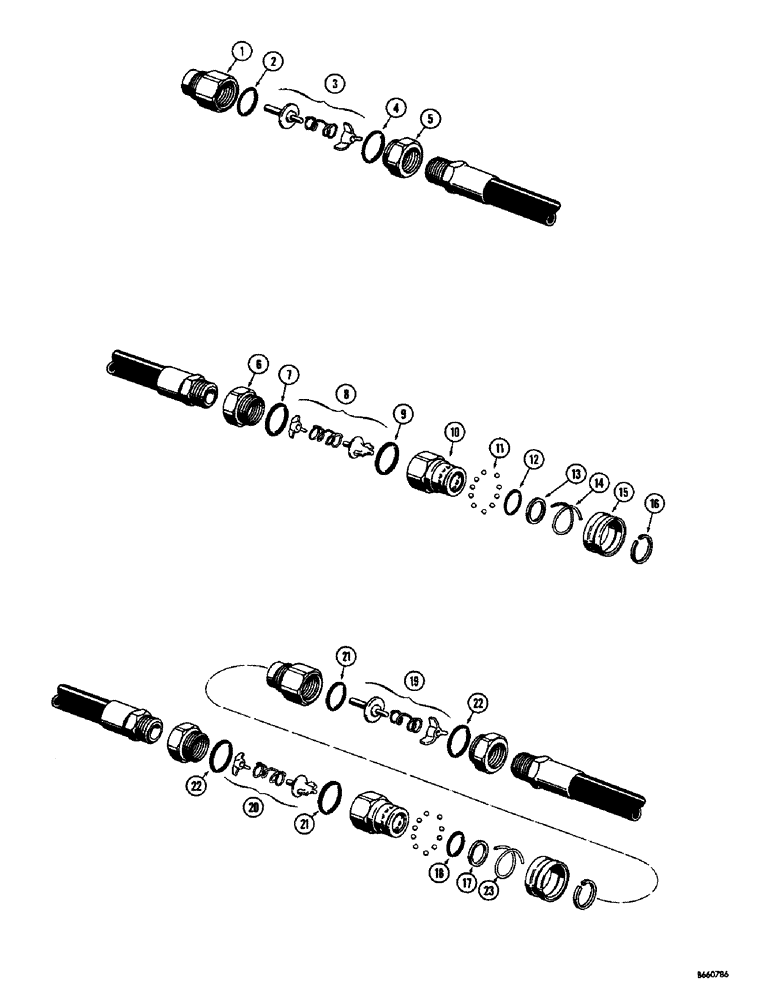

Запчасти Case 26B (078) - HYDRAULIC COUPLINGS, D31617 HYDRAULIC COUPLING

D31617

COUPLING, BREAK AWAY

COUPLING - male (Snap-Tite), Includes: Ref. 1 - 5

1шт.

1

D31971

BODY

- male coupling

1шт.

2

D31984

SEAL

- valve

1шт.

3

D35658

VALVE

ASSEMBLY - male coupling

1шт.

4

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting

1шт.

5

D31975

FITTING

- end

1шт.

D31618

COUPLING, BREAK AWAY

COUPLING - female (Snap-Tite), hydraulic, Includes: Ref. 7 - 16

1шт.

6

D31975

FITTING

- end, D31618 hydraulic coupling

1шт.

7

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, D31618 hydraulic coupling

1шт.

8

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling, D31618 hydraulic

1шт.

9

D31984

SEAL

- valve, D31618 hydraulic coupling

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - female coupling, D31618 hydraulic

1шт.

11

D31982

KIT

BALL KIT - includes 10 balls (When stock is exhausted, order 10, 211-6 steel balls), D31618 hydraulic coupling

1шт.

11

211-6

BALL,7/32" Dia

steel, D31618 hydraulic coupling 7/32" Dia

10шт.

12

D31983

O-RING

SEAL - "O" ring, internal (When stock is exhausted, order D42469 kit fo service), D31618 hydraulic coupling

1шт.

13

D31978

RING

- backup (When stock is exhausted, order D42469 kit for service), D31618 hydraulic coupling

1шт.

D42469

SEAL

KIT - seal, D31618 hydraulic coupling, Includes: Ref. 13A and 13B

1шт.

13a

NSS

NOT SOLD SEPARAT

SEAL - double "O" ring, internal, D31618 hydraulic coupling

1шт.

13b

NSS

NOT SOLD SEPARAT

RING - backup, D31618 hydraulic coupling

1шт.

14

D31979

VALVE SPRING

SPRING - sleeve, D31618 hydraulic coupling

1шт.

15

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining, D31618 hydraulic coupling

1шт.

16

D31981

RING

- retaining, D31618 hydraulic coupling

1шт.

D31456

KIT

- service, hydraulic coupling, Includes: Ref. 17 - 22

1шт.

17

D31978

RING

- backup (When stock is exhausted, order D42469 kit for service), D31456 hydraulic coupling

1шт.

18

D31983

O-RING

SEAL - "O"ring, internal (When stock is exhausted, order D42469 kit for service), D31456 hydraulic coupling

1шт.

D42469

SEAL

KIT - seal, D31456 service for hydraulic coupling, Includes: Ref. 18A and 18B

1шт.

18a

NSS

NOT SOLD SEPARAT

SEAL - double "O" ring, internal, D31456 service kit for hydraulic coupling

1шт.

18b

NSS

NOT SOLD SEPARAT

RING - backup, D31456 service kit for hydraulic coupling

1шт.

19

D35658

VALVE

ASSEMBLY - male coupling, D31456 service kit, hydraulic

1шт.

20

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling, D31456 service kit, hydraulic

1шт.

21

D31984

SEAL

- valve, D31456 service kit for hydraulic coupling

2шт.

22

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, D31456 service kit for hydraulic coupling

2шт.

23

D31979

VALVE SPRING

SPRING - sleeve, D31456 service kit for hydraulic coupling

1шт.
