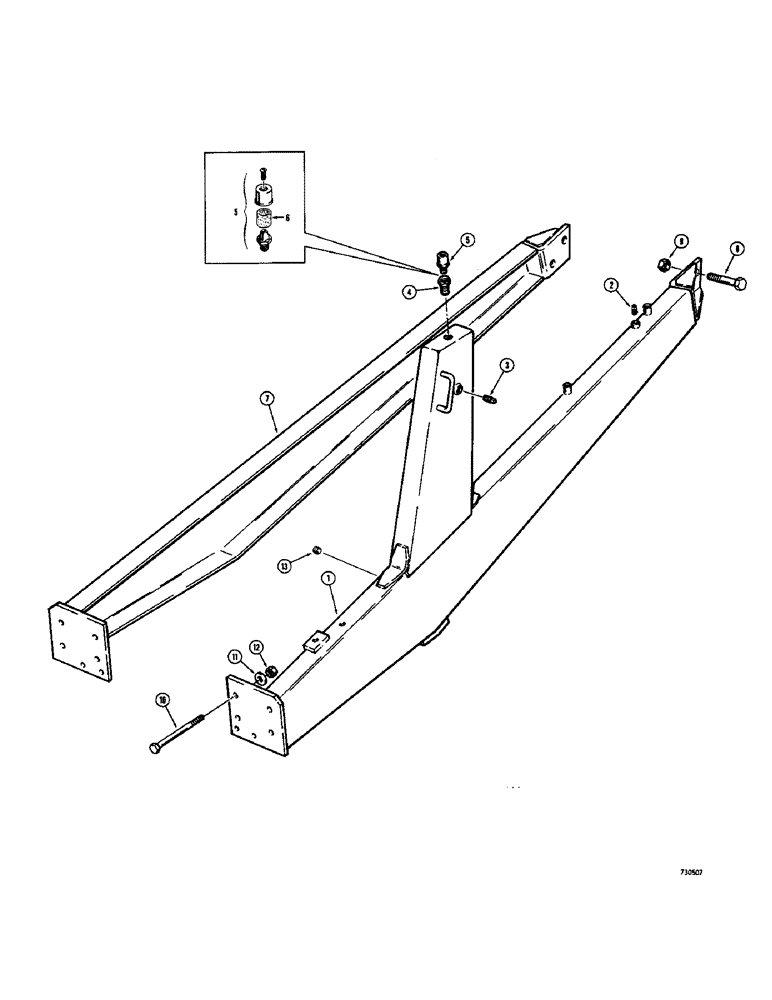

Запчасти Case 26B (070) - 3 POINT HITCH SUBFRAME & RELATED PARTS USED ON NON-LOADER MODELS ONLY BEF. 3 POINT HITCH SN. 5233159

1

D55863

SUBFRAME - hydraulic resrvoir, R.H.

1шт.

2

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

3

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, square head (3/8" NPT)

1шт.

4

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - reducing (1" NPT x 1/4" NPT)

1шт.

5

31543

BREATHER

- hydraulic reservoir, Includes: Ref. 6

1шт.

6

T14011

ELEMENT

- breather, if serviceable

1шт.

7

D44898

SUBFRAME - mounting, L.H.

1шт.

8

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

9

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

10

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

HHCS - 5/8" - 11 NC x 8" (Grade 8)

8шт.

11

A28084

WASHER

- special

8шт.

12

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC)

8шт.

13

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, square socket head (3/4" NPT)

2шт.
