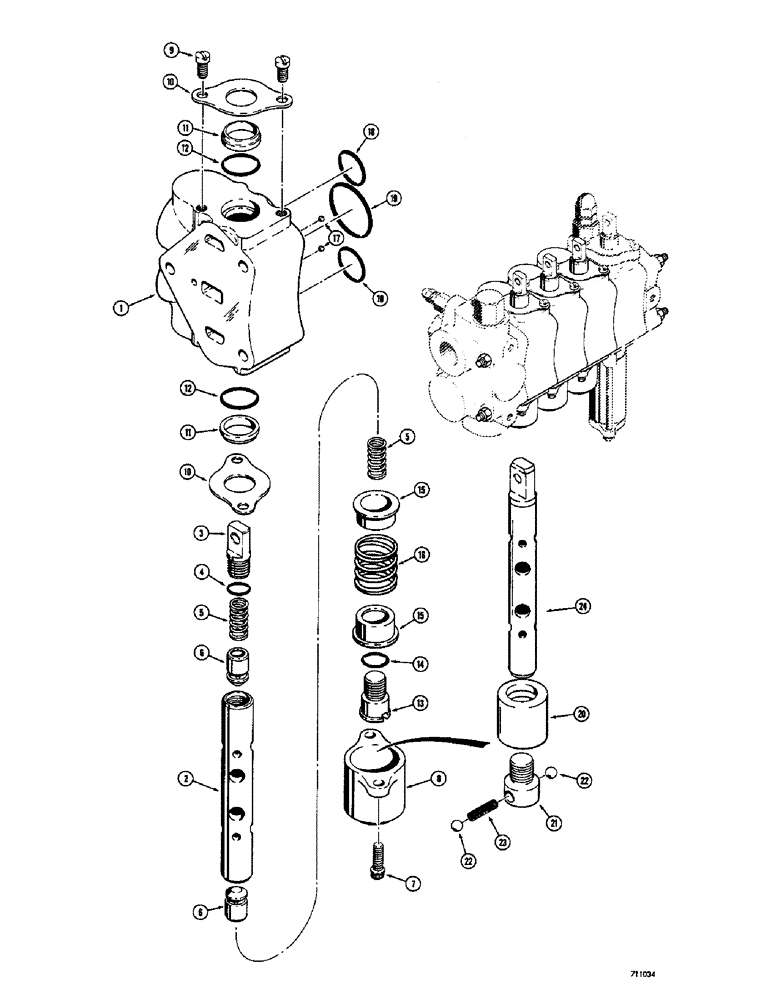

Запчасти Case 26B (068) - 3 POINT HITCH D52970 CONTROL VALVE (4 SPOOL), PITCH, TILT AND IMPLEMENT SPOOLS

D53594

HYD VALVE SECTION

SECTION - valve, pitch, tilt and implement spools, Includes: Ref. 1 - 19

3шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

D53616

EYE - spool

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, eye to spool

1шт.

5

D53601

SPRING

- poppet

2шт.

6

D53615

VALVE POPPET

POPPET - relief

2шт.

7

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

CAPSCREW - socket head, 12 point (1/4" - 20 NC x 3/4")

2шт.

8

D53613

CAP

- spool spring

1шт.

9

71-48

SCREW,Slotted Fil Hd, 1/4"-20 x 1/2"

- machine, fillister head (1/4" - 20 NC x 1/2")

2шт.

10

D53612

PLATE

RETAINER - seal

2шт.

11

D53610

WIPER SEAL

WIPER - spool

2шт.

12

F620075

SEAL - "O"ring, spool

2шт.

13

D53614

BOLT - spring retainer

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, retainer bolt

1шт.

15

D53656

RETAINER - centering spring

2шт.

16

D53606

SPRING - centering

1шт.

17

211-501

BALL - steel (5/32" dia.)

2шт.

18

R15366

O-RING,7/8" ID x 1" OD x 1/16"

SEAL - "O"ring, 7/8" I.D. x 1" O.D.

2шт.

19

T39567

O-RING,1.489" ID x 1.629" OD x 0.07"

SEAL - "O"ring, 1-1/2" I.D. x 1-5/8" O.D.

1шт.

D53549

KIT - motor spool, service option, Includes: Ref. 20 - 24

1шт.

20

D54865

SLEEVE - detent

1шт.

21

D54864

KIT

RETAINER - ball

2шт.

22

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

23

D54863

SPRING - detent

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - motor

1шт.
