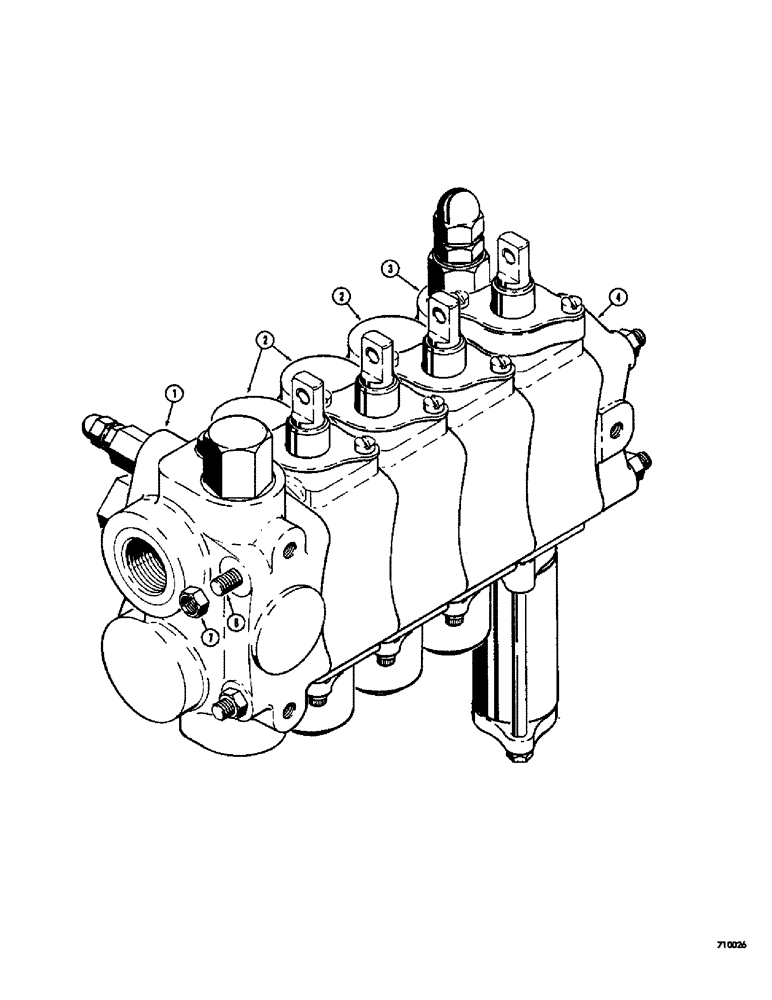

Запчасти Case 26B (062) - 3 POINT HITCH D52970 CONTROL VALVE (4 SPOOL)

D52970

CONTROL VALVE

VALVE - 3 point hitch control, 4 spool, Includes: Ref. 1 - 7

1шт.

1

D53593

HYD VALVE SECTION

SECTION - inlet (Parts list Figure 64)

1шт.

2

D53594

HYD VALVE SECTION

SECTION - pitch, tilt and implement (Parts list Figure 68)

3шт.

3

D53595

HYD VALVE SECTION

SECTION - lift (Parts list Figure 66)

1шт.

4

D53600

HYD VALVE SECTION

SECTION - end

1шт.

5

D53598

LARGE PLATE

PLATE - orifice (See Figure 64, Ref. No. 22 for location in inlet section)

1шт.

6

D53599

TIE-ROD

ROD - tie, valve sections

3шт.

7

129-524

NUT,3/8"-24, G8

6шт.

8

D53549

KIT - motor spool (Service option) Not shown (Parts list Figure 68)

1шт.
