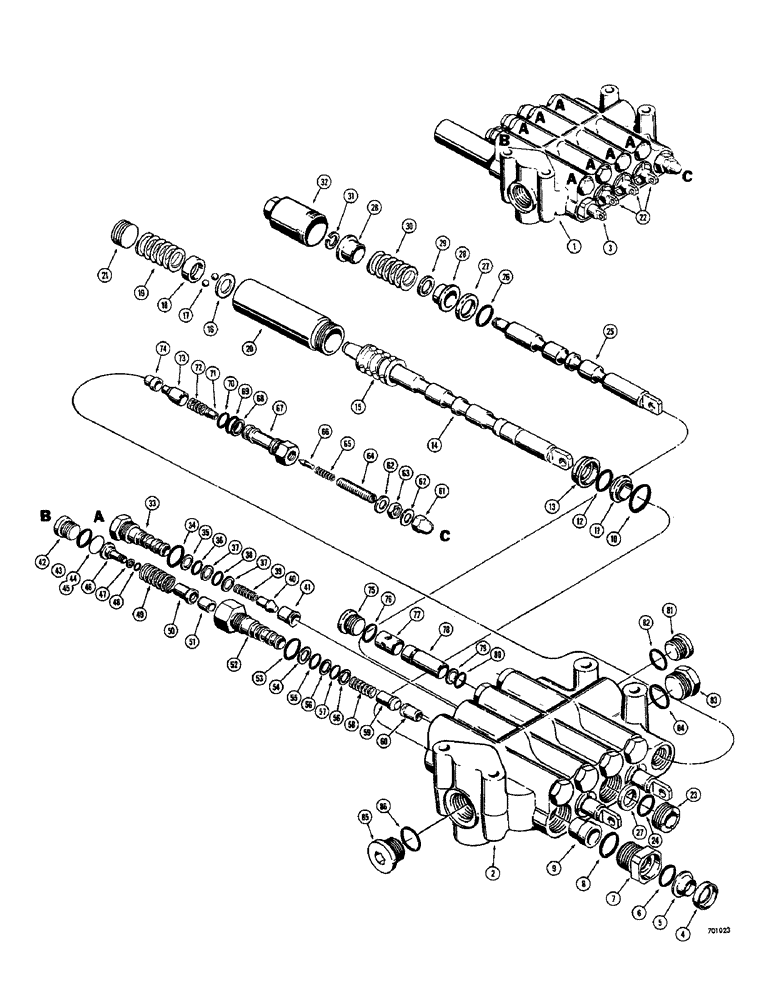

Запчасти Case 26B (058) - 3 POINT HITCH D50819 CONTROL VALVE (4 SPOOL)

1

D50819

VALVE - 3 point hitch control, 4 spool, Includes: Ref. 2 - 87

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

D52304

SPOOL ASSEMBLY - lift, 73700" to 73709" (Color code black or letter code W), Includes: Ref. 4 - 21

1шт.

3

D52305

SPOOL ASSEMBLY - lift, 73710" to 73719" (Color code blue or letter code X), Includes: Ref. 4 - 21

1шт.

3

D52306

SPOOL ASSEMBLY - lift, 73720" to 73729" (Color code yellow or letter code Y), Includes: Ref. 4 - 21

1шт.

3

D52307

SPOOL ASSEMBLY - lift, 73730" to 73740" (Color code green or letter code Z), Includes: Ref. 4 - 21

1шт.

4

D37153

RETAINER

- wiper ring

1шт.

5

A14527

SCRAPER

RING - wiper

1шт.

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, gland (Front)

1шт.

6

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, gland (Front)

1шт.

7

D37152

RETAINER

GLAND - spool

1шт.

8

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

SEAL - "O"ring, gland (Rear)

1шт.

9

D52312

SLEEVE - spool

1шт.

10

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring, outer

1шт.

11

D33857

RETAINER

- "O"ring, front

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, inner

1шт.

13

D33856

RETAINER

- "O"ring, rear

1шт.

D52308

SPOOL KIT - D52304 spool only, Includes: Ref. 14 and 15

1шт.

D52309

SPOOL KIT - D52305 spool only, Includes: Ref. 14 and 15

1шт.

D52310

SPOOL KIT - D52306 spool only, Includes: Ref. 14 and 15

1шт.

D52311

SPOOL KIT - D52307 spool only, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - lift

1шт.

15

D52313

SPRING - centering

1шт.

16

L30455

WASHER

- detent

1шт.

17

211-8

BALL,9/32" Dia

- detent 9/32" Dia

8шт.

18

L30456

CAM

- detent

1шт.

19

L30626

SPRING

- detent

1шт.

20

L30454

CAP

- valve, detent

1шт.

21

L30458

PLUG

- detent adjustment

1шт.

22

D52300

SPOOL ASSEMBLY - pitch, tilt and implement, .73700" to .73709" (Color code black or letter code W), Includes: Ref. 23 - 32

3шт.

22

D52301

SPOOL ASSEMBLY - pitch, tilt and implement, .73710" to .73719" (Color code blue or letter code X), Includes: Ref. 23 - 32

3шт.

22

D52302

SPOOL ASSEMBLY - pitch, tilt and implement, .73720" to .73729" (Color code yellow or letter code Y), Includes: Ref. 23 - 32

3шт.

22

D52303

SPOOL ASSEMBLY - pitch, tilt and implement, .73730" to .73740" (Color code green or letter code Z), Includes: Ref. 23 - 32

3шт.

23

L30744

GLAND

AND WIPER - spool

1шт.

24

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - pitch, tilt and implement

1шт.

26

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, spacer

1шт.

27

A14535

RETAINER

SPACER - spool

2шт.

28

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

29

A25286

WASHER

- special

1шт.

30

A25285

SPRING

- spool return

1шт.

31

A27020

RING

SNAP RING - spring retainer

1шт.

32

A14529

CAP

- spool

1шт.

33

D37066

CAP

- check valve

7шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

7шт.

35

D37071

RING

- backup

7шт.

36

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL "O"ring

7шт.

37

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup

14шт.

38

D26872

O-RING

SEAL - "O"ring

7шт.

39

D37067

SPRING

- check valve

7шт.

40

D37068

VALVE POPPET

POPPET - check valve

7шт.

41

D37069

SLEEVE

- check seat

7шт.

42

D40354

PLUG

- secondary relief, Includes: Ref. 43

1шт.

44

16917

SHIM

- spring guide, .0105" thick

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"Ring

1шт.

45

D40355

SHIM,.005" Thk

Spring guide .005" Thk

1шт.

46

D37073

GUIDE

- spring

1шт.

47

D40357

RING

- backup, spring guide

1шт.

48

D40356

O-RING

SEAL - "O"ring, spring guide

1шт.

49

D37148

SPRING

- relief valve

1шт.

50

D37074

PLUNGER

- relief valve

1шт.

51

D37075

SEAT

- relief valve

1шт.

52

D37072

CAP

- secondary relief

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, cap

1шт.

54

D37071

RING

- backup

1шт.

55

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O"ring

1шт.

56

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup

2шт.

57

D26872

O-RING

SEAL - "O"ring

1шт.

58

D37067

SPRING

- poppet

1шт.

59

D37068

VALVE POPPET

POPPET - check valve

1шт.

60

D37069

SLEEVE

- check seat

1шт.

61

129-514

CROWN NUT,Low, 5/16" - 24

- acorn (5/16" - 24 NF)

1шт.

62

D26270

WASHER, SEALING

WASHER - special sealing

2шт.

63

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., lock (5/16" - 24 NF)

1шт.

64

176-296

SET SCREW,5/16"-24 x 1 3/4", Slotted

SCREW - set, headless slotted (5/16" - 24 NF x 1-3/4")

1шт.

65

D26268

SPRING

- pilot

1шт.

66

D26267

PLUNGER

- relief valve

1шт.

67

A25291

CAP

- relief valve

1шт.

68

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup

1шт.

69

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

70

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - "O"ring

1шт.

71

D26266

SEAT

- relief valve

1шт.

72

D52319

SPRING

- relief valve

1шт.

73

D37062

VALVE

POPPET - relief valve

1шт.

74

D37063

SEAT

- poppet

1шт.

75

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Main relief valve, Incl Ref 76 Hex Soc, 3/4"-16 ORB

1шт.

76

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

77

D37065

SLEEVE

- drain

1шт.

78

D37064

SLEEVE

- poppet seat

1шт.

79

D40357

RING

- backup

1шт.

80

D40356

O-RING

SEAL - "O"ring

1шт.

81

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 82 Hex Soc, 3/4"-16 ORB

1шт.

82

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

83

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 84 Hex Soc, 1 1/16"-12 ORB

1шт.

84

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL -"O" ring

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

85

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 86 Hex Soc, 1 5/16"-12 ORB

1шт.

86

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

87

D52885

KIT - motor spool, service option (Not shown)

1шт.
