Запчасти Case 26B (054) - 3 POINT HITCH CONTROL LEVERS, WITH UNIT BODY TYPE CONTROL VALVE

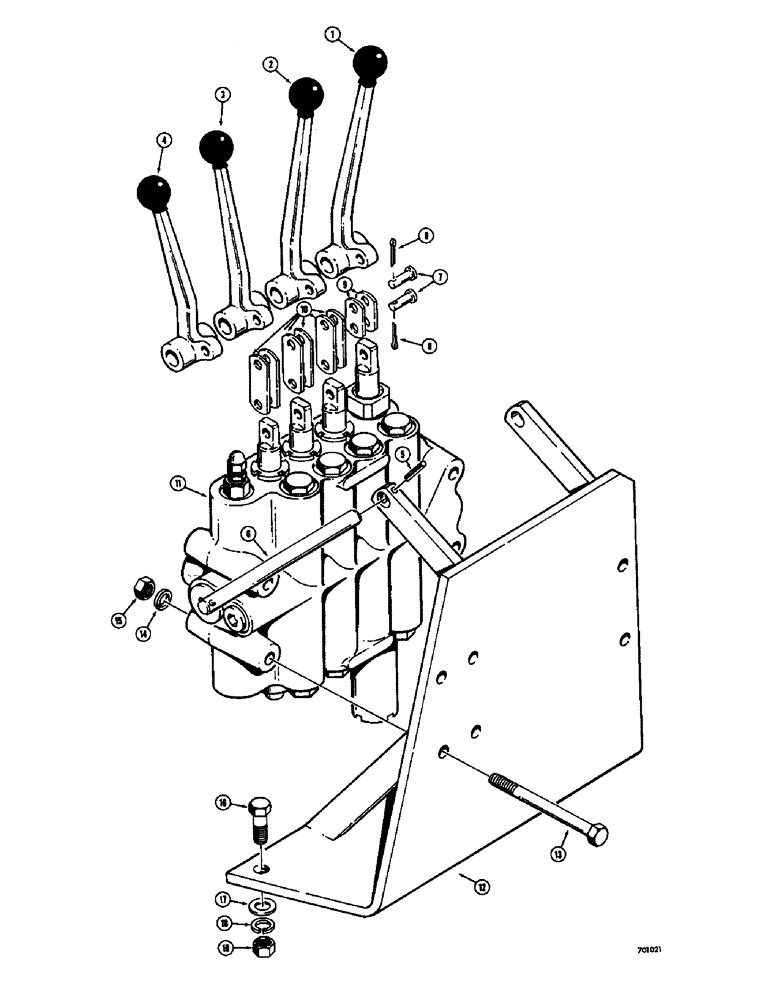

Схема запчастей Case 26B - (054) - 3 POINT HITCH CONTROL LEVERS, WITH UNIT BODY TYPE CONTROL VALVE

Артикул

Название

Примечание

Количество

1

D33256

LEVER - 3 point hitch control, lift

1шт.

2

D51690

LEVER

- 3 point hitch control, pitch

1шт.

3

D51689

LEVER - 3 point hitch control, tilt

1шт.

4

D33255

LEVER

- 3 point hitch control, implement

1шт.

5

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN - roll type, 1/4" dia. x 1"

1шт.

6

D51699

SHAFT - control lever pivot

1шт.

7

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link mounting 5/16" x .940"

8шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

8шт.

9

D25483

LINK

- lever to spool (Lift spool only)

2шт.

10

D38089

LINK

- lever to spool (Pitch, tilt and implement spool only)

6шт.

11

D50819

VALVE - control, 3 point hitch (Parts list Figure 58 and 60)

1шт.

12

D51397

PLATE - valve mounting

1шт.

13

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

4шт.

14

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

WASHER - standard wrot (1/2")

3шт.

18

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

19

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

Выбрано товаров: 18
