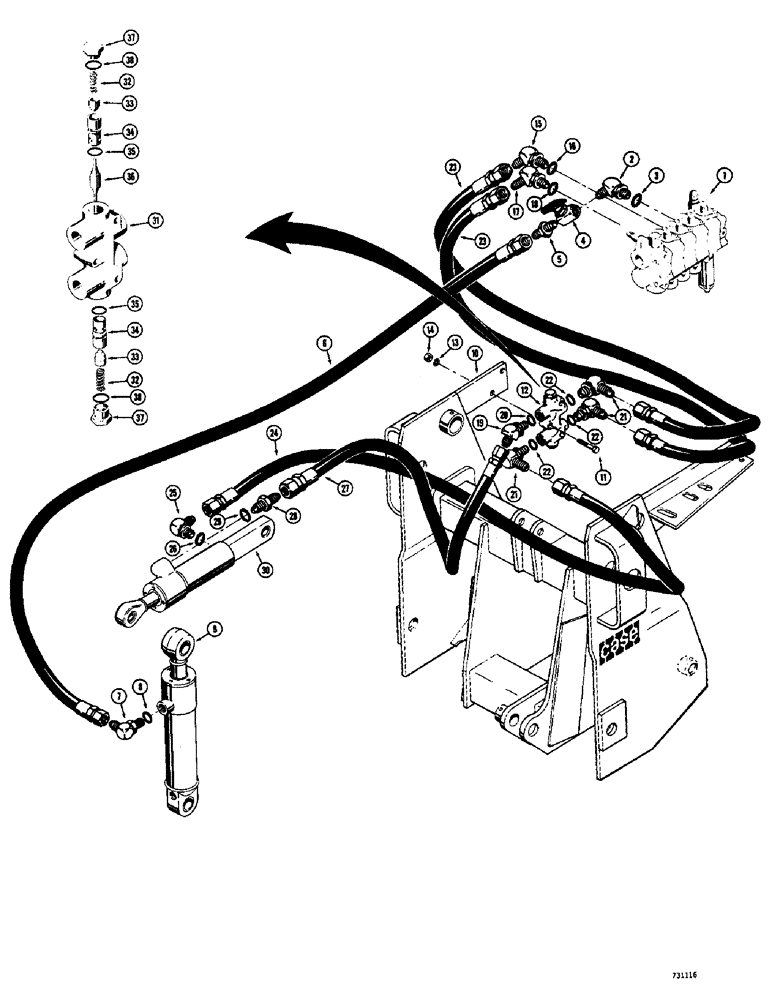

Запчасти Case 26B (053A) - 3 POINT HITCH HYDRAULICS, D171960 ANTI-LEAKDOWN KIT
№
Артикул
Название
Примечание
Количество
1
D52970
CONTROL VALVE
VALVE - control, 3 point hitch (Parts list Figure 62 thru 68)
1шт.
2
D60015
FITTING
ELBOW - adjustable, 45 degrees, Includes: Ref. 3
1шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
3
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
4
D60016
BALL
VALVE - shut-off
1шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
5
218-444
HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF
CONNECTOR - straight, male
1шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
6
D51686
HOSE
- shut-off valve to lift cylinder, rod end (54" long)
1шт.
7
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
- 90 degrees, adjustable, Includes: Ref. 8
1шт.
8
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
9
REF
INSTRUCTION
CYLINDER - hydraulic, lift (See page 106 for proper cylinder)
1шт.
10
D59772
PLATE
- valve mounting (Welded to hitch frame)
1шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
11
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
12
D47256
VALVE
- check, pilot operated (Parts list below)
1шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
13
92-5
LOCK WASHER,5/16"
2шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
14
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC )
2шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
15
D52943
ELBOW
- 45 degrees, restrictor (Upper port of pitch section), Includes: Ref. 16
1шт.
16
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
17
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 45 degrees, adjustable (Lower port of pitch section), Incl. Ref 18
1шт.
18
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
19
D59773
FITTING
ELBOW - restrictor, 45 degrees (At check valve), Includes: Ref. 20
1шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
20
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
21
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
Adjustable (At check valve), Includes: Ref. 22 90º, 3/4"-16, 37º x 3/4"-16, O-Ring
3шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
23
D59771
HOSE
- top and bottom ports of pitch section of control valve to top and bottom ports of check valve (27" long)
2шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
22
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
24
T40301
HOSE,0.38" ID x 17.00", SAE 100R1
Rear Bottom Port of Check Valve to Closed End of Pitch Cylinder 0.38" ID x 17.00", SAE 100R1
1шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
25
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
- 90 degrees, adjustable, Includes: Ref. 26
1шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
27
D56128
HOSE
- rear to top port of check valve to rod end of pitch cylinder (25" long)
1шт.
Part of P/N D17196 Anti Leakdown Kit
1шт.
28
HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB
male, straight, Incl. Ref 29 3/4"-16, 37º x 7/8"-14, O-Ring
1шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
30
REF
INSTRUCTION
CYLINDER - hydraulic, pitch (See pages 110 and 112 for proper cylinder)
1шт.
D47256
VALVE
- check, Parker VCPDO8B11T, Includes: Ref. 31
1шт.
31
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
32
D48818
SPRING
- poppet
2шт.
D48819
VALVE POPPET
POPPET AND SLEEVE ASSEMBLY, Includes: Ref. 33
2шт.
33
NSS
NOT SOLD SEPARAT
POPPET
1шт.
34
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
35
D48820
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
36
D48821
TRANSMISSION
SHUTTLE - valve
1шт.
37
D48822
PLUG
- special
2шт.
D17196
KIT
anti leakdown, Includes: Refs. 2, 4, 5, 10 - 14, 19, 21, 23, 24 and 27
1шт.
38
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O"ring
2шт.
