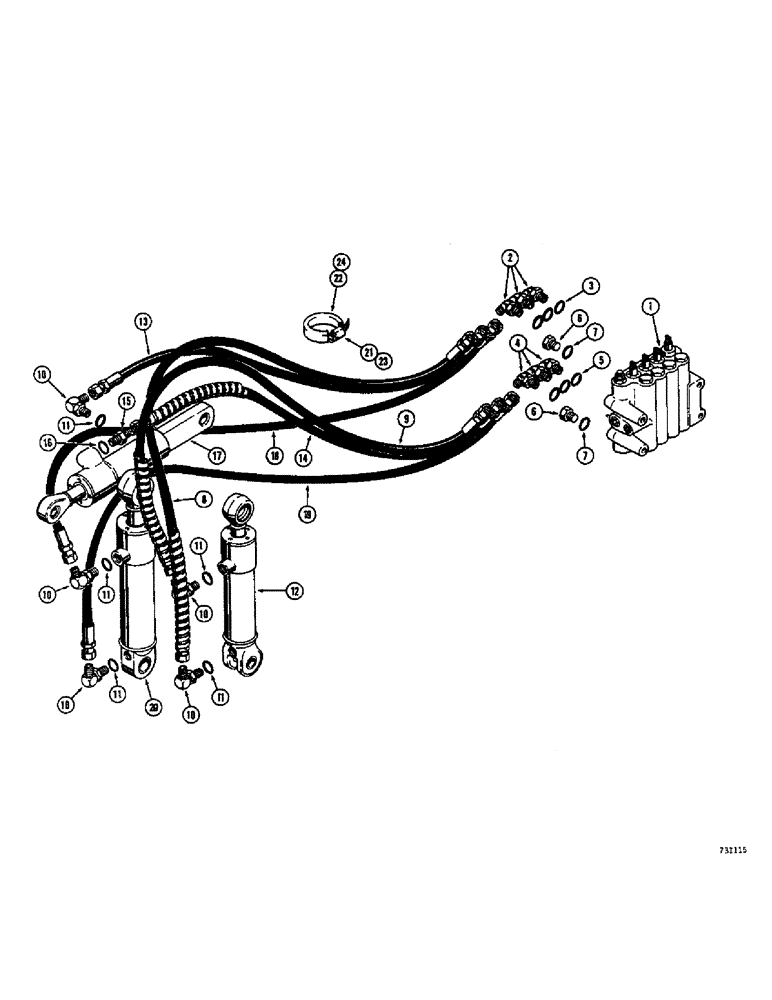

Запчасти Case 26B (050) - 3-POINT HITCH HYDRAULICS, WITH UNIT BODY TYPE CONTROL VALVE

1

D50819

VALVE - control, 3 point hitch (Parts list Figure 58 and 60; Mounting parts on Figure 54)

1шт.

2

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degrees, adjustable (Upper parts), Includes: Ref. 3

3шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D51406

ELBOW - 45 degrees, restrictor (Lower ports) For identification see "R" stamped on body, Includes: Ref. 5

3шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

6

86512512

PLUG,7/8" - 14 ORB

Valve port, Incl. Ref. 7 Hex Hd, 7/8"-14 ORB

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

8

D51683

HOSE

- valve to tilt cylinder, closed end (56" long)

1шт.

9

D52256

HOSE

- valve to tilt cylinder, rod end (45" long)

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degrees, adjustable, Includes: Ref. 11

5шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

REF

INSTRUCTION

CYLINDER - hydraulic, tilt (2-1/2" I.D. x 6-5/16" stroke) See fig. 108 for proper cylinder

1шт.

13

D51688

HOSE

- valve to pitch cylinder, closed end (42" long)

1шт.

14

D52256

HOSE

- valve to pitch cylinder, rod end (45" long)

1шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 16 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

17

REF

INSTRUCTION

CYLINDER - hydraulic, pitch (2-1/2" I.D. x 2-7/8" stroke) See fig. 110 and 112 for proper cylinder

1шт.

18

D51686

HOSE

- valve to lift cylinder, rod end (54" long)

1шт.

19

D51685

HOSE

- valve to lift cylinder, closed end (66" long)

1шт.

20

REF

INSTRUCTION

CYLINDER - hydraulic, lift (3" I.D. x 8-3/8" stroke) See fig. 106 for proper cylinder

1шт.

21

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

22

D95252

TUBE

GUARD - hose (Used with 214-260 clamp only)

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

24

D95251

TUBE

GUARD - hose (Used with 214-256 clamp only)

2шт.
