Запчасти Case 26B (048) - 3-POINT HITCH MOUNTING FRAME AND RELATED PARTS

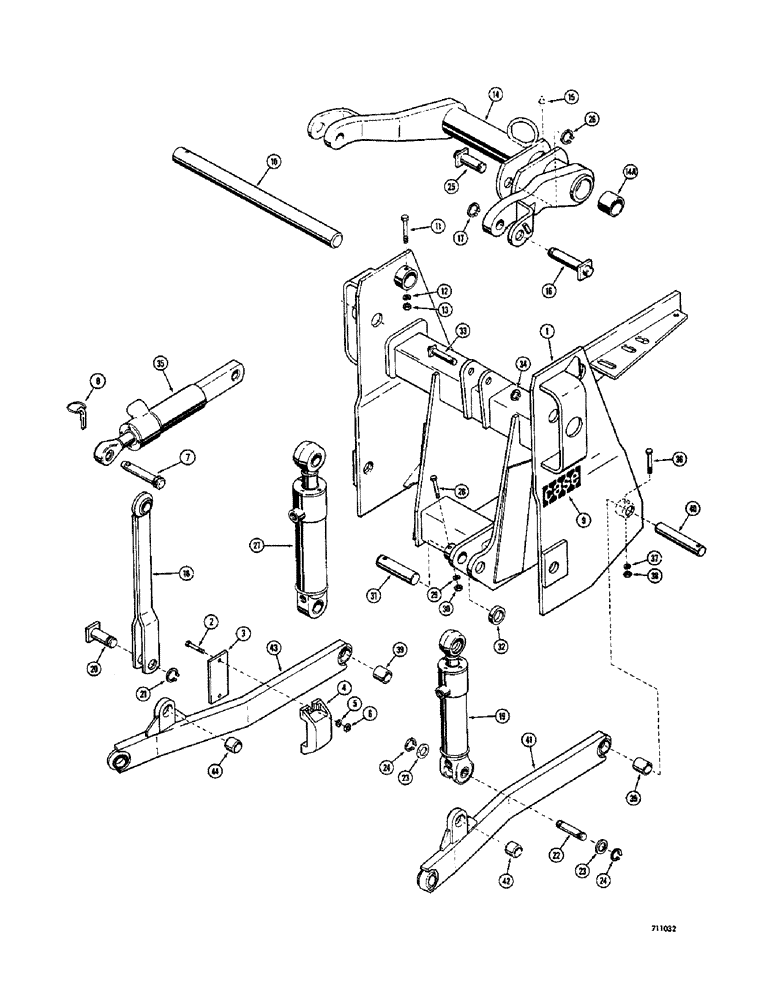

Схема запчастей Case 26B - (048) - 3-POINT HITCH MOUNTING FRAME AND RELATED PARTS

Артикул

Название

Примечание

Количество

1

D51594

FRAME

- mounting, 3 point hitch

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

3

D56245

PLATE

- sway retaining

2шт.

4

D51722

CASTING

ANCHOR - sway retaining

2шт.

5

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

6

25-286

NUT,Sq, 3/8"-16, G2, Hvy

- square, heavy (3/8" - 16 NC)

4шт.

7

G16735

PIN

- mounting, pitch, Serial Range: cylinder-equipment

1шт.

8

A30338

PIN

- Klik, retaining

1шт.

9

321-1438

DECAL

- "CASE", on mounting frame

2шт.

10

D51569

SHAFT

- rocker

1шт.

11

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

12

926

TOOL KIT

WASHER - med. sect. lock (3/8")

1шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

14

D51650

TUBE - rocker shaft, Includes: Ref. 14A

1шт.

14a

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- tube

2шт.

15

219-103

FITTING

- grease, straight (1/8" NPT)

1шт.

16

D51299

PIN

- mounting, tilt cylinder and strut (Upper)

2шт.

17

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining

2шт.

18

D51276

STAND

STRUT - stationary, tilt cylinder opposing

1шт.

19

REF

INSTRUCTION

CYLINDER - hydraulic, tilt (2-1/2" I.D. x 6-5/16" stroke) See page 108 for proper cylinder

1шт.

20

D51297

PIN

- mounting, strut (Lower)

1шт.

21

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, lower strut mounting ping

1шт.

22

D30609

PIN,25.4mm OD x 95.25mm L

- mounting, tilt cylinder (Lower)

1шт.

23

195-53

WASHER,1" x 2" x .134"

- plain, cylinder alignment

1шт.

24

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, lower tilt cylinder mounting pin 2

25шт.

25

D51302

PIN

- mounting, lift cylinder (Upper)

1шт.

26

D26918

SNAP RING,#125, Ext

Ring, Snap, , upper lift cylinder mounting pin #125, Ext

1шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic, lift (3" I.D. x 8-3/8" stroke) See page 106 for proper cylinder

1шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

1шт.

29

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

31

D51695

PIN

- mounting, lift cylinder (Lower)

1шт.

32

D51692

SPACER

- lift cylinder mounting pin, lower

1шт.

33

D51294

PIN

- mounting, pitch cylinder at mounting frame

1шт.

34

T25683

SNAP RING,#75, Ext

Ring, Snap, , pitch cylinder mounting pin #75, Ext

1шт.

35

REF

INSTRUCTION

CYLINDER - hydraulic, pitch (2-1/2" I.D. x 2-7/8" stroke) See pages 110 and 112 for proper cylinder

1шт.

36

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

37

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

39

D51588

PIVOT

TUBE - pivot, draft arm mounting pin

2шт.

40

D50724

PIN,25.4mm OD x 160.27mm L

SPACER - pin mounting, draft arm to mounting frame

2шт.

41

D51339

ARM

- draft, R.H., Includes: Ref. 42

1шт.

42

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

- arm

1шт.

43

D51340

ARM

- draft, L.H., Includes: Ref. 44

1шт.

44

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

- arm

1шт.
