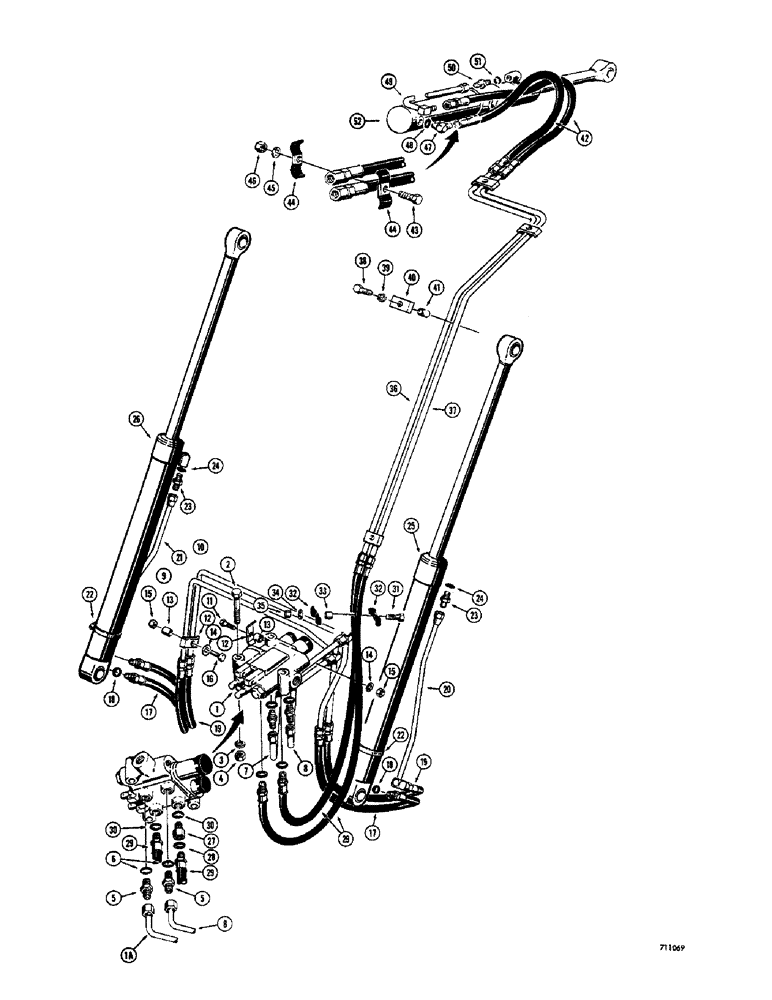

Запчасти Case 26B (036) - LOADER LIFT AND TILT HYDRAULICS, USED WITH SINGLE TILT CYLINDER ONLY

1

D44563

VALVE - loader control, 2 spool (Parts list Figure 86)

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight male, lift cylinder hydraulics, Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, lift cylinder hydraulics

1шт.

7

D54155

TUBE - valve to lift cylinder, closed end, hydraulics

1шт.

8

D54157

TUBE - valve to lift cylinder, rod end, hydraulics, Includes: Ref. 9

1шт.

9

D50357

TUBE

- crossover, valve to lift cylinder, closed end, hydraulics

1шт.

10

D50353

TUBE

- crossover, valve to lift cylinder, rod end, hydraulics

1шт.

11

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Lift cylinder hydraulics Hex, 3/8"-16 x 1 3/4", G5

1шт.

12

D42504

CLAMP

- tube, lift cylinder hydraulics

2шт.

13

D33552

BUSHING

SPACER - clamp, lift cylinder hydraulics

2шт.

14

92-6

LOCK WASHER,3/8"

llift cylinder hydraulics 3/8"

2шт.

15

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16 - 18 NC), lift cylinder hydraulics

1шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", lift cylinder hydraulics

1шт.

17

D30533

HOSE

- valve to lift cylinder, closed end (26" long), hydraulics, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, lift cylinder hydraulics

1шт.

19

D30541

HOSE

- valve to lift cylinder, rod end (27-1/8" long), hydraulics

2шт.

20

D31460

TUBE

- valve to R.H. lift cylinder, rod end, hydraulics

1шт.

21

D31459

TUBE

- valve to L.H. lift cylinder, rod end, hydraulics

1шт.

22

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - tube to cylinder, lift, hydraulics

2шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, lift cylinder hydraulics, Includes: Ref. 24

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, lift cylinder hydraulics

1шт.

25

REF

INSTRUCTION

CYLINDER - hyd., R.H. loader lift (See fig. 102 and 104 for proper cylinder)

1шт.

26

REF

INSTRUCTION

CYLINDER - hyd., L.H. loader lift (See fig. 102 and 104 for proper cylinder)

1шт.

27

D36750

RESTRICTOR - tilt, flow control, cylinder hydraulics, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, tilt cylinder hydraulics

1шт.

29

D33583

FLEXIBLE HOSE

HOSE - valve to tilt cylinder (44" long), hydraulics, Includes: Ref. 30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, tilt cylinder hydraulics

1шт.

31

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Tilt cylinder hydraulics Hex, 5/16"-18 x 2", G5

2шт.

32

D33316

CLAMP

- hose, tilt cylinder hydraulics

4шт.

33

D33554

BUSHING

SPACER - clamp, tilt cylinder hydraulics

2шт.

34

195-21

WASHER,5/16"

- standard wrot (), Tilt cylinder hydraulics 5/16"

2шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), tilt cylinder hydraulics

2шт.

36

D35467

TUBE - valve to tilt cylinder, closed end, hydraulics

1шт.

37

D35469

TUBE

- valve to tilt cylinder, rod end, hydraulics

1шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Tilt cylinder hydraulics Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

39

92-5

LOCK WASHER,5/16"

tilt cylinder hydraulics 5/16"

4шт.

40

R17319

CLAMP

- tube, tilt cylinder hydraulics

4шт.

41

D33551

BUSHING

SPACER - clamp, tilt cylinder hydraulics

4шт.

42

D33581

HOSE ASSY.

HOSE - valve to tilt cylinder (35" long), hydraulics

2шт.

43

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Tilt cylinder hydraulics Hex, 5/16"-18 x 2", G5

1шт.

44

D33316

CLAMP

- hose, tilt cylinder hydraulics

2шт.

45

195-21

WASHER,5/16"

- standard wrot (), Tilt cylinder hydraulics 5/16"

1шт.

46

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), tilt cylinder hydraulics

1шт.

47

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, tilt cylinder hydraulics, Includes: Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, tilt cylinder hydraulics

1шт.

49

D33569

TUBE

- tilt cylinder, rod end, hydraulics

1шт.

50

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, tilt cylinder hydraulics, Incl. Ref 51 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

51

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, tilt cylinder hydraulics

1шт.

52

REF

INSTRUCTION

CYLINDER - hydraulic, loader tilt (See fig. 96 thru 98 for proper cylinder)

1шт.
