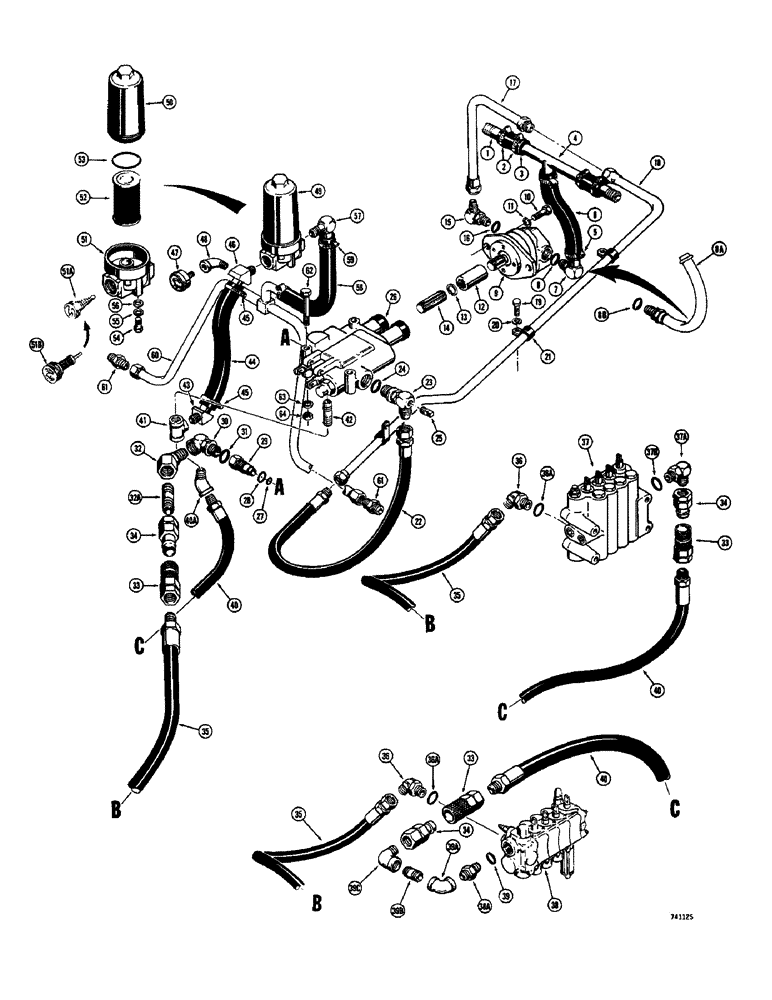

Запчасти Case 26B (026) - LOADER PRIMARY HYDRAULICS, SN. 5003000 TO 5210459

1

D33363

FITTING

STEM - hose, hydraulic reservoir

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure, at reservoir 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D41098

TEE

TUBE - special, reservoir pump

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

D54149

HOSE ASSY.

HOSE - low pressure

1шт.

7

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

STEM - hose, 90 degrees (Used with D39525 pump), Includes: Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

8a

D36747

STEM

- hose (Used with R24623 pump), Includes: Ref. 8B

1шт.

8b

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

9

D39525

PUMP - hydraulic, loader and backhoe models (17.5 G.P.M. at 1750 R.P.M. at 2000 P.S.I.) Parts list Figure 82

1шт.

9

R24623

PUMP, HYDRAULIC

PUMP - hydraulic, loader and backhoe models (17.5 G.P.M. at 1750 R.P.M. at 2000 P.S.I) Parts list Figure 83A

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

12

D31108

SPLINED COUPLING

COUPLING - female, pump to shaft, Includes: Ref. 13

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

14

D30569

SHAFT

- pump drive

1шт.

15

218-5115

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

- adjustable, 90 degrees (Used with D39525 pump), Includes: Ref. 16

1шт.

16

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable (Used with R24623 pump)

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

17

D41682

TUBE ASSY.

TUBE -, Serial Range: pump-valve

1шт.

18

D33579

TUBE

-, Serial Range: pump-valve

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

20

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

21

R11405

CLAMP

- tube

3шт.

22

D24646

HOSE ASSY.

HOSE - pump to loader valve (25" long)

1шт.

23

D26360

ELBOW - special, 90 degrees, Includes: Ref. 24

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

25

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, sq. hd (1/4" NPT)

1шт.

26

D44563

VALVE - loader control (2 spool) Parts list Figure 86

1шт.

27

D53169

RING

SEAL - quad ring

1шт.

28

D48086

SEAL,1.358" ID

GASKET - copper, rubber compound

1шт.

29

D48085

SLEEVE

- valve

1шт.

30

D25353

ELBOW - special, 90 degrees, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

32

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

- special, 45 degrees

1шт.

32a

221-212

NIPPLE, LUBE

NIPPLE - pipe, straight (3/4" x 1-1/2")

1шт.

33

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female (Parts list Figure 80)

2шт.

34

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male (Parts list Figure 80)

2шт.

35

L47858

HOSE,19.05mm ID x 1270mm L, SAE 100R2

- control valve to hitch valve (50" long) 3-point hitch models only

1шт.

36

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 45 degrees (3-point hitch models only), Includes: Ref. 36A

1шт.

36a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL "O"ring

1шт.

37

D50819

VALVE ASSEMBLY - 3-point hitch control (1 piece unit body) Parts list Figures 58 & 60

1шт.

37a

218-5311

ELBOW

- adjustable, 90 degrees (Used with D50819 3-point hitch valves only), Includes: Ref. 37B

1шт.

37b

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

38

D52970

CONTROL VALVE

VALVE ASSEMBLY - 3-point hitch control (sectional body) Parts list Figures 62 thru 68

1шт.

38a

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight (Used with D52970 3-point hitch valves only), Includes: Ref. 39

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, 218-5022 connector

1шт.

39a

221-398

ELBOW - pipe, 90 degrees (Female)

1шт.

39b

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, 3/4" x 3"

1шт.

39c

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

40

L47857

HOSE - hitch valve to loader valve (40" long)

1шт.

40a

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degrees

1шт.

41

221-425

FITTING,3/4" NPT

TEE - female

1шт.

42

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe, 3/4" x 2"

1шт.

43

R11626

CONNECTOR, ELEC

STEM - hose, 45 degrees

1шт.

44

L43005

HOSE

- low pressure

1шт.

45

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

46

D39509

STEM - hose, 45 degrees

1шт.

47

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

48

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

49

D43567

FILTER ASSY

- hydraulic oil, Includes: Ref. 50 - 53

1шт.

50

D42439

HOUSING

- filter

1шт.

D42440

FILTER HEAD

HEAD ASSEMBLY - filter (When stock is exhausted, order D61903 head assembly for service)

1шт.

D61903

HEAD

ASSEMBLY - filter, Includes: Ref. 51 - 51B

1шт.

51

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

51a

D49377

LOCK VALVE

VALVE - by-pass (D42440 head assembly only)

1шт.

51b

D58199

VALVE

- by-pass (D61903 head assembly only)

1шт.

D43800

FILTER, ELEMENT

KIT - element, Includes: Ref. 52 and 53

1шт.

52

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

53

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

54

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

55

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

56

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

57

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 90 degrees

1шт.

58

D28238

HOSE

- low pressure, filter reservoir

1шт.

59

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

60

D39843

TUBE - crossover, at reservoir

1шт.

61

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight male

2шт.

62

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

63

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

64

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.
