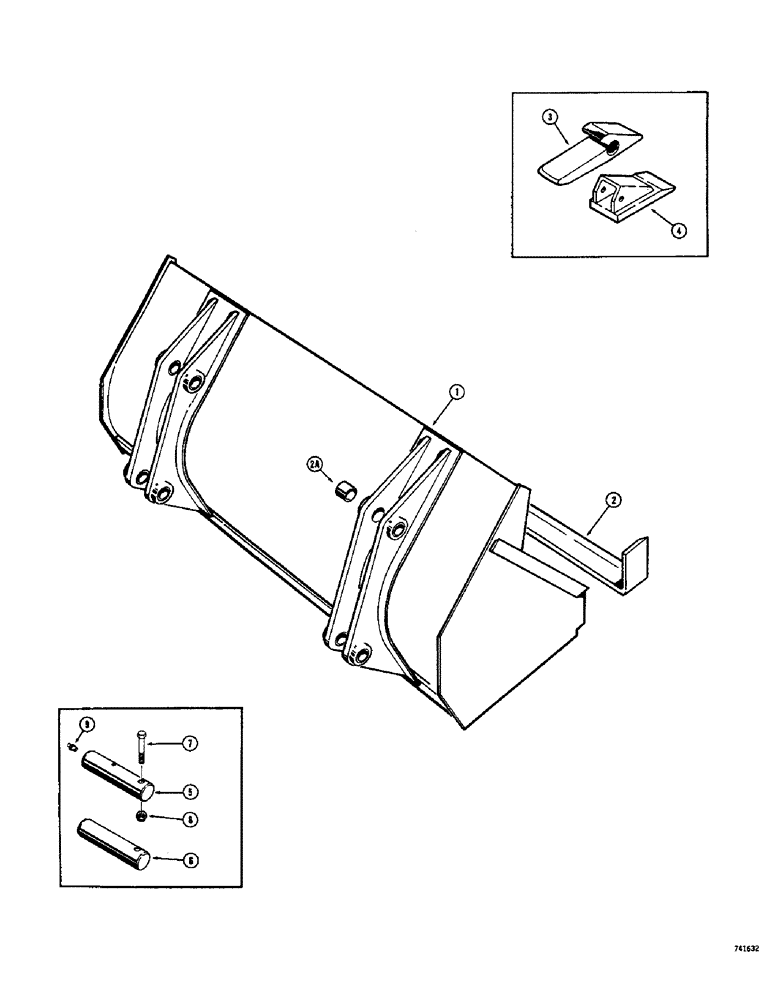

Запчасти Case 26 (014) - LOADER BUCKETS (OPTIONAL TYPES), USED WITH DUAL TILTCYL. ONLY MODELS W/ BOLT RETAINED MOUNTING PINS

1

D48634

BUCKET - short lip, 3/4 cu. yd. (74" wide) Machinery item, Includes: Ref. 2

1шт.

2

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket, 74" wide, short lip

1шт.

1

D48631

BUCKET - long lip, 20 cu. ft. (64" wide) Machinery item, Includes: Ref. 2

1шт.

2

D95071

EDGE, CUTTING

CUTTING EDGE - bucket, 64" wide, long lip

1шт.

3

D26368

SUPPORT

SHANK - tooth, long lip bucket

8-9шт.

4

D27748

TOOTH

- DIGGING, long lip bucket

8-9шт.

D14600

KIT - bucket pin (Machinery Item), Includes: Ref. 5 - 9

1шт.

5

D50187

PIN

- bucket, upper, D14600 kit

2шт.

6

D50188

PIN

- bucket, lower, D14600 kit

2шт.

7

113-289

X

HHCS - 3/8" - 16 NC x 2-3/4" (Grade 8), D14600 pin kit

4шт.

8

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC),D14600 pin kit

4шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), D14600 pin kit

2шт.

1

D54094

BUCKET - short lip, 3/4 cu. yd. (74" wide) Machinery item, models with snap ring retained mounting pins, Includes: Ref. 2 and 2A

1шт.

2

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket, 74" wide, models with snap ring retained monting pins

1шт.

2a

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- at bucket ear, models with snap ring retained mounting pins

8шт.

1

D54091

BUCKET - long lip, 20 cu. ft. (64" wide) Machinery item, Includes: Ref. 2 and 2A

1шт.

2

D95071

EDGE, CUTTING

CUTTING EDGE - bucket, 64" wide, long lip

1шт.

2a

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- at bucket ear, long lip

8шт.

3

D26368

SUPPORT

SHANK - tooth, bucket teeth (optional)

8-9шт.

4

D27748

TOOTH

- digging, bucket teeth (optional)

8-9шт.
