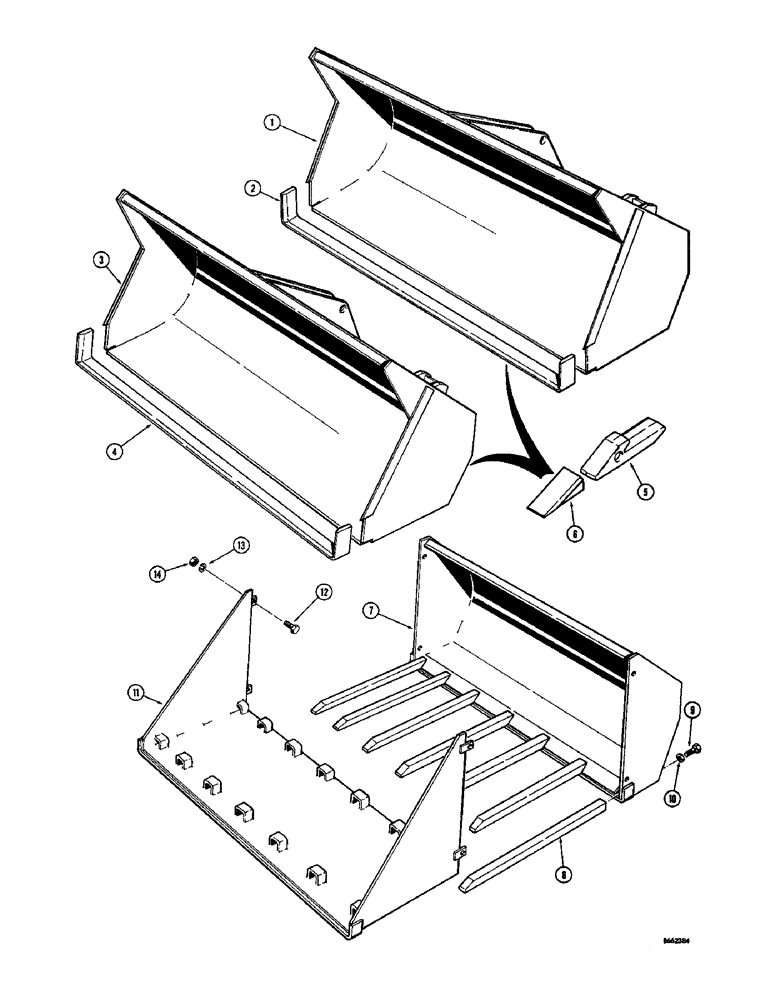

Запчасти Case 26 (012) - LOADER BUCKETS (OPTIONAL TYPES), USED WITH SINGLE TILT CYLINDER ONLY

1

D33472

BUCKET - short lip, 18 cu. feet (63-3/8" wide) Machinery item, Includes: Ref. 2

1шт.

D33470

BUCKET - short lip, 3/4 cu. yd. (73-3/8" wide) Machinery item, Includes: Ref. 2

1шт.

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket, 73-3/8" wide (D33470 bucket only)

1шт.

2

D95071

EDGE, CUTTING

CUTTING EDGE - bucket, 63-3/8" wide (D33472 bucket only)

1шт.

3

D33471

BUCKET - long lip, 20 cu. feet (63-3/8" wide) Machinery item, Includes: Ref. 4

1шт.

4

D95071

EDGE, CUTTING

CUTTING EDGE - bucket, 63-3/8" wide, long lip

1шт.

5

D26368

SUPPORT

SHANK - tooth, bucket (optional)

8-9шт.

6

D27748

TOOTH

- digging, bucket teeth (optinal)

8-9шт.

7

D12395

FORK - manure, machinery item dirt plate, Includes: Ref. 8 - 10

1шт.

8

D33303

TINE - manure fork, dirt plate

7шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Manure fork and dirt plate Hex, 1/2"-13 x 1 1/2", G5, Full Thd

7шт.

10

192-163

LOCK WASHER,1/2"

WASHER, LOCK, , Manure fork and dirt plate 1/2"

7шт.

11

D12393

PLATE - dirt, machinery item, manure fork, Includes: Ref. 12 - 14

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Manure fork and dirt plate Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

manure fork and dirt plate 3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), manure fork and dirt plate

4шт.
