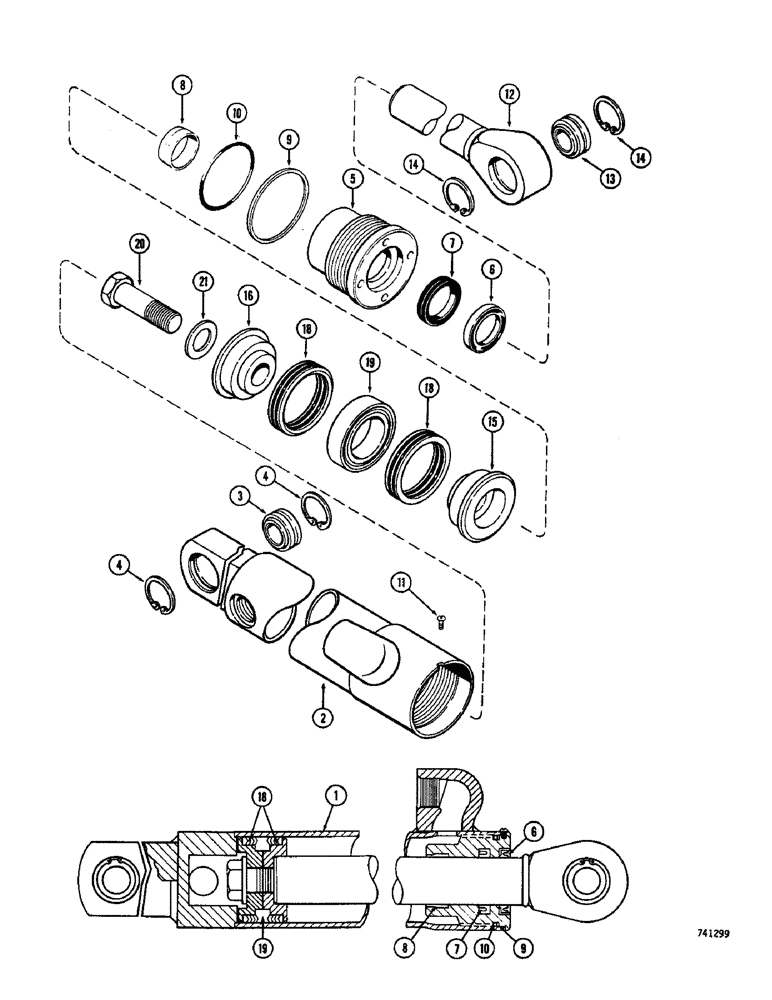

Запчасти Case 26 (112) - G32265 3-POINT HITCH PITCH CYLINDER, GLAND HAS SOLID OUTER ROD WIPER-NO IDENTIFICATION RING

1

G32265

CYLINDER

ASSY. - pitch (2-1/2" dia. 2-7/8" stroke), Includes: Ref. 2 - 21

1шт.

2

G32322

TUBE ASSY. - cylinder body, Includes: Ref. 3 and 4 2.497" ID x 15.20" L

1шт.

3

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- tube (Self aligning)

1шт.

4

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, bushing

2шт.

G32732

GLAND

ASSY., Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod, outer (1-1/4 x 1-3/4 x 5/16")

1шт.

Part of P/N G32295 Cylinder Repair Seal Kit

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod (1-1/4 x 1-3/4 x 13/32")

1шт.

Part of P/N G32295 Cylinder Repair Seal Kit

1шт.

8

D27705

WIPER

- piston rod, inner

1шт.

Part of P/N G32295 Cylinder Repair Seal Kit

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- "O" ring back-up (Static)

1шт.

Part of P/N G32295 Cylinder Repair Seal Kit

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - (2-1/2 x 2-3/4 x 1/8") (Static), Includes: Ref. 13 and 14

1шт.

Part of P/N G32295 Cylinder Repair Seal Kit

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G32318

ROD ASSY. - piston (1-1/4" dia.)

1шт.

13

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- piston rod (Self aligning)

1шт.

14

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, bushing

2шт.

15

NLS

NO LONGER SERVICED

PISTON - split (Rod end)

1шт.

16

D28364

PISTON

- split (Bolt end)

1шт.

33193

PACKING ASSY. - piston

1шт.

Part of P/N G32295 Cylinder Repair Seal Kit

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - packing, center bearing

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston ret. (3/4 x 2-1/2" N.F. hex.)

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

G32295

GASKET KIT

SEAL KIT cylinder repair, Includes: Ref. 6 - 7, 9 - 10 and P/N G33193

1шт.
