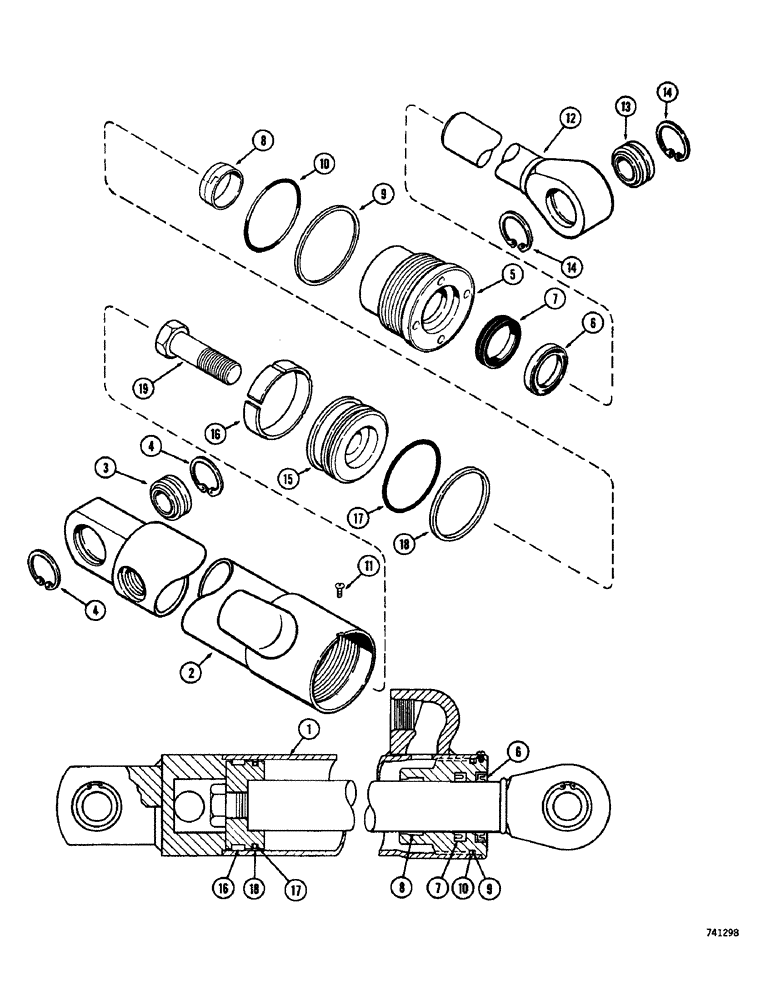

Запчасти Case 26 (110) - G33128 3-POINT HITCH PITCH CYLINDER, GLAND HAS SOLID OUTER ROD WIPER-NO IDENTIFICATION RING

1

G33128

JACK BODY

CYLINDER ASSY., pitch, 2-1/2" dia. x 7" stroke, gland has solid outer rod wiper and no ID ring, Includes: Ref. 2 - 19

1шт.

2

G33129

TUBE,14.69" L

ASSY. - cylinder body, Includes: Ref. 3 and 4

1шт.

3

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- tube (Self aligning)

1шт.

4

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, bushing

2шт.

G33578

GLAND

ASSY., Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod, outer (1-1/4 x 1-3/4 x 5/16")

1шт.

Part of P/N G33141 Cylinder Repair Seal Kit

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod (1-1/4 x 1-3/4 x 13/32")

1шт.

Part of P/N G33141 Cylinder Repair Seal Kit

1шт.

8

D27705

WIPER

- piston rod, inner

1шт.

Part of P/N G33141 Cylinder Repair Seal Kit

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- "O" ring back-up (Static)

1шт.

Part of P/N G33141 Cylinder Repair Seal Kit

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - (2-1/2 x 2-3/4 x 1/8") (Static)

1шт.

Part of P/N G33141 Cylinder Repair Seal Kit

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33134

ROD

ASSY. - piston (1-1/4" dia.), Includes: Ref. 13 and 14

1шт.

13

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- piston rod (Self aligning)

1шт.

14

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, bushing

2шт.

15

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

1шт.

16

G33139

RING

- wear, piston

1шт.

Part of P/N G33141 Cylinder Repair Seal Kit

1шт.

17

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" RING - piston (2 x 2-1/4 x 1/8")

1шт.

Part of P/N G33141 Cylinder Repair Seal Kit

1шт.

18

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- seal, piston (2-1/4 x 2-1/2 x 5/32" teflon)

1шт.

Part of P/N G33141 Cylinder Repair Seal Kit

1шт.

19

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston retaining Hex, 3/4-16 x 2", G8, Full Thd

1шт.

G33141

KIT

SEAL KIT cylinder repair, Includes: Ref. 6 - 10 and 16 - 18

1шт.
