Запчасти Case 26 (008) - LOADER LIFT FRAME AND RELATED PARTS, USED WITH SINGLE TILT CYLINDER ONLY

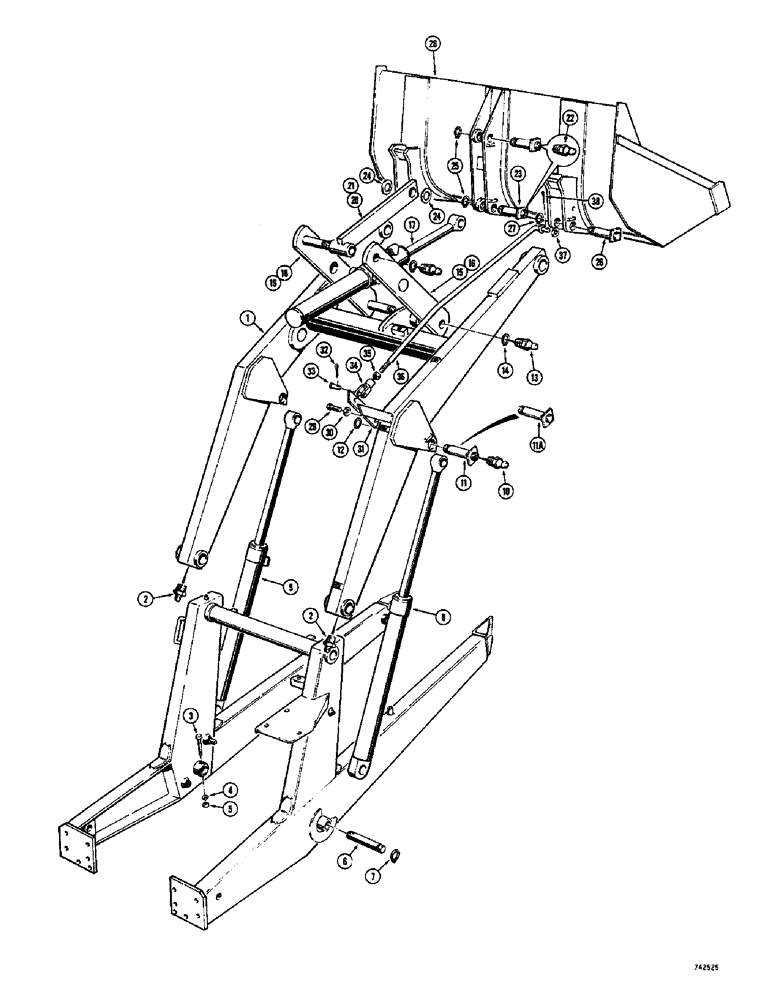

Схема запчастей Case 26 - (008) - LOADER LIFT FRAME AND RELATED PARTS, USED WITH SINGLE TILT CYLINDER ONLY

Артикул

Название

Примечание

Количество

1

D33399

FRAME - loader lift

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

3

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3/4"

2шт.

4

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

5

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

6

D44915

AXLE PIN

PIN - lift cylinder at subframe

2шт.

7

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

8

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. loader lift (2-1/2" dia. x 31-7/16" stroke) See fig. 102 and 104 for proper cylinder

1шт.

9

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. loader lift (2-1/2" dia. x 31-7/16" stroke) See fig. 102 and 104

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) If used

2шт.

11

D33410

PIN

- lift cylinder to lift frame (Used only with cylinder without grease fitting in rod eye) See fig. 102

2шт.

11a

D67356

PIN

- lift cylinder to lift frame (Used only with cylinder with grease fitting in rod eye) See fig. 102

2шт.

12

D25279

SNAP RING,M35, Int

RING - retaining, pin

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

14

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

15

D33374

LINK - tilt, R.H., Includes: Ref. 16

1шт.

16

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- tilt link

1шт.

17

REF

INSTRUCTION

CYLINDER - hydraulic, loader tilt (3" dia. x 20" stroke) See fig. 96 thru 98 for proper cylinder

1шт.

18

D33375

LINK - tilt, L.H., Includes: Ref. 19

1шт.

19

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

20

D36745

LINK - bucket, Includes: Ref. 21

1шт.

21

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

23

D33478

PIN - bucket to link and cylinder

2шт.

24

DR10004

WASHER

- spacer

2шт.

25

D25279

SNAP RING,M35, Int

RING - retaining, pin

2шт.

26

D33408

PIN - lift, Serial Range: frame-bucket

2шт.

27

D25279

SNAP RING,M35, Int

RING - retaining, pin

2шт.

28

REF

INSTRUCTION

BUCKET - loader (See fig. 12 for options)

1шт.

29

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Used with D33999 indicator only) Hex, 1/2"-13 x 2", G5

1шт.

29

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2" (Used with L43076 indicator only)

1шт.

30

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

31

D33999

INDICATOR - bucket position (Order L43076 indicator and 13-840 bolt for service)

1шт.

31

L43076

DRAG LINK

INDICATOR - bucket position

1шт.

32

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

33

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis 1/2" dia.

1шт.

34

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - indicator rod

1шт.

35

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, hex. (1/2" - 20 NF)

1шт.

36

D34000

ROD

- bucket position indicator

1шт.

37

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

38

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.
