Запчасти Case 26 (104) - D48506 AND D48507 LOADER LIFT CYLINDER, GLAND HAS SPLIT OUTER ROD WIPER-NO INDENTIFICATION RING

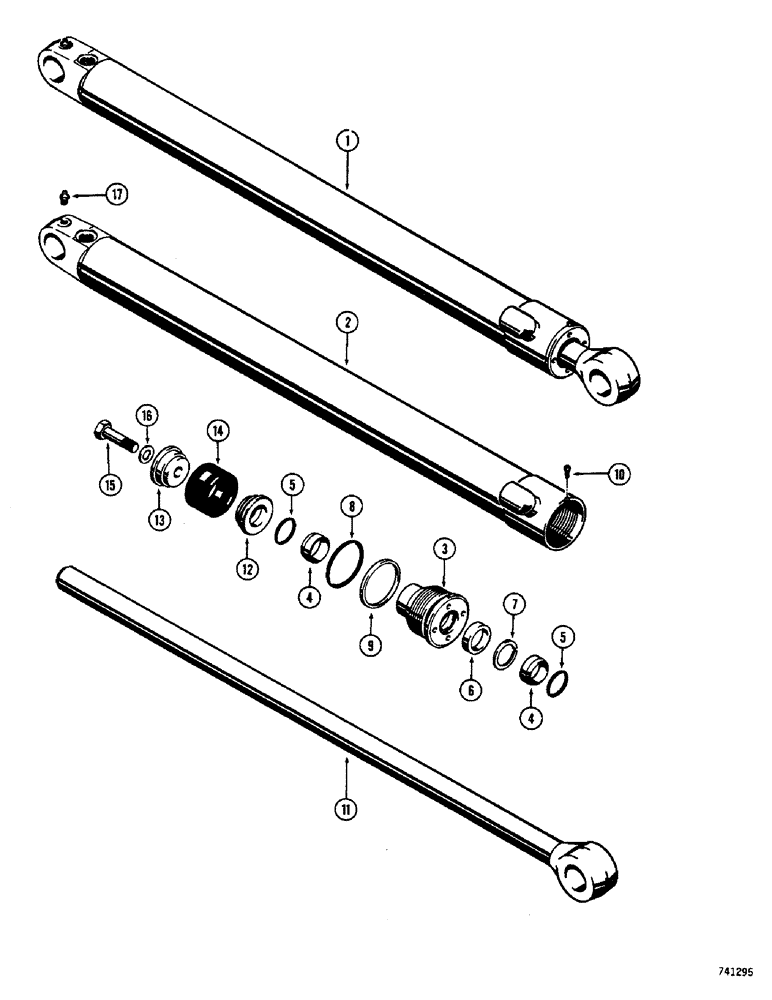

Схема запчастей Case 26 - (104) - D48506 AND D48507 LOADER LIFT CYLINDER, GLAND HAS SPLIT OUTER ROD WIPER-NO INDENTIFICATION RING

Артикул

Название

Примечание

Количество

1

D48506

CYLINDER ASSY. - lift, right hand (2-1/2" dia. x 31-7/16" stroke), Includes: Ref. 2 - 17

1шт.

1

D48507

CYLINDER ASSEMBLY - lift, left hand (2-1/2" dia. x 31-7/16" stroke), Includes: Ref. 2 - 17

1шт.

2

D49092

CYLINDER

TUBE - cyl. body, right hand

1шт.

2

D49093

CYLINDER

TUBE - cyl, body, left hand

1шт.

3

D45066

GLAND

- cylinder (Order G32733 assy,. see Figure 102)

1шт.

D42869

GASKET KIT

PACKING KIT - gland, Includes: Ref. 4 - 10

1шт.

4

D27706

WIPER SEAL

WIPER - piston rod, inner & outer

2шт.

5

D27878

O-RING,1.609" ID x 1.887" OD

"O" RING - wiper

2шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

7

D28498

RING

- piston seal back-up

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

9

D27856

RING

- "O" ring back-up

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

D33442

ROD

- piston (1-1/2" dia.)

1шт.

12

D28363

PISTON

- split (Rod end)

1шт.

13

D28364

PISTON

- split (Bolt end)

1шт.

14

D28373

PACKING

ASSY. - piston

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston, ret. (3/4 x 2-1/2" N.F. hex.)

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston ret. bolt

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

Выбрано товаров: 20
