Запчасти Case 26 (102) - G33413, G33414, G35002 AND G35003 LOADER TILT CYLINDERS GLAND HAS IDENTIFICATION RING

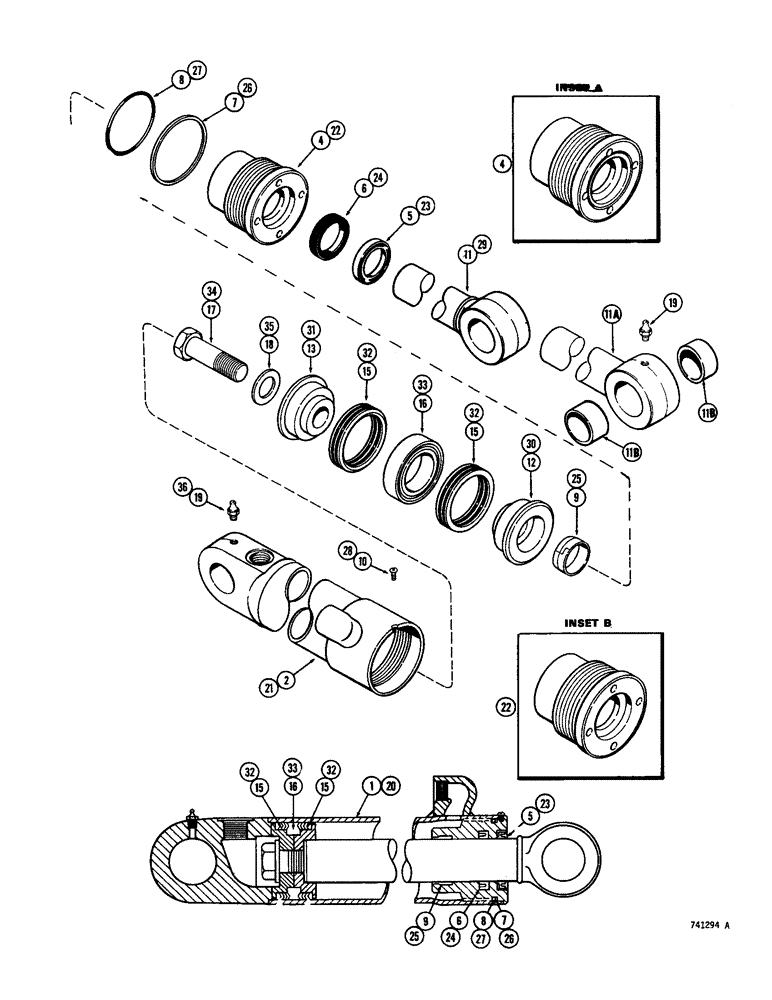

Схема запчастей Case 26 - (102) - G33413, G33414, G35002 AND G35003 LOADER TILT CYLINDERS GLAND HAS IDENTIFICATION RING

Артикул

Название

Примечание

Количество

1

G35002

CYLINDER

ASSEMBLY - lift, R.H. (2-1/2" dia. x 31-7/16" stoke) models without grease fitting in rod eye, gland has ID ring, Includes: Ref. 2 - 19

1шт.

1

G35003

CYLINDER

ASSEMBLY - lift, R.H. (2-1/2" dia. x 31-7/16" stroke) models with grease fitting in rod eye, gland has ID ring, Includes: Ref. 2 - 19

1шт.

1

G33414

CYLINDER

ASSEMBLY - lift, L.H. (2-1/2" dia. x 31-7/16" stroke) models without grease fitting in rod eye, gland has ID ring, Includes: Ref. 2 - 19

1шт.

1

G35003

CYLINDER

ASSEMBLY - lift, L.H. (2-1/2" dia. x 31-7/16" stroke) models with grease fitting in rod eye, gland has ID ring, Includes: Ref. 2 - 19

1шт.

2

D49092

CYLINDER

TUBE - cylinder body, right hand

1шт.

2

D49093

CYLINDER

TUBE - cyliner body, left hand

1шт.

G33487

GLAND

ASSY. - (See inset A), Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- "O"ring back-up (Static)

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - (2-1/2 x 2-3/4 x 1/8") (Static)

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33415

ROD

- piston (1-1/2" dia.) models without grease fitting in rod eye, Includes: Ref. 11B

1шт.

11a

G35001

ROD

- piston (1-1/2" dia.) models with grease fitting in rod eye, Includes: Ref. 11B

1шт.

11b

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod (Used in G35001 rod only)

2шт.

12

G33419

PISTON

- split (Rod end)

1шт.

13

D28364

PISTON

- split (Bolt end)

1шт.

G33193

PACKING

ASSY. - piston, Includes: Ref. 15 and 16

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center packing

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.)

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- retaining bolt (7/8 x 1-3/8 x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" NPT, straight)

1-2шт.

G32294

SEAL

KIT cylinder repair, Includes: Ref. 5 - 9 and P/N G33193, for G33413, G35002, G33414 and G35003 Cylinder Assy.

1шт.

20

G32127

CYLINDER

ASSEMBLY - lift, R.H. (2-1/2" dia. x 31-7/16" stroke), G32127 and G32128 loader, gland has solid outer rod wiper-no identification ring, Includes: Ref. 21 - 36

1шт.

20

G32128

CYLINDER

ASSEMBLY - lift, L.H. (2-1/2" dia. x 31-7/16" stroke), G32127 and G32128 loader, gland has solid outer rod wiper-no identification ring, Includes: Ref. 21 - 36

1шт.

21

D49092

CYLINDER

TUBE - cylinder body, R.H., G32127 and G32128 loader lift, gland has solid outer rod wiper-no identificatio ring

1шт.

21

D49093

CYLINDER

TUBE - cylinder body, L.H., G32127 and G32128 loader lift, gland has solid outer rod wiper-no identification ring

1шт.

G32733

GLAND

ASSY. - (See inset B), G32127 and G32128 loader lift cylinder has solid outer rod wiper-no identification ring, Includes: Ref. 22 - 27

1шт.

22

NSS

NOT SOLD SEPARAT

GLAND, G32127 and G32128 loader lift cylinder has solid outer rod wiper-no identification ring

1шт.

23

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2" x 2" x 5/16"), G32127 and G32128 loader lift cylinder gland has solid, no identification ringt

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

24

D36969

CUP

SEAL - piston rod (1-1/2" x 2" x 13/32"), G32127 and G32128 loader lift cylinder gland has solid outer wiper-no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

25

D27706

WIPER SEAL

WIPER - piston rod, inner, G32127 and G32128 loader lift cylinder gland has solid outer, no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

26

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- "O"ring back-up (Static), G32127 and G32128 loader lift cylinder gland has solid outer rod wiper-no identification

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

27

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - 2-1/2" x 2-3/4" x 1/8" (Static), G32127 and G32128 loader lift cylinder gland has solid outer rod wiper-no identification

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

28

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock )#8 - 32 NC x 1/4" self tapping), G32127 and G32128 load lift cylinder has solid outer rod wiper-no identification ring

1шт.

29

D33442

ROD

- piston (1-1/2" dia.), G32127 and G32128 loader lift cylinder gland has solid outer wiper-no identification ring

1шт.

30

D28363

PISTON

- split (Rod end), G32127 and G32128 loader lift cylinder gland has solid outer wiper-no identification ring

1шт.

31

D28364

PISTON

- plit (Bolt end), G32127 and G32128 loader lift cylinder gland has solid outer rod wiper-no identification ring

1шт.

G33193

PACKING

ASSY. - piston, G32127 and G32128 loader lift cylinder gland has solid outer rod wiper-no identification ring, Includes: Ref. 32 and 33

1шт.

Part of Cylinder Repair Seal Kit P/N G32294

1шт.

32

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type, G32127 and G32128 loader lift cylinder gland has solid outer rod wiper-no identification ring

2шт.

33

NSS

NOT SOLD SEPARAT

RING - center packing, G32127 and G32128 loader lift cylinder gland has solid outer rod wiper-no identification

1шт.

34

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4" x 2-1/2" NF, hex.), G32127 and G32128 loader lift cylinder gland has solild outer rod wiper-no identification ring

1шт.

35

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- retainging bolt (7/8" x 1-3/8" x 9/64"), G32127 and G32128 loader lift cylinder gland has solid outer rod wiper-no identification ring

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" NPT, straight), G32127 and G32128 loader lift cylinder gland has solild outer rod wiper-no identification ring

1шт.

G32294

SEAL

KIT cylinder repair, Includes: Ref. 23 - 27 and P/N G33193, for G32127 and G32128 Cylinder assy.

1шт.

Выбрано товаров: 60
