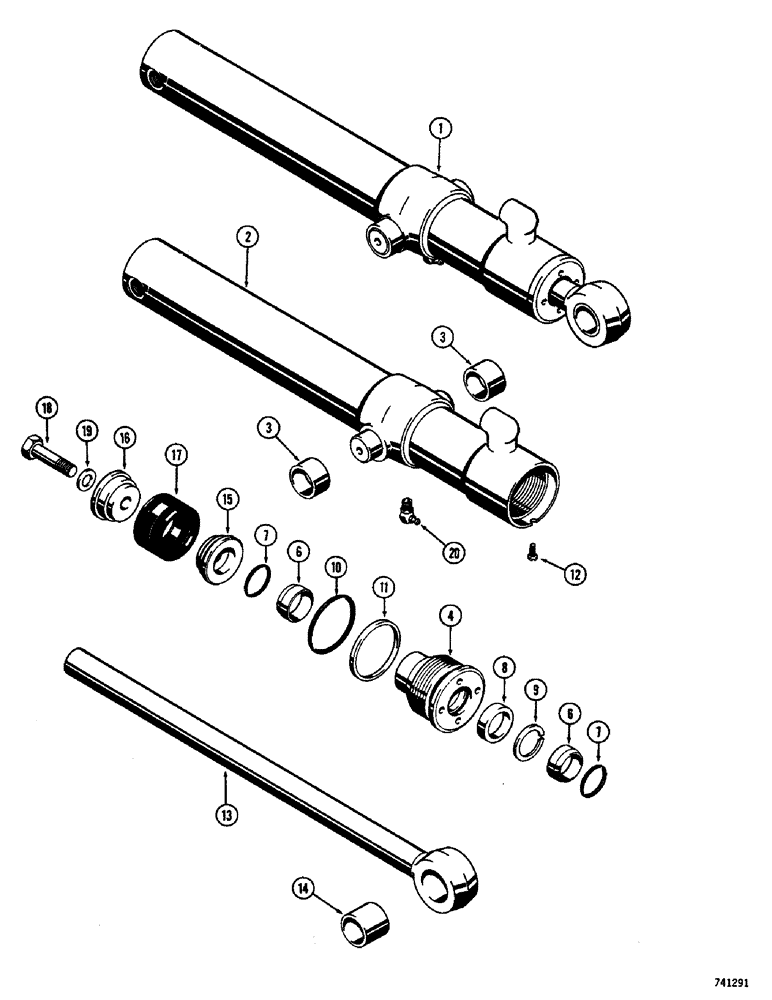

Запчасти Case 26 (098) - D36751 LOADER SINGLE TILT CYLINDER, GLAND HAS SPLIT OUTER ROD WIPER-NO IDENTIFICATION RING

1

D36751

CYLINDER ASSY. - tilt (3" dia. x 20" stroke), Includes: Ref. 2 - 20

1шт.

2

D3438

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

4

D45067

GLAND

- (Order G32734 assy., see Figure 97A)

1шт.

D42970

PACKING KIT - gland, Includes: Ref. 7 - 12

1шт.

6

D27706

WIPER SEAL

WIPER - piston rod, inner & outer

2шт.

7

D27878

O-RING,1.609" ID x 1.887" OD

"O" RING - wiper seal

2шт.

8

D36969

CUP

SEAL - piston rod (1-1/2 x 2 13/32")

1шт.

9

D28498

RING

- seal back-up

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - (3 x 3-1/4 x 1/8") (Static)

1шт.

11

D28049

RING

- "O" ring back-up

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

D32146

ROD

ASSY. - piston (1-1/2" dia.)

1шт.

14

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rod

1шт.

15

D28365

PISTON

- split (Rod end)

1шт.

16

D28366

PISTON

- split (Bolt end)

1шт.

17

G33151

PACKING

ASSY. - piston (Replaces D28374)

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
